> EATON - MOELLER>Auxiliares de controle e sinalização >M22S-DRL-R 216947 M22S-DRL-RQ ELECTRIC M22S-DRL-RQ botão de brilho ondulado, Interlock, Vermelho
Produto anterior Próximo produto

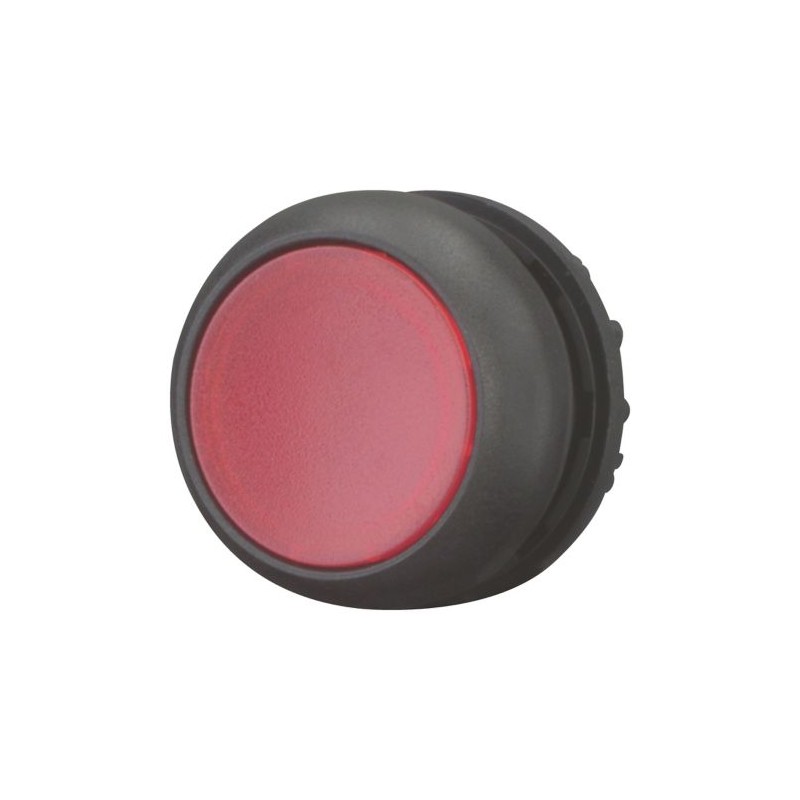

M22S-DRL-R 216947 M22S-DRL-RQ EATON ELECTRIC M22S-DRL-RQ botão de brilho ondulado, Interlock, Vermelho Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

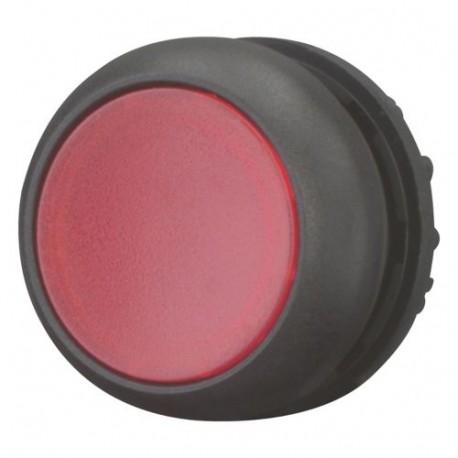

M22S-DRL-R 216947 M22S-DRL-RQ EATON ELECTRIC M22S-DRL-RQ botão de brilho ondulado, Interlock, Vermelho

M22S-DRL-R

216947

M22S-DRL-RQ

EATON-MOELLER

5

M22S-DRL-RQ botão de brilho ondulado, Interlock, Vermelho

Botão Iluminado Flush 22 mm Interlocked Red Ring Preto

Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, Flush, maintained, red, Blank, Bezel: black

Mais detalhes


Disjuntores de baixa tensão > Elemento frontal para botão de pressão

Auxiliares de controle e sinalização

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $65.71
Preço unitário: $13.14

Quantidade Preço
5+$13.14
15+$11.75
30+$10.67
40+$10.34
55+$10.08
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

geralmente comprados juntos

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
216947
EAN
4015082169473
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.012 kg
Certifications
CE
UL Category Control No.: NKCR
CSA File No.: 012528
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
VDE 0660
UL File No.: E29184
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CSA
UL 508
IEC/EN 60947
UL
DNV
GL
LR
Model Code
M22S-DRL-R

Especificações do produto

Type
Illuminated pushbutton actuator
Actuator color
Red
Actuator function
Switching function latching
Maintained
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Front ring
Operating frequency
1800 Operations/h
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Connection to SmartWire-DT
Yes
With SWD-RMQ connections
Actuating force
5 N
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Force for positive opening - min
0 N
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Number of command positions
1
Opening diameter
22.5 mm
Opening height
0 mm
Rated operational current for specified heat dissipation (In)
0 A
Bezel color
Black
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Bezel material
Plastic
Design
Flush
Classical
Mounting position
As required
Degree of protection
IP66
IP69K
NEMA 12
NEMA 3R
NEMA 13
IP67
NEMA 4X
Degree of protection (front side)
IP67/IP69K
NEMA 4X
Inscription
Blank
Front element type
Flat
Functions
Stay-put/spring-return function can be changed on device
Lens type
Round
Lifespan, mechanical
1,000,000 Operations (AC operated)
Static heat dissipation, non-current-dependent Pvs
0 W
Width opening
0 mm
Product category
RMQ-Titan
Size
Front diameter: 29.7 mm
Suitable for
Illumination

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 23 Mbytes
M22S-DRL-R M22S-DRL-RQ 216947 EN_289241.pdf 3 Mbytes M22S-DRL-R M22S-DRL-RQ 216947 EN_289241.pdf
