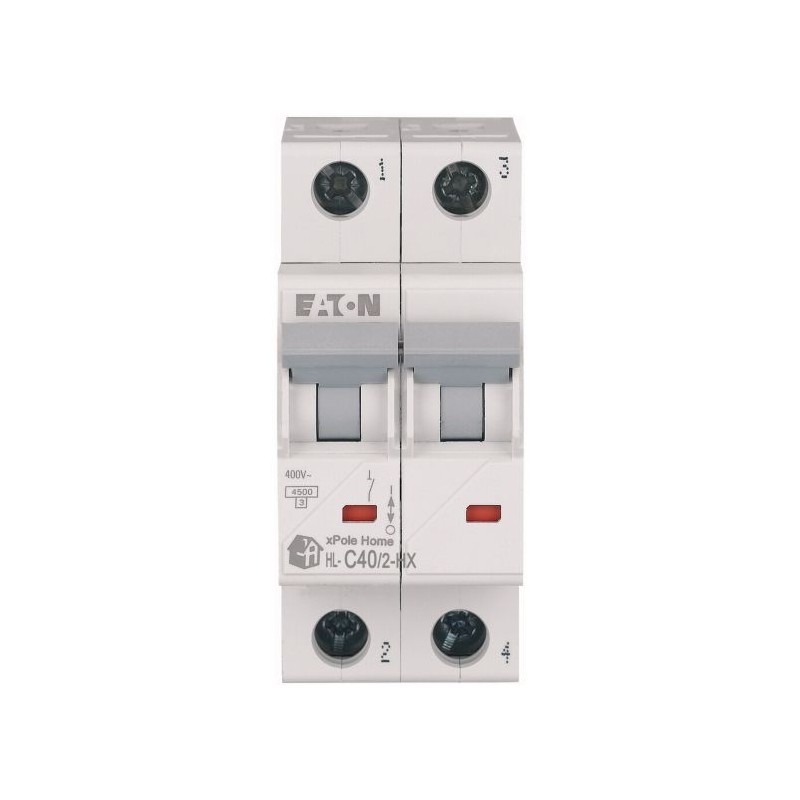

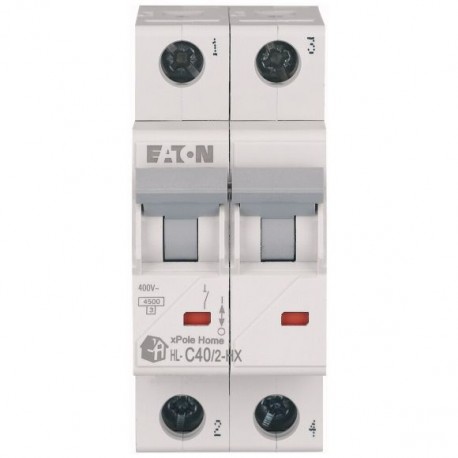

HN-C40/2 194875 Y7-194875 EATON ELECTRIC 194875 HN-C40/2
HN-C40/2
194875
Y7-194875
EATON-MOELLER
194875 HN-C40/2
Int. magnetotérmico Residencial, 2P, curva C, 40A
Eaton Moeller series xPole Home - HN/HN-HX MCB. HN, xPole Home, 2-pole, tripping characteristic: C, rated current In: 40 A, rated switching capacity IEC/EN 60898-1: 6 kA
Disjuntor miniatura (MCB), HN, xPole Home, 2 polos, característica de disparo: C, corrente nominal In: 40 A, capacidade nominal de comutação de acordo com IEC/EN 60898-1: 6 kA, Comutadores para aplicações residenciais e comerciais
Disjuntores, fusíveis > Interruptor magnetotérmico
Modular para habitação
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
geralmente comprados juntos
▲Best sellers
▲Mais informação
▲General specifications
| Product Name | Eaton Moeller series xPole Home - HN/HN-HX MCB |
| Catalog Number | 194875 |
| EAN | 9010238063594 |
| Product Length/Depth | 85 mm |
| Product Height | 73 mm |
| Product Width | 35.4 mm |
| Product Weight | 0.24 kg |
| Compliances | RoHS conform |
| Model Code | HN-C40/2 |
Delivery program
| Application |
|
| Number of poles | Two-pole |
| Number of poles (total) | 2 |
| Number of poles (protected) | 2 |
| Tripping characteristic | C |
| Release characteristic | C |
| Amperage Rating | 40 A |
| Type |
|
Technical Data - Electrical
| Voltage type | AC |
| Rated operational voltage (Ue) - max | 230 V |
| Rated insulation voltage (Ui) | 440 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Frequency rating - min | 50 Hz |
| Frequency rating - max | 60 Hz |
| Rated switching capacity (IEC/EN 60898-1) | 6 kA |
| Overvoltage category | III |
| Pollution degree | 3 |
Technical Data - Mechanical
| Width in number of modular spacings | 2 |
| Built-in depth | 44 mm |
| Degree of protection | IP20 |
| Connectable conductor cross section (solid-core) - min | 1 mm² |
| Connectable conductor cross section (solid-core) - max | 25 mm² |
| Connectable conductor cross section (multi-wired) - min | 1 mm² |
| Connectable conductor cross section (multi-wired) - max | 25 mm² |
Design verification as per IEC/EN 61439 - technical data
| Rated operational current for specified heat dissipation (In) | 40 A |
| Heat dissipation per pole, current-dependent | 0 W |
| Equipment heat dissipation, current-dependent | 7.5 W |
| Static heat dissipation, non-current-dependent | 0 W |
| Heat dissipation capacity | 0 W |
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 75 °C |
Design verification as per IEC/EN 61439
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
Additional information
| Current limiting class | 3 |
| Features | Additional equipment possible |
| Special features | Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity |
| Suitable for | Flush-mounted installation |
| Used with | Miniature circuit breaker HN |
| Característica | Valor |
|---|---|
| Profundidade incorporada (EF000218) | 44 mm |
| Curva de funcionamento (EF000889) | C |
| Número de polos (total) (EF008618) | 2 |
| Número de polos protegidos (EF005548) | 2 |
| Corrente nominal especificada (EF000227) | 40 A |
| Tensão especificada de funcionamento (EF000228) | 230 V |
| Tensão nominal de isolamento Ui (EF001366) | 440 V |
| Tensão estipulada suportável ao choque (Uimp) (EF011980) | 4 kV |
| Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 230 V (EF009556) | 6 kA |
| Tipo de tensão (EF000187) | AC |
| Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 400 V (EF009555) | 6 kA |
| Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 em 230 V (EF009557) | 0 kA |
| Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 a 400 V (EF009558) | 0 kA |
| Frequência (intervalo) (EF000416) | 50 Hz |
| Potência dissipada (EF005387) | 7.5 W |
| Classe de limitação de energia (I²t) (EF002568) | 3 |
| Instalação à face (EF007517) | Sim |
| Comutação simultânea de neutro N (EF005997) | Não |
| Categoria de sobretensão (EF002569) | 3 |
| Grau de poluição (EF002570) | 3 |
| Possibilidade de equipamento adicional (EF008148) | Sim |
| Largura em número de módulos (EF002950) | 2 |
| Grau de proteção (IP) (EF005474) | IP20 |
| Temperatura ambiente durante a operação (EF007515) | -25 °C |
| Secção da ligação de cabo flexível (EF007343) | 1 mm² |
| Secção da ligação de cabo rígido (EF007337) | 1 mm² |
| Antideflagrante (EF004663) | Não |
