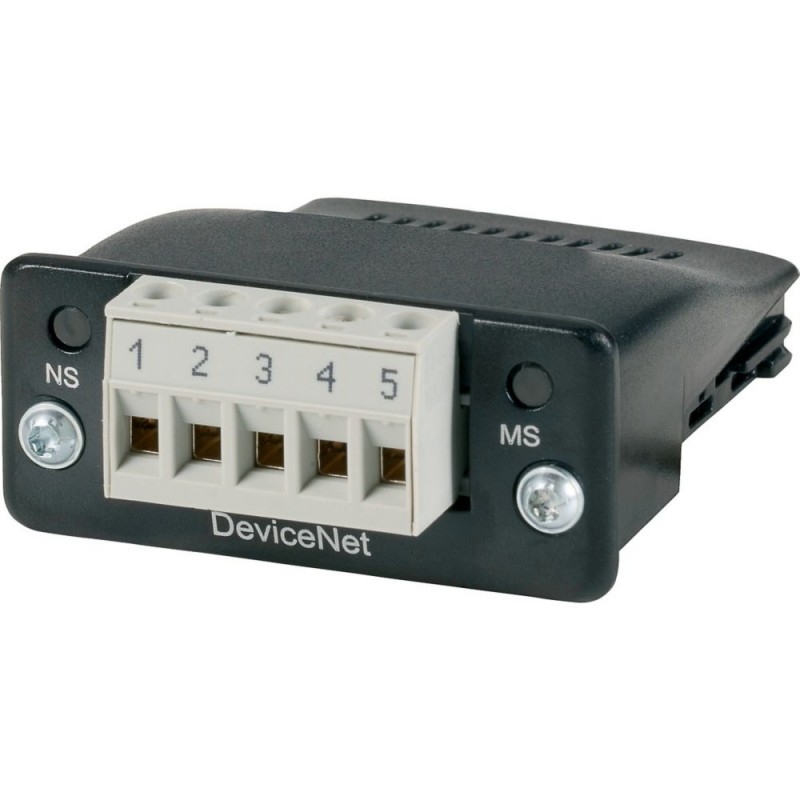

EATON - MOELLER DX-NET-DEVICENET 169123 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

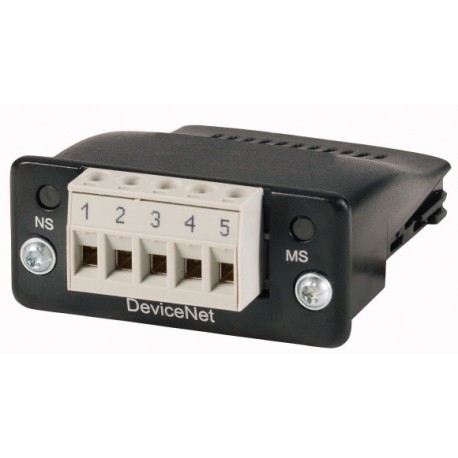

DX-NET-DEVICENET 169123 EATON ELECTRIC INTERFACE DEVICENET

Referência: DX-NET-DEVICENET

Código: 169123

Fabricante: EATON - MOELLER

Descrição:

INTERFACE DEVICENET
Módulo de comunicação; DeviceNet; Para DA1
Módulo de comunicação DeviceNet para inversores de frequência variável DA1
Módulo de barramento de campo, Protocolo de barramento: DeviceNet, Para uso com: DA1, Tecnologia de conexão: Módulo plug-in com terminais plug-in, 6 polos

Categorias:

  • Aparelhos elétricos de baixa tensão > Acessórios para reguladores de frequência
  • EATON - MOELLER > Conversores de Frequência Power XL

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

* Este artigo pode estar obsoleto. Se você estiver interessado, insira seu e-mail e informaremos se há unidades disponíveis. Caso não existam mais, um dos nossos técnicos procurará uma alternativa fornecivel com características semelhantes.

Solicite um orçamento e verificaremos a disponibilidade das unidades. Caso não estejam disponíveis, um dos nossos técnicos procurará uma solução alternativa.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton DX fieldbus module
Catalog Number
169123
EAN
4015081656035
Product Length/Depth
51.8 mm
Product Height
22.3 mm
Product Width
50.1 mm
Product Weight
0.03 kg
Certifications
IEC/EN61800-3
UL report applies to both US and Canada
UL
CE
IEC/EN61800-5
UL Category Control No.: NMMS, NMMS7
UL File No.: E172143
CSA-C22.2 No. 14
UL 508C
Certified by UL for use in Canada
Model Code
DX-NET-DEVICENET

Especificações do produto

Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Accessory/spare part type
Communication module
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-10 °C
Connection type
Plug-in connection
Degree of protection
IP00
Protocol
DeviceNet
Suitable for
Branch circuits, (UL/CSA)

ETIM for 169123 Componentes industriais para Baixa Tensão (EC002025)

Nome da característicaTipo de acessório/peça de reposição (EF000215)
Valor da característicaMódulo de comunicação
Nome da característicaAcessório (EF013236)
Valor da característicaSim
Nome da característicaPeça de substituição (EF013237)
Valor da característicaNão
