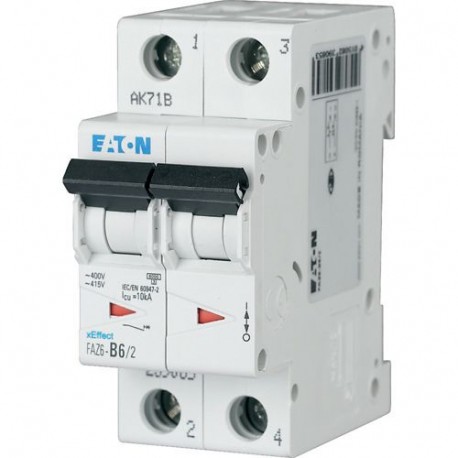

FAZ6-D1,6/2 177566 Y7-177566 EATON ELECTRIC Magentothermal FAZ6, 2 P, 1.6 A, curva D, 6/10kA Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

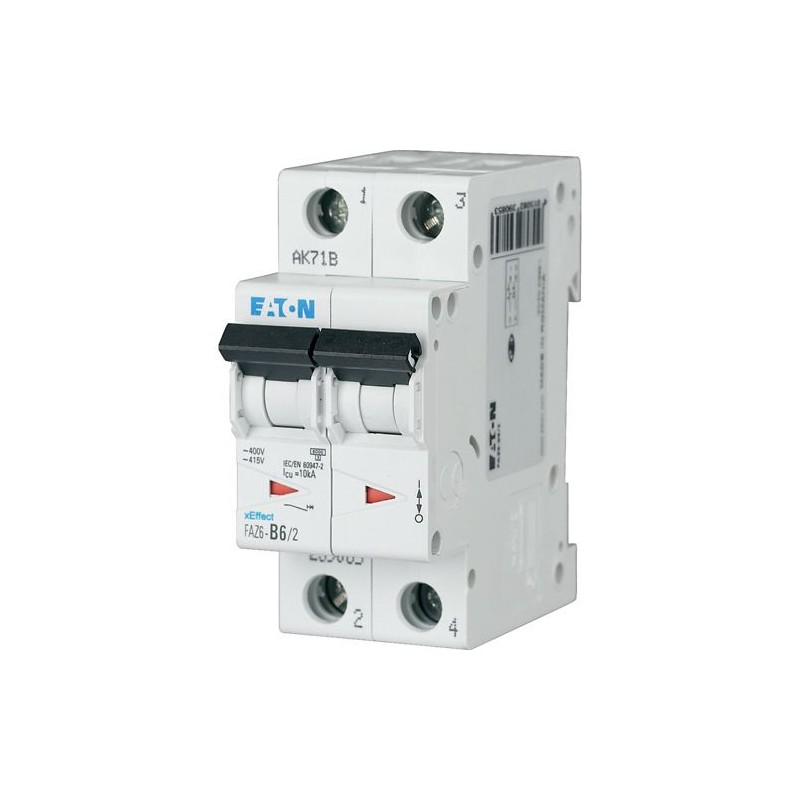

FAZ6-D1,6/2 177566 Y7-177566 EATON ELECTRIC Magentothermal FAZ6, 2 P, 1.6 A, curva D, 6/10kA

FAZ6-D1,6/2

177566

Y7-177566

EATON-MOELLER

Magentothermal FAZ6, 2 P, 1.6 A, curva D, 6/10kA

FAZ6-D1,6/2. Miniature circuit breaker (MCB), 1.6 A, 2p, characteristic: D, 6 kA

Disjuntor miniatura de alta qualidade para aplicações industriais e residenciais, vermelho - indicador de posição de contato verde, guia para uma conexão segura do terminal, captador de deslizamento triestável - permite a remoção do sistema de barramento existente, ampla gama de acessórios adequados para instalação posterior, correntes nominais até 63 A, características de viagem B, C, D

Mais detalhes


Disjuntores, fusíveis > Interruptor magnetotérmico

Aparelhagem Modular - Terciário

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $90.49
Preço unitário: $90.49
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller series xEffect - FAZ6 MCB
Catalog Number
177566
EAN
4015081720262
Product Length/Depth
72.6 mm
Product Height
80 mm
Product Width
36 mm
Product Weight
0.23 kg
Compliances
RoHS conform
Model Code
FAZ6-D1,6/2

Programa de entrega

Number of poles (total)
2
Number of poles (protected)
2
Release characteristic
D
Amperage Rating
1.6 A

Dados técnicos - elétricos

Voltage type
AC
Voltage rating (IEC/EN 60898-1)
415 V
Voltage rating (IEC/EN 60947-2)
400
Rated operational voltage (Ue) - max
400 V
Operational voltage (IEC/EN 60947-2) - max
400 V
Operational voltage at DC (EC/EN 60947-2) - max
60 V
Rated insulation voltage (Ui)
440 V
Rated impulse withstand voltage (Uimp)
4 kV
Frequency rating - min
50 Hz
Frequency rating - max
60 Hz
Rated switching capacity (IEC/EN 60947-2)
7.5 kA
Rated service short-circuit breaking capacity (IEC/EN 60898-1)
6 kA
Rated service short-circuit breaking capacity (IEC/EN 60947-2)
10 kA
Rated short-circuit breaking capacity (EN 60898) at 230 V
6 kA
Rated short-circuit breaking capacity (EN 60898) at 400 V
6 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 230 V
10 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 400 V
10 kA
Overvoltage category
III
Pollution degree
2

Dados técnicos - mecânicos

Width in number of modular spacings
2
Built-in depth
70.5 mm
Degree of protection
IP20
Connectable conductor cross section (solid-core) - min
1 mm²
Connectable conductor cross section (solid-core) - max
25 mm²
Connectable conductor cross section (multi-wired) - min
1 mm²
Connectable conductor cross section (multi-wired) - max
25 mm²

Verificação do design de acordo com a norma IEC/EN 61439 - dados técnicos

Rated operational current for specified heat dissipation (In)
1.6 A
Equipment heat dissipation, current-dependent
2.5 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
75 °C

Verificação do design de acordo com a norma IEC/EN 61439

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Informações adicionais

Current limiting class
3
Features
Additional equipment possible

ETIM for 177566 Circuit breakers and fuses (EC000042)
Característica Valor
Built-in depth (EF000218) 70.5 mm
Release characteristic (EF000889) D
Number of poles (total) (EF008618) 2
Number of protected poles (EF005548) 2
Rated current (EF000227) 1.6 A
Rated voltage (EF000228) 400 V
Rated insulation voltage Ui (EF001366) 440 V
Rated impulse withstand voltage Uimp (EF011980) 4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (EF009556) 6 kA
Voltage type (EF000187) AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (EF009555) 6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (EF009557) 10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (EF009558) 10 kA
Frequency (EF000416) 50 Hz
Power loss (EF005387) 2.6 W
Current limiting class (EF002568) 3
Flush-mounted installation (EF007517) false
Concurrently switching neutral conductor (EF005997) false
Over voltage category (EF002569) 3
Pollution degree (EF002570) 2
Additional equipment possible (EF008148) true
Width in number of modular spacings (EF002950) 2
Degree of protection (IP) (EF005474) IP20
Ambient temperature during operating (EF007515) -25 °C
Connectable conductor cross section multi-wired (EF007343) 1 mm²
Connectable conductor cross section solid-core (EF007337) 1 mm²
Explosion-proof (EF004663) false
