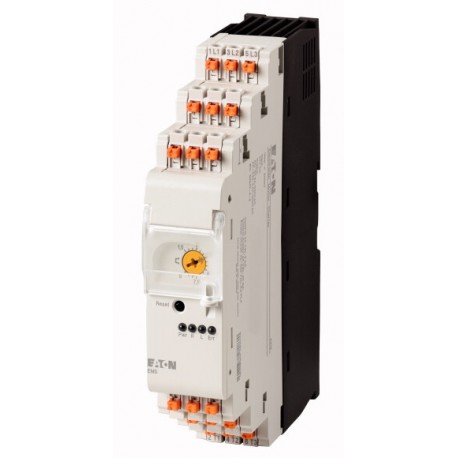

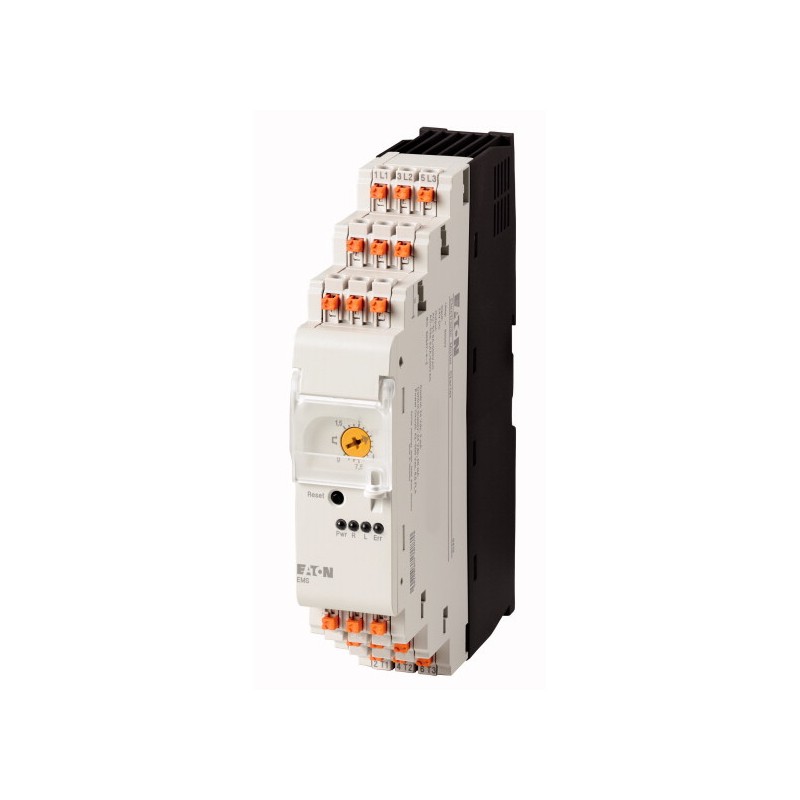

EMS-DO-T-9-24VDC 170100 EATON ELECTRIC arranque electrónico 3 kW (AC53a, 400V)
EMS-DO-T-9-24VDC
170100
EATON-MOELLER
arranque electrónico; 3 kW (AC53a, 400V)
Partida eletrônica; Partida direta; 9 UMA
Partida DOL, 24 V CC, 1,5 - 6,5 (AC-53a), 9 (AC-51) A, terminais axiais, PTB 13 ATEX 3003
Partida DOL, Tensão de acionamento: 24 V DC, Padrões: IEC/EN 60947-4-2, UL508
Aparelhos elétricos de baixa tensão > Combinação de acionador de partida de motor/motor de arranque
Arranques suaves padrão
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton Moeller® series EMS DOL starter
Catalog Number
170100
EAN
4015081665976
Product Length/Depth
160 mm
Product Height
60 mm
Product Width
155 mm
Product Weight
0.3 kg
Certifications
IEC/EN 60947-4-2
IEC/EN 61000-4-3
UL 508
UL Category Control No.: NLDX, NLDX7
CSA-C22.2 No. 14
UL File No.: E29096
IEC/EN 60947-5
IEC/EN 61000-4-2, Level 3
PTB 13 ATEX 3003
UL
Certified by UL for use in Canada
UL508
CE
UL report applies to both US and Canada
IEC/EN 61000-4-3
UL 508
UL Category Control No.: NLDX, NLDX7
CSA-C22.2 No. 14
UL File No.: E29096
IEC/EN 60947-5
IEC/EN 61000-4-2, Level 3
PTB 13 ATEX 3003
UL
Certified by UL for use in Canada
UL508
CE
UL report applies to both US and Canada
Model Code
EMS-DO-T-9-24VDC
Funcionalidades e Funções
Functions
Temperature compensated overload protection
External reset possible
Motor protection
DOL starting
External reset possible
Motor protection
DOL starting
Geral
Balance monitoring
If ≥ 67 %, pick-up time of 1.8 s, Magnitude Imax > Irated ((Imax - Imin)/Imax)
If ≥ 33 %, pick-up time of 120 s, Magnitude Imax > Irated ((Imax - Imin)/Imax)
If ≥ 67 %, pick-up time of 1.8 s, Magnitude Imax < Irated ((Imax - Imin)/Imax)
If ≥ 33 %, pick-up time of 120 s, Magnitude Imax < Irated ((Imax - Imin)/Imax)
If ≥ 33 %, pick-up time of 120 s, Magnitude Imax > Irated ((Imax - Imin)/Imax)
If ≥ 67 %, pick-up time of 1.8 s, Magnitude Imax < Irated ((Imax - Imin)/Imax)
If ≥ 33 %, pick-up time of 120 s, Magnitude Imax < Irated ((Imax - Imin)/Imax)
Class
CLASS 10 A (Ir > 4 A)
CLASS 10
CLASS 10 (Ir ≤ 4 A)
CLASS 10
CLASS 10 (Ir ≤ 4 A)
Connection to SmartWire-DT
No
Degree of protection
IP20
IP20 (according to IEC/EN 60529, EN 50178, VBG 4)
IP20 (according to IEC/EN 60529, EN 50178, VBG 4)
Lifespan, electrical
30,000,000 Operations
Model
Direct starter
Mounting method
Rail mounting possible
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Mounting position
Motor feeder at bottom
Vertical
Vertical
Operating frequency
7200 Operations/h (pulse pause time 50:50)
Overload release current setting - min
1.5 A
Overload release current setting - max
9 A
Overvoltage category
III
Pollution degree
2
Product category
Electronic motor starter
Rated impulse withstand voltage (Uimp)
6000 V AC
Recovery time
2 min (manual startup)
20 min (automatic restart)
20 min (automatic restart)
Residual ripple
≤ 5 % (input voltage)
Terminal capacity
1 x (0.75 - 2.5) mm², solid
2 x (0.75 - 1.5) mm², flexible, with twin ferrule
2 x (0.75 - 2.5) mm², flexible with ferrule
Minimum length 10 mm.
2 x (0.75 - 1.5) mm², flexible, with twin ferrule
2 x (0.75 - 2.5) mm², flexible with ferrule
Minimum length 10 mm.
Terminal capacity (AWG)
1 x (20 - 14), solid
1 x (20 - 14), flexible with ferrule
2 x (20 - 16), flexible with twin ferrule
1 x (20 - 14), flexible with ferrule
2 x (20 - 16), flexible with twin ferrule
Type
DOL starter (complete device)
Voltage type
DC
Condições meteorológicas
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
80 °C
Environmental conditions
Condensation: prevent with appropriate measures
Designed for operation in industrial environments. The use in residential environments could cause electrical interference so that addition suppression must be planned.
Designed for operation in industrial environments. The use in residential environments could cause electrical interference so that addition suppression must be planned.
Compatibilidade eletromagnética
Air discharge
8 kV
Burst impulse
According to IEC/EN 61000-4-4, level 3
2 kV
2 kV
Contact discharge
6 kV
Electromagnetic fields
10 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
10 V/m at 800 - 1000 MHz (according to IEC EN 61000-4-3)
3 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3)
10 V/m at 800 - 1000 MHz (according to IEC EN 61000-4-3)
3 V/m at 2.0 - 2.7 GHz (according to IEC EN 61000-4-3)
Immunity to line-conducted interference
10 V (according to IEC/EN 61000-4-6)
Radio interference class
Class A (EN 61000-6-3, emitted interference, radiated)
Class A (EN 55011, emitted interference, line-conducted)
Class A (EN 55011, emitted interference, line-conducted)
Surge rating
1 kV, symmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
2 kV, asymmetrical, power pulses (Surge), EMC
According to IEC/EN 61000-4-5, power pulses (Surge), EMC
2 kV, asymmetrical, power pulses (Surge), EMC
Classificação elétrica
Basic insulation
500 V AC, between feedback signal output and switch voltage according to IEC/EN60947-1
500 V AC, between supply voltage, control voltage and switch voltage according to IEC/EN60947-1
500 V AC, between supply voltage, control voltage and switch voltage according to IEC/EN60947-1
Input current
5 mA (Actuating circuit - ON, L, R)
40 mA (without feedback signal)
40 mA (without feedback signal)
Pick-up current
45 A (stall protection)
Pick-up time
2 s (stall protection)
Rated conditional short-circuit current (Iq), type 2, 380 V, 400 V, 415 V
0 A
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
24 V
Rated control supply voltage (Us) at DC - max
24 V
Rated operational current (Ie)
9 A
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
3 A
Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V
6.5 A
Rated operational current (Ie) at AC-51
9 A
Rated operational current (Ie) at AC-53A - max
6.5 A
Rated operational current (Ie) at AC-53A - min
1.2 A
Rated operational current (Ie) at DC-13, 24 V
2 A
Rated operational power at AC-3, 220/230 V, 50 Hz
1.5 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
3 kW
Rated operational power at AC-53A, 380/400 V, 50 Hz
3 kW
Rated operational voltage
250 V AC/DC
42 - 550 V
42 - 550 V
Short-circuit protection rating
15 kA, 415 V AC: PKM0-6,3, Short-circuit protective device, Type “1” coordination, Main conducting paths
50 kA, 415 V AC: PKM0-4, Short-circuit protective device, Type “1” coordination, Main conducting paths
50 kA, 500 V AC: Fuse 16 A gG/gL, Short-circuit protective device, Type “1” coordination, Main conducting paths
50 kA, 415 V AC: PKM0-4, Short-circuit protective device, Type “1” coordination, Main conducting paths
50 kA, 500 V AC: Fuse 16 A gG/gL, Short-circuit protective device, Type “1” coordination, Main conducting paths
Supply voltage
A1 - A2: 24 V DC (-20 - +25 %), UAUX, Control section, Input data
Switching level
19.2 - 30 V DC, Switching level "High", Actuating circuit (ON, L, R)
-3 - 9.6 V DC, Switching level "Low", Actuating circuit (ON, L, R)
< 5 V DC, Switching level "confirm Off", Actuating circuit (ON, L, R)
-3 - 9.6 V DC, Switching level "Low", Actuating circuit (ON, L, R)
< 5 V DC, Switching level "confirm Off", Actuating circuit (ON, L, R)
Contactos
Number of auxiliary contacts (normally closed contacts)
1
Number of auxiliary contacts (normally open contacts)
1
Number of contacts (change-over contacts)
1
Segurança
Explosion safety category for dust
ATEX dust-ex-protection, II (2) G [Ex e] [Ex d] [Ex px]
ATEX dust-ex-protection, II (2) D [Ex t] [Ex p]
ATEX dust-ex-protection, II (2) D [Ex t] [Ex p]
Safe isolation
300 V AC; Between supply, control, and switching voltages; According to EN50178
300 V AC, Between feedback signal output and switch voltage, According to EN 50178
500 V AC, Between feedback signal output and switch voltage, According to EN 50178
500 V AC; Between supply, control, and switching voltages; According to EN50178
300 V AC, Between feedback signal output and switch voltage, According to EN 50178
500 V AC, Between feedback signal output and switch voltage, According to EN 50178
500 V AC; Between supply, control, and switching voltages; According to EN50178
Safety parameter (EN ISO 13849-1)
316 years; MTTFD
Safety parameter (IEC 62061)
SIL: 2
Λdu [FIT]: 47.2
97.9 %, SFF
Λsd [FIT]: 0
Λsu [FIT]: 1550
86,9 %, DC
Λdd [FIT]: 314
Λdu [FIT]: 47.2
97.9 %, SFF
Λsd [FIT]: 0
Λsu [FIT]: 1550
86,9 %, DC
Λdd [FIT]: 314
Verificação do design
Equipment heat dissipation, current-dependent Pvid
6.3 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
2.1 W
Rated operational current for specified heat dissipation (In)
6.5 A
Static heat dissipation, non-current-dependent Pvs
1 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Tipo de arranque de motor (EF009598) | Arranque direto |
| Com disparo de curto-circuito (EF006691) | Não |
| Tensão de alimentação de corrente nominal de 50 Hz AC (EF003978) | 0 V |
| Tensão de alimentação de corrente nominal de 60 Hz CA (EF003979) | 0 V |
| Tensão de alimentação de corrente nominal DC (EF003980) | 24 V |
| Tipo de tensão para atuação (EF008242) | DC |
| Potência de operação nominal em AC-3, 230 V, trifásica (EF009599) | 1.5 kW |
| Potência de operação nominal em AC-3, 400 V (EF001364) | 3 kW |
| Potência nominal, 460 V, 60 Hz, trifásica (EF009600) | 2.2 kW |
| Potência nominal, 575 V, 60 Hz, trifásica (EF009601) | 0 kW |
| Corrente nominal de operação Ie (EF001443) | 9 A |
| Corrente nominal de operação em AC-3, 400 V (EF009602) | 6.5 A |
| Configuração de corrente da proteção contra sobrecargas (EF002336) | 1.5 A |
| Corrente nominal de curto-circuito condicional, tipo 1, 480 Y/277 V (EF009607) | 0 A |
| Corrente nominal de curto-circuito condicional, tipo 1, 600 Y/347 V (EF009608) | 0 A |
| Corrente nominal de curto-circuito condicional, tipo 2, 230 V (EF009606) | 0 A |
| Corrente nominal de curto-circuito condicional, tipo 2, 400 V (EF009605) | 0 A |
| Número de contatos auxiliares como contato normalmente aberto (EF001376) | 1 |
| Número de contatos auxiliares como contato normalmente fechado (EF001377) | 1 |
| Temperatura ambiente, limite superior de operação (EF009603) | 40 °C |
| Proteção contra sobrecarga de temperatura compensada (EF009604) | Sim |
| Classe de engate/gatilho (EF006668) | CLASSE 10 |
| Tipo de conexão elétrica do circuito principal (EF006819) | Conexão por terminal de mola |
| Tipo de conexão elétrica para circuito de corrente auxiliar e de controlo (EF006979) | Conexão por terminal de mola |
| Possível montagem em calha (EF003972) | Sim |
| Com transformador (EF000278) | Não |
| Número de posições de comando (EF001372) | 0 |
| Adequado para paragem de emergência (EF001433) | Não |
| Classe de coordenação de acordo com IEC 60947-4-3 (EF012390) | Classe 1 |
| Número de luzes indicadoras (EF001965) | 4 |
| Possível reinicialização externa (EF003426) | Sim |
| Com fusível (EF006693) | Não |
| Grau de proteção (IP) (EF005474) | IP20 |
| Suporta o protocolo TCP/IP (EF003050) | Não |
| Suporta o protocolo PROFIBUS (EF003052) | Não |
| Suporta o protocolo CAN (EF003053) | Não |
| Suporta o protocolo INTERBUS (EF003054) | Não |
| Suporta o protocolo ASI (EF003051) | Não |
| Suporta o protocolo MODBUS (EF003057) | Não |
| Suporta o protocolo Data-Highway (EF003058) | Não |
| Suporta o protocolo DeviceNet (EF003059) | Não |
| Suporta o protocolo SUCONET (EF003060) | Não |
| Suporta protocolo LON (EF003017) | Não |
| Suporta o protocolo PROFINET IO (EF007525) | Não |
| Suporta o protocolo PROFINET CBA (EF007524) | Não |
| Suporta o protocolo SERCOS (EF006657) | Não |
| Suporta o protocolo o Foundation Fieldbus (EF007522) | Não |
| Suporta o protocolo Ethernet/IP (EF007521) | Não |
| Protocolo de suporte à segurança da interface AS no trabalho (EF007519) | Não |
| Suporta o protocolo DeviceNet Safety (EF007520) | Não |
| Suporta o protocolo INTERBUS-Safety (EF006662) | Não |
| Suporta o protocolo PROFIsafe (EF007526) | Não |
| Suporta o protocolo SafetyBUS p (EF007527) | Não |
| Suporta o protocolo outros sistemas de barramento (EF003062) | Não |
| Largura (EF000008) | 155 mm |
| Altura (EF000040) | 60 mm |
| Profundidade (EF000049) | 160 mm |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON EMS EN.pdf | 1 Mbytes |
|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EMS-DO-T-9-24VDC EMS-DO-T-9-24VDC 170100 ES_172741.pdf | 376 Kbytes |
|
Avaliações: (0) ▲
Não há comentários do produto ainda.
Adicionar avaliação
ocultar formulário
| Avaliação: |
|
| Nome: | |
| Email: | |
| Título: | |
| Opinión: | |
| Você recomendaria esse produto para comprar? | |
|
|
|
| Adicionar avaliação | |
Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
