> EATON - MOELLER>Auxiliares de controle e sinalização >M22-PVS60P-MS1 121469 M22-PVS60P-MS1Q ELECTRIC Emergency switching off, 60mm, key unlocking, MS1
Produto anterior Próximo produto

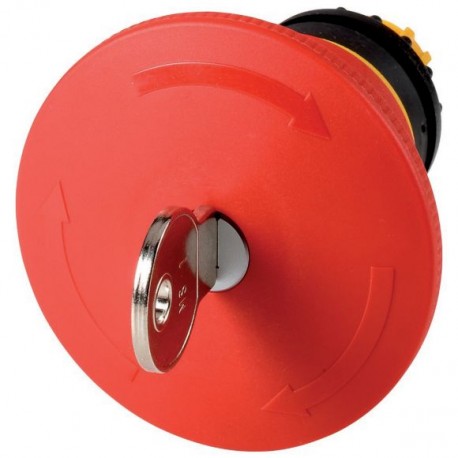

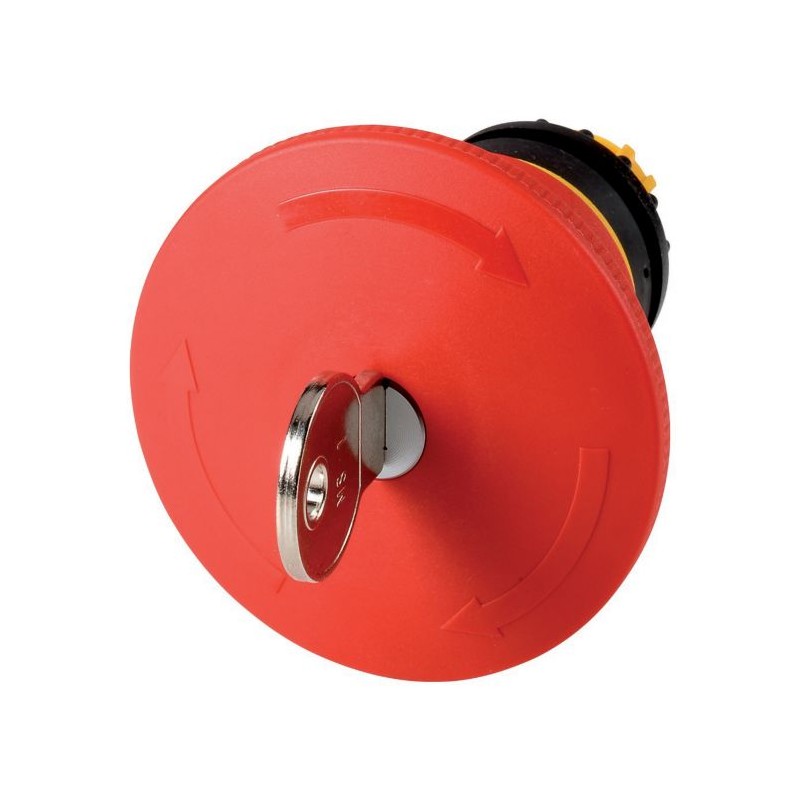

M22-PVS60P-MS1 121469 M22-PVS60P-MS1Q EATON ELECTRIC Emergency switching off, 60mm, key unlocking, MS1 Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

M22-PVS60P-MS1 121469 M22-PVS60P-MS1Q EATON ELECTRIC Emergency switching off, 60mm, key unlocking, MS1

M22-PVS60P-MS1

121469

M22-PVS60P-MS1Q

EATON-MOELLER

Emergency switching off, 60mm, key unlocking, MS1

Botão de parada de emergência D = 60 mm de liberação da chave

Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton, RMQ-Titan, Palm-tree shape, 60 mm, Non-illuminated, Key-release, MS1, Red, yellow, RAL 3000, Not suitable for master key systems

Mais detalhes


Disjuntores de baixa tensão > Elemento frontal para botão de cogumelo

Auxiliares de controle e sinalização

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $53.19
Preço unitário: $53.19

Quantidade Preço
1+$53.19
2+$49.12
3+$44.92
4+$42.55
6+$40.79
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton
Catalog Number
121469
EAN
4015081192892
Product Length/Depth
93 mm
Product Height
60 mm
Product Width
60 mm
Product Weight
0.082 kg
Certifications
VDE 0660
IEC/EN 60947
DNV
GL
LR
Catalog Notes
Not suitable for master key systems
Model Code
M22-PVS60P-MS1

Especificações do produto

Type
Controlled stop pushbutton/emergency-stop button
Accessories
1 key included with supplied equipment.
Actuator color
Red
Features
Tamper-proof (according to ISO 13850, EN 418)
Actuator function
Key-release
Switching function latching
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Operating frequency
600 Operations/h
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Connection to SmartWire-DT
No
Base color
Yellow
Actuating force
50 N
Actuator diameter
60 mm
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Diameter cap
60 mm
Equipment heat dissipation, current-dependent Pvid
0 W
Force for positive opening - min
0 N
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Opening diameter
22.5 mm
Opening height
0 mm
RAL-number
3000
Rated operational current for specified heat dissipation (In)
0 A
Illumination
Non-illuminated
Bezel color
Other
Shock resistance
50 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Color
Red
Key code
MS1
Bezel material
Other
Design
Palm-tree shaped
Classical
Mounting position
As required
Degree of protection
NEMA 4X
IP67/IP69K
Front element type
High
Lens type
Round
Lifespan, mechanical
100,000 Operations
Static heat dissipation, non-current-dependent Pvs
0 W
Width opening
0 mm
Product category
RMQ-Titan
Supply voltage lamp
0 V
Suitable for
Emergency stop
Unlocking method
Key-release

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 23 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
M22-PVS60P-MS1 M22-PVS60P-MS1Q 121469 ES_173029.pdf 4 Mbytes M22-PVS60P-MS1 M22-PVS60P-MS1Q 121469 ES_173029.pdf
