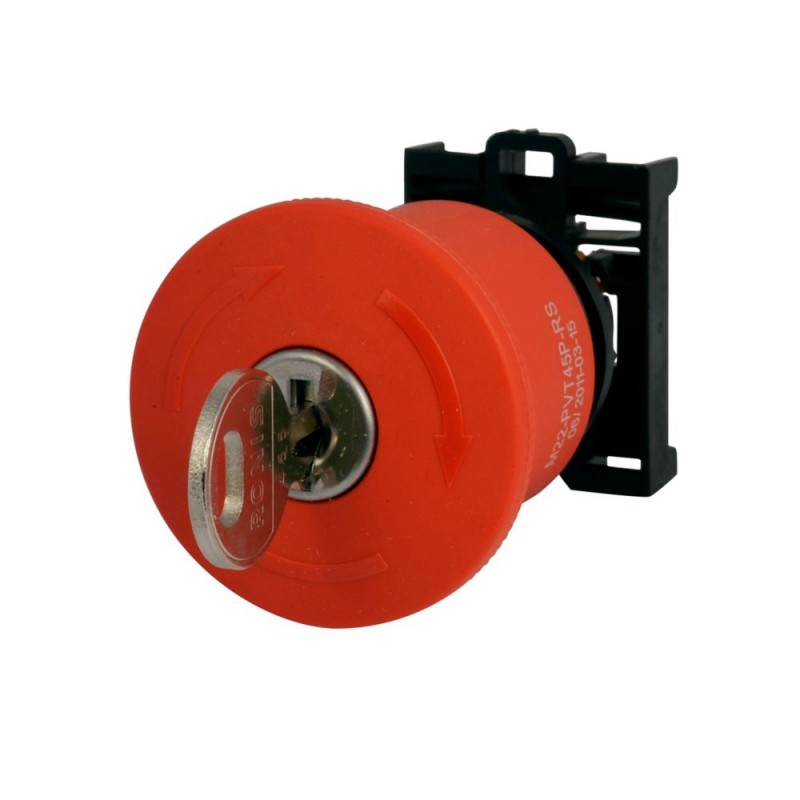

M22-PVS45P-RS 121466 Y7-121466 EATON ELECTRIC Emergency-stop pushbutton, D 45mm, key unlocking, RONIS Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

M22-PVS45P-RS 121466 Y7-121466 EATON ELECTRIC Emergency-stop pushbutton, D 45mm, key unlocking, RONIS

M22-PVS45P-RS

121466

Y7-121466

EATON-MOELLER

Emergency-stop pushbutton, D=45mm, key unlocking, RONIS

Botão de parada de emergência D = 45 mm Liberação da chave

Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton, RMQ-Titan, Palm-tree shape, 45 mm, Non-illuminated, Key-release, Red, yellow, RAL 3000, Not suitable for master key systems

Botão de paragem de emergência/desconexão de emergência, Gama de produtos: RMQ-Titan, Unidade única, Desenho: Forma de palmeira, Diâmetro: 45 mm, Iluminação: Não iluminada, Gatilho de chave, Descrição: Inviolável de acordo com a norma ISO 13850/EN 418, Cor da cabeça de cogumelo: Vermelho, Cor da base: amarelo, RAL 3000, Tipo de proteção: IP66, IP67, IP69K, Ligação a SmartWire-DT: não, Instruções: Número máximo de contatos: quatro M22-(C)K01, ... 10 ou dois M22-(C)K02, ... 20, … 11, informações sobre o equipamento fornecido: 1 chave incluída como padrão, padrões: IEC/EN 60947, VDE 0660

Mais detalhes


Aparelhos elétricos de baixa tensão > Elemento frontal para botão de cogumelo

Auxiliares de controle e sinalização

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $57.54
Preço unitário: $57.54
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton
Catalog Number
121466
EAN
4015081192861
Product Length/Depth
93 mm
Product Height
45 mm
Product Width
45 mm
Product Weight
0.062 kg
Compliances
GoST-R
CE Marked
Bureau Veritas
Certifications
CCC Marked
CSA Certified
Lloyd's Register Certified
IEC/EN 60947
VDE 0660
DNV
GL
LR
Catalog Notes
Not suitable for master key systems
Model Code
M22-PVS45P-RS

Especificações do produto

Type
Controlled stop pushbutton/emergency-stop button
Accessories
1 key included with supplied equipment.
Actuator color
Red
Features
Tamper-proof (according to ISO 13850, EN 418)
Actuator function
Key release
Switching function latching
Key-release
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Operating frequency
600 Operations/h
Button color
Red
Actuator
45 mm pushbutton
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Connection to SmartWire-DT
No
Base color
Yellow
Actuating force
50 N
Actuator diameter
45 mm
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Diameter cap
45 mm
Equipment heat dissipation, current-dependent Pvid
0 W
Force for positive opening - min
0 N
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Opening diameter
22.5 mm
Opening height
0 mm
RAL-number
3000
Rated operational current for specified heat dissipation (In)
0 A
Illumination
Non-illuminated
Bezel color
Other
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
50 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Color
Red
Key code
Ronis
Bezel material
Other
Design
Palm-tree shaped
Classical
Mounting position
As required
Degree of protection
NEMA 4X
IP67/IP69K
Front element type
High
Lens type
Round
Lifespan, mechanical
100,000 Operations
Static heat dissipation, non-current-dependent Pvs
0 W
Width opening
0 mm
Product category
RMQ-Titan
Supply voltage lamp
0 V
Suitable for
Emergency stop
Unlocking method
Key-release

ETIM for 121466 Low-voltage industrial controls and switchgear (EC001038)
Característica Valor
Colour button (EF000190) Red
Construction type lens (EF006253) Round
Diameter cap (EF001423) 45 mm
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Degree of protection (IP) (EF005474) IP67/IP69K
Degree of protection (NEMA) (EF011959) 4X
Type of button (EF001546) High
Suitable for lighting (EF001142) false
With lighting (EF003829) false
Supply voltage lamp (EF006522) 0 V
Switching function latching (EF007447) true
Spring-return (EF001407) false
With front ring (EF006014) false
Material front ring (EF005972) Other
Colour front ring (EF002429) Other
Suitable for emergency stop (EF001433) true
Unlocking method (EF001403) Key-release

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22-PVS45P-RS Y7-121466 121466 ES_173029.pdf 4 Mbytes M22-PVS45P-RS Y7-121466 121466 ES_173029.pdf
