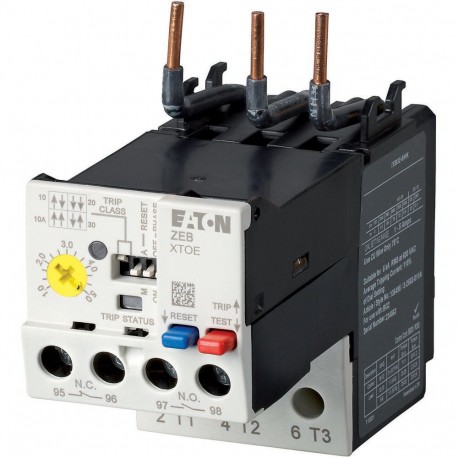

ZEB65-45 136502 Y7-136502 EATON ELECTRIC XTOE045DCS 45A relé térmico eletrônico
ZEB65-45
136502
Y7-136502
EATON-MOELLER
XTOE045DCS 45A relé térmico eletrônico
Relé Térmico Eletrônico 1 NO + 1 NC 9-45 A
Eaton Moeller® series ZEB Overload relay, Direct mounting, Earth-fault protection: none, Ir= 9 - 45 A, 1 N/O, 1 N/C ZEB65-45
Relé de sobrecarga, Gama de produtos: Relés de sobrecarga eletrônicos ZEB, Sensibilidade a falhas de fase: IEC/EN 60947, VDE 0660 Parte 102, Descrição: Botão de teste/desconexão, Botão de reset, Reinicialização manual/automática selecionável, Proteção de serviço de partida pesada (Classe 10A-30), Tipo de montagem: Montagem direta, Contatos auxiliares N/O = Normalmente aberto: 1 N/A, Contatos auxiliares N/C = Normalmente fechado: 1 N/C, Para uso com: DILM40, DILM50, DILM65, DILM72, DIULM40, DIULM50, DIULM65, SDAINLM70, SDAINLM90, SDAINLM115, Normas: IEC/EN 60947, VDE 0660, UL, CSA, Grau de proteção: IP20
Aparelhos elétricos de baixa tensão > Relé de sobrecarga eletrônico
Chaves de proteção do motor eletrônico
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton Moeller® series ZEB Electronic overload relay
Catalog Number
136502
EAN
4015081332823
Product Length/Depth
108 mm
Product Height
110 mm
Product Width
45 mm
Product Weight
0.267 kg
Certifications
CE
UL Category Control No.: NKCR
UL 508
IEC/EN 60947-4-1
IEC/EN 60947
VDE 0660
CSA Class No.: 3211-03
CSA-C22.2 No. 14
CSA File No.: 2290956
UL
CSA
UL File No.: E1230
UL Category Control No.: NKCR
UL 508
IEC/EN 60947-4-1
IEC/EN 60947
VDE 0660
CSA Class No.: 3211-03
CSA-C22.2 No. 14
CSA File No.: 2290956
UL
CSA
UL File No.: E1230
Catalog Notes
Rated operational current: Switch-on and switch-off conditions based on DC-13, time constant as specified.
Model Code
ZEB65-45
Funcionalidades e Funções
Earth fault protection
None
Features
Phase-failure sensitivity (according to IEC/EN 60947, VDE 0660 Part 102)
Functions
Filament bulb (24 V)
Geral
Class
Adjustable
Degree of protection
IP20
Mounting method
Direct mounting
Direct attachment
Direct attachment
Overload release current setting - min
9 A
Overload release current setting - max
45 A
Overvoltage category
III
Pollution degree
3
Product Category
Electronic overload relays ZEB
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
6000 V (auxiliary circuits)
6000 V (auxiliary circuits)
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Shock duration 10 ms
15 g, Mechanical, According to IEC/EN 60068-2-27, Shock duration 10 ms
Suitable for
Branch circuits, (UL/CSA)
Voltage type
Self powered
Condições meteorológicas
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
65 °C
Ambient operating temperature (enclosed) - max
45 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Capacidades dos terminais
Terminal capacity (flexible with ferrule)
2 x (0.75 - 2.5) mm², Control circuit cables
Terminal capacity (solid)
2 x (0.75 - 4) mm², Control circuit cables
1 x (4 - 16) mm², Main cables
1 x (4 - 16) mm², Main cables
Terminal capacity (solid/stranded AWG)
1 x (14 - 4), Main cables
2 x (18 - 12), Control circuit cables
2 x (18 - 12), Control circuit cables
Stripping length (main cable)
13 mm
Stripping length (control circuit cable)
8 mm
Screw size
M3.5, Terminal screw, Control circuit cables
Screwdriver size
1 x 6 mm, Terminal screw, Standard screwdriver
2, Terminal screw, Pozidriv screwdriver
2, Terminal screw, Pozidriv screwdriver
Tightening torque
0.8 - 1.2 Nm, Screw terminals, Control circuit cables
7 lb-in, Screw terminals
7 lb-in, Screw terminals
Classificação elétrica
Conventional thermal current ith of auxiliary contacts (1-pole, open)
5 A
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V
Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Rated operational current (Ie) at AC-15, 120 V
1.5 A
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
1.5 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
0.9 A
Rated operational current (Ie) at DC-13, 110 V
0.4 A
Rated operational current (Ie) at DC-13, 220 V, 230 V
0.2 A
Rated operational current (Ie) at DC-13, 24 V
0.9 A
Rated operational current (Ie) at DC-13, 60 V
0.75 A
Rated operational voltage (Ue) at AC - max
690 V
Short-circuit protection rating
Max. 6 A gG/gL, fuse, Without welding, Auxiliary and control circuits
Short-circuit current rating (high fault at 600 V)
100 kA, Fuse, SCCR (UL/CSA)
180 A, Class J, max. Fuse, SCCR (UL/CSA)
180 A, Class J, max. Fuse, SCCR (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
B600, AC operated (UL/CSA)
R300, DC operated (UL/CSA)
R300, DC operated (UL/CSA)
Voltage rating - max
600 V
Contactos
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
1
Number of auxiliary contacts (normally open contacts)
1
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1
Verificação do design
Equipment heat dissipation, current-dependent Pvid
4.3 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
1.43 W
Rated operational current for specified heat dissipation (In)
45 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Apenas ETIM
Electrical connection type of main circuit
Screw connection
Adjustable current range - min
9 A
Adjustable current range - max
45 A
Reset function
Push-button
Automatic
Automatic
| Característica | Valor |
|---|---|
| Método de montagem (EF000003) | Fixação direta |
| Tipo de conexão elétrica do circuito principal (EF006819) | Ligação com parafuso |
| Faixa de corrente ajustável (EF008211) | 9 A |
| Fonte de alimentação externa necessária (EF003292) | Não |
| Tensão de alimentação de corrente nominal de 50 Hz AC (EF003978) | 0 V |
| Tensão de alimentação de corrente nominal de 60 Hz CA (EF003979) | 0 V |
| Tensão de alimentação de corrente nominal DC (EF003980) | 0 V |
| Número de contatos auxiliares como contato normalmente fechado (EF001377) | 1 |
| Número de contatos auxiliares como contato normalmente aberto (EF001376) | 1 |
| Número de contatos auxiliares como contato de comutação (EF003531) | 0 |
| Tipo de tensão (tensão de operação) (EF005294) | AC |
| Tensão de operação de 50 Hz CA (EF008206) | 230 V |
| Tensão de operação AC 60 Hz (EF008207) | 230 V |
| Tensão de operação DC (EF008208) | 0 V |
| Classe de engate/gatilho (EF006668) | Ajustável |
| Função de redefinição automática (EF011941) | Sim |
| Entrada para função de redefinição (EF011940) | Não |
| Botão de reinicialização da função (EF011942) | Sim |
| Largura (EF000008) | 45 mm |
| Altura (EF000040) | 110 mm |
| Profundidade (EF000049) | 108 mm |
