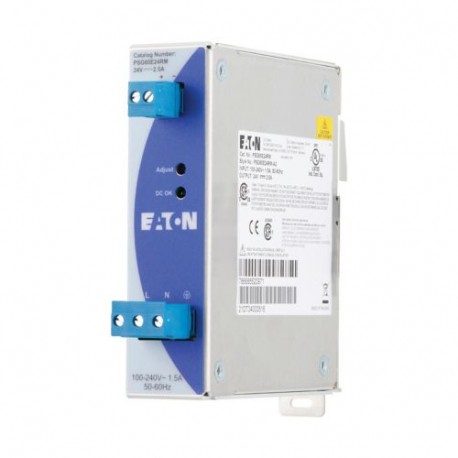

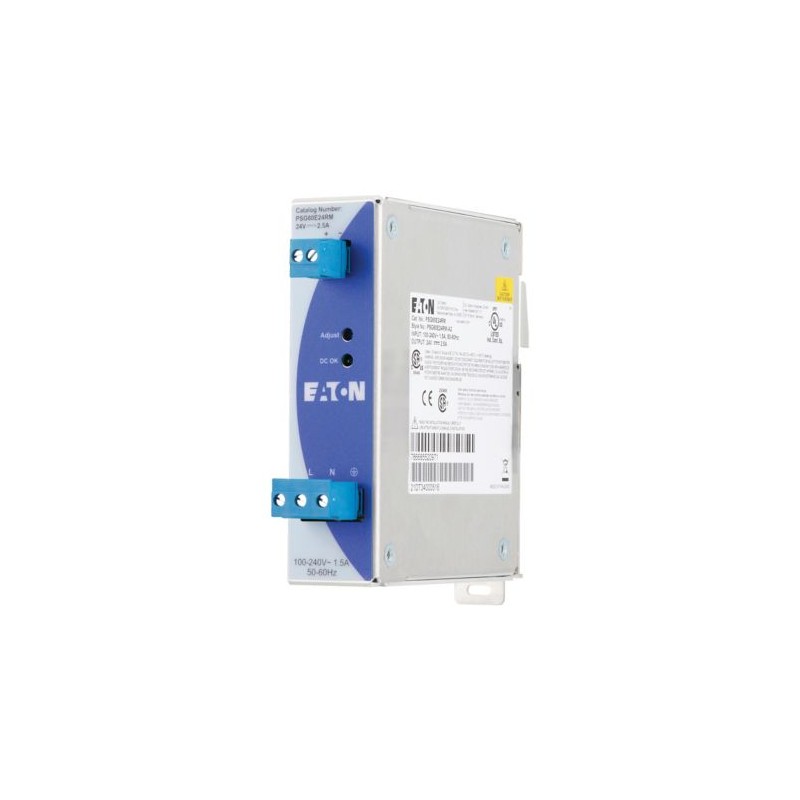

PSG60E24RM 172891 Y7-172891 EATON ELECTRIC fonte de alimentação monofásica 24VDC 2.5A
PSG60E24RM
172891
Y7-172891
EATON-MOELLER
fonte de alimentação monofásica 24VDC 2.5A
Fonte de alimentação monofásica 100-240 V AC/24 V DC 2.5A
Eaton PSG Power supply unit, 1-phase, 100-240VAC/24VDC, 2.5A PSG60E24RM
Fonte de alimentação, Gama de produtos: Fontes de alimentação PSG, Sub-gama: fonte de alimentação, Descrição: Aumento de potência por corrente nominal de funcionamento 1,5 vezes durante 5 s, PELV (EN 60204), SELV (EN 60950), Largura: 32 mm, Altura: 121 mm, Profundidade: 125 mm, Monofásico, Gama de tensão de entrada: 85 - 264 V AC, (120 - 375 V DC), Tensão nominal de entrada: 100 - 240 V AC, 125 - 250 V DC, Tensão nominal de saída: 24 V DC (± 2%), Corrente nominal de saída: 2,5 A, Faixa de ajuste da tensão de saída: 24 - 28 V DC, Potência nominal de saída: 60 W, Tipo de proteção: IP20, Dissipação de calor: 7,4 W
Aparelhos elétricos de baixa tensão > Fonte de alimentação CC
Transformadores
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton PSG power supply unit
Catalog Number
172891
EAN
4015081694792
Product Length/Depth
125 mm
Product Height
121 mm
Product Width
32 mm
Product Weight
0.37 kg
Certifications
Electrical equipment of machines: IEC60204-1 (Overvoltage category III)
2014/30/EU
EN 55011
Protection against electric shock: DIN 57100-410
Mains harmonics limitation: EN 601000-3-2
PELV (EN 60204)
ITE: EN 55022, EN 61000-3-2, EN 61000-3-3, EN 55024
2014/35/EU
EN 50178/IEC 62103
Class2: UL1310 and CSA-C22.2 No. 223
IEC/EN 61204-3
RoHS
Electrical Safety (of IT equipment) : SIQ to EN60950-1, UL/c-UL recognized to UL 60950-1, CSA-C22.2 No. 60950-1, CB scheme to IEC 60950-1
SELV (EN 60950)
UL 508
IEC Rated
CSA Std. C22.2
EN Listed
EAC
2014/30/EU
EN 55011
Protection against electric shock: DIN 57100-410
Mains harmonics limitation: EN 601000-3-2
PELV (EN 60204)
ITE: EN 55022, EN 61000-3-2, EN 61000-3-3, EN 55024
2014/35/EU
EN 50178/IEC 62103
Class2: UL1310 and CSA-C22.2 No. 223
IEC/EN 61204-3
RoHS
Electrical Safety (of IT equipment) : SIQ to EN60950-1, UL/c-UL recognized to UL 60950-1, CSA-C22.2 No. 60950-1, CB scheme to IEC 60950-1
SELV (EN 60950)
UL 508
IEC Rated
CSA Std. C22.2
EN Listed
EAC
Model Code
PSG60E24RM
Especificações do produto
Power consumption
184 VA
Phase
Single-phase
Nominal Output Voltage 1
24 V
Nominal Output Voltage 2
0 V
Nominal Output Voltage 3
0 V
Voltage type (supply voltage)
AC
Features
Stabilized
Modular version
Mains overvoltage protection (against internal overvoltage)
Short-circuit-proof
Output voltage stabilized
Modular version
Mains overvoltage protection (against internal overvoltage)
Short-circuit-proof
Output voltage stabilized
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Electric connection type
Screw connection
Fitted with:
Not accessible internal input fuse (T3.15 AH/250 V) for device protection
Pollution degree
2
Mounting Method
Rail mounting possible
Climatic proofing
< 95 % relative humidity at +25 °C, no condensation
Enclosure material
Aluminum
Environmental class
3K3 (Climatic class, according to EN 60721)
Output voltage
24 V
Degree of Protection
NEMA 1
IP20
IP20
Output voltage at DC - min
24 V
Rated frequency - max
63 Hz
Rated frequency - min
47 Hz
Rated operational current for specified heat dissipation (In)
0 A
Rated output power
60 W
Static heat dissipation, non-current-dependent Pvs
7.4 W
Stripping length (main cable)
7 mm
Supply voltage at AC, 50 Hz - max
264 VAC
Supply voltage at AC, 50 Hz - min
85 VAC
Supply voltage at AC, 60 Hz - max
264 VAC
Supply voltage at AC, 60 Hz - min
85 VAC
Supply voltage at DC - max
0 VDC
Supply voltage at DC - min
0 VDC
Width in number of modular spacings
0
Product category
Power supply
Overvoltage category
II
Capacitive load
8000 µF max. Capacitive load starting, Output characteristics
Current limitation
Overcurrent = 150 % of max. output power, at short-circuit, safety and safety features
Power output
60 W
Safety performance level (EN ISO 13849-1)
None
SIL (IEC 61508)
None
Tripping characteristic
B
Ambient operating temperature - max
80 °C
Ambient operating temperature - min
-20 °C
Ambient storage temperature - max
85 °C
Ambient storage temperature - min
-25 °C
Built-in height
121 mm
Built-in width
32 mm
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Input voltage at AC 50 Hz - max
264 V
Input voltage at AC 50 Hz - min
85 V
Input voltage at DC - max
375 V
Input voltage at DC - min
120 V
Nominal output current 1
2.5 A
Terminal capacity (flexible with ferrule AWG)
22 - 12
Protection class
1 (with PE connection)
Voltage tolerance
± 2 %, Rated output voltage
Output
Parallel switching for redundancy, with O ring diode (PSG480R24RM/PSG960R24RM)
Connection type
Screw terminal, pluggable
Residual ripple
< 50 mV / < 150 mV
Inrush current
< 35 A at 230 V AC (Inrush current limitation I²t (+25 °C))
< 20 A at 115 V AC (Inrush current limitation I²t (+25 °C))
< 20 A at 115 V AC (Inrush current limitation I²t (+25 °C))
Supply frequency
47 Hz, Input, min. Range
50/60 Hz, Input, Rated value
63 Hz, Input, max. Range
50/60 Hz, Input, Rated value
63 Hz, Input, max. Range
Insulation resistance
3 kV AC (routine test, input/output)
1.5 kV AC (type test, input)
4 kV AC (type test, input/output)
1.5 kV AC (type test, output)
500 V AC (routine test, output)
1.5 kV AC (routine test, input)
1.5 kV AC (type test, input)
4 kV AC (type test, input/output)
1.5 kV AC (type test, output)
500 V AC (routine test, output)
1.5 kV AC (routine test, input)
Efficiency
> 90 % (115 V AC)
> 90 % (230 V AC)
> 90 % (230 V AC)
Vibration resistance
10 - 500 Hz at 30 m/s² (3 G max ) for 60 min. in X-axis, Y-axis, Z-axis directions, (IEC/EN 60068-2-6)
Functions
Secondary voltage adjustable
Transient overvoltage protection (varistor)
Transient overvoltage protection (varistor)
Ramp/run-up time
< 2000 ms
Leakage current at ground IPE - max
< 1 mA (at 240 V AC)
LED indicator
Status indication of "DC OK": Green LED
Mains failure bridging
> 20 ms (at 115 V AC)
> 125 ms (at 230 V AC)
> 125 ms (at 230 V AC)
Mean time between failures (MTBF)
> 1,000,000 h
Nominal output current 2
0 A
Nominal output current 3
0 A
Number of phases
1
Output current 1 - max
2.5 A
Output current 2 - max
0 A
Output current 3 - max
0 A
Output current at AC, 50 Hz - max
2.5 A
Output voltage 1 - max
24 V
Output voltage 1 - min
24 V
Output voltage 2 - max
0 V
Output voltage 2 - min
0 V
Output voltage 3 - max
0 V
Output voltage 3 - min
0 V
Output voltage at DC - max
28 V
Rated operational current (Ie)
Max. 1.4 A at 115 V AC
Max. 0.8 A at 230 V AC
Max. 0.8 A at 230 V AC
Shock resistance
30 g (300 m/s²) in all directions, Mechanical, According to IEC/EN 60068-2-27
Short-term interruption
100% voltage dip, 1 cycle (20 ms at 50 Hz), automatic start, Input characteristics
Terminal capacity (flexible with ferrule)
0.32 - 3.3 mm²
Tightening torque
0.5 Nm, Screw terminals
| Característica | Valor |
|---|---|
| Tipo de tensão de alimentação (EF002991) | AC |
| 1a tensão de saída (EF006792) | 24 V |
| 2a tensão de saída (EF006797) | 0 V |
| 3a tensão de saída (EF006800) | 0 V |
| Máx. corrente de saída 1 (EF008284) | 2.5 A |
| Máx. corrente de saída 2 (EF008285) | 0 A |
| Máx. corrente de saída 3 (EF008286) | 0 A |
| Tensão secundária ajustável (EF007002) | Sim |
| Valor nominal tensão de saída 1 (EF009393) | 24 V |
| Valor nominal tensão de saída 2 (EF009394) | 0 V |
| Valor nominal tensão de saída 3 (EF009395) | 0 V |
| Valor nominal corrente de saída 1 (EF009396) | 2.5 A |
| Valor nominal corrente de saída 2 (EF009397) | 0 A |
| Valor nominal corrente de saída 3 (EF009398) | 0 A |
| Protegido contra curtos-circuitos (EF007332) | Sim |
| Tensão de alimentação nominal em AC 50 Hz (EF007076) | 85 V |
| Tensão nominal de alimentação em AC 60 Hz (EF007077) | 85 V |
| Tensão de alimentação nominal em DC (EF007078) | 0 V |
| Tensão de saída estabilizada (EF003092) | Sim |
| Consumo (potência em VA) (EF000346) | 184 VA |
| Potência à saída (EF003034) | 60 W |
| Estabilizado (EF005302) | Sim |
| Acabamento da conexão elétrica (EF003961) | Ligação com parafuso |
| Possível montagem em calha (EF003972) | Sim |
| Possível montagem na parede (EF003973) | Não |
| Versão modular (EF001126) | Sim |
| Largura em número de módulos (EF002950) | 0 |
| Largura para embutir (EF000846) | 32 mm |
| Altura embutida (EF000332) | 121 mm |
| Possibilidade de montagem direta (EF005689) | Não |
| Largura (EF000008) | 32 mm |
| Altura (EF000040) | 121 mm |
| Profundidade (EF000049) | 125 mm |
| Adequado para funções de segurança (EF001597) | Não |
| SIL de acordo com IEC 61508 (EF009889) | Nenhum |
| Nível de desempenho de acordo com EN ISO 13849-1 (EF007399) | Nenhum |
| Grau de proteção (IP) (EF005474) | IP20 |
| Grau de proteção (NEMA) (EF011959) | 1 |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON CONTROL TRANSFORMES EN.pdf | 4 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| PSG60E24RM Y7-172891 172891 ES_172891.pdf | 895 Kbytes |
|
Avaliações: (0) ▲
Não há comentários do produto ainda.
Adicionar avaliação
ocultar formulário
| Avaliação: |
|
| Nome: | |
| Email: | |
| Título: | |
| Opinión: | |
| Você recomendaria esse produto para comprar? | |
|
|
|
| Adicionar avaliação | |
Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
