P3-63/M4/K2-PG 172811 Y7-172811 EATON ELECTRIC Principal Interruptor traseira eixo de metal de montagem
P3-63/M4/K2-PG
172811
Y7-172811
EATON-MOELLER

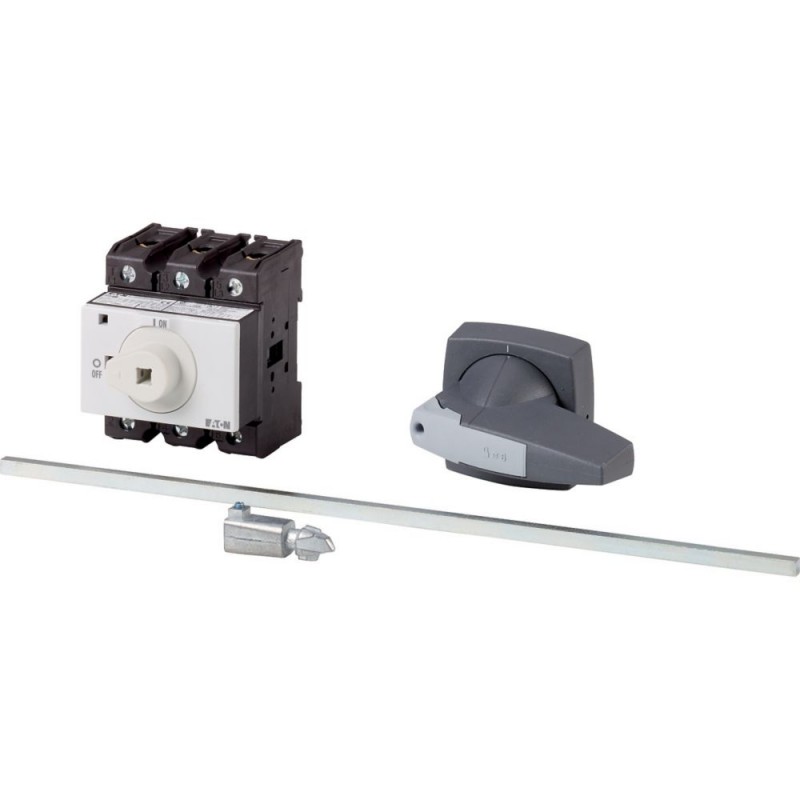

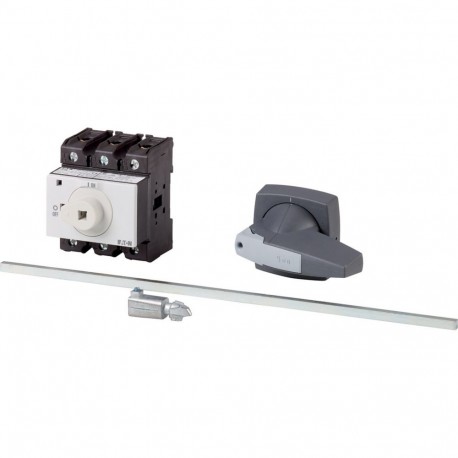

Principal Interruptor traseira eixo de metal de montagem
Interruptor Geral 3 polos 63 A Vermelho / Amarelo Alça Travável em
Eaton Moeller® series P3 Main switch, P3, 63 A, rear mounting, 3 pole, STOP function, with black rotary handle and lock ring (K series), Lockable in the 0 (Off) position, With metal shaft for a control panel depth of 400 mm
Interruptor principal, Gama de produtos: Interruptor principal, interruptor de manutenção, Referência do grupo de peças: P3, Função STOP: Função STOP, Com punho rotativo preto e anel de bloqueio, Notas: Com eixo metálico para uma profundidade de 400 mm no painel de controlo, Informações sobre o equipamento fornecido: Contacto auxiliar ou condutor neutro instalado pelo utilizador., 3 polos, Dispositivo de bloqueio: Bloqueável na posição 0 (Desligado), Grau de proteção: Frontal IP65, Desenho: montagem traseira, Potência do motor AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Corrente nominal ininterrupta: Iu = 63 A, Normas: IEC/EN 60947, VDE 0660, IEC/EN 60204, Interruptor-seccionador de acordo com IEC/EN 60947-3
Aparelhos elétricos de baixa tensão > Suporte
Desconexões e Comutadores Cam
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton Moeller® series P3 Main switch
Catalog Number
172811
EAN
4015081693962
Product Length/Depth
340 mm
Product Height
84 mm
Product Width
100 mm
Product Weight
0.54 kg
Certifications
IEC/EN 60204
VDE 0660
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
IEC/EN 60947
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
Model Code
P3-63/M4/K2-PG
Especificações do produto
Product Category
Main switch
Features
Version as main switch
Version as maintenance-/service switch
Version as maintenance-/service switch
Actuator color
Gray
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
UV resistance only in connection with protective shield.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Metal shaft for a control panel depth of 400 mm
Black rotary handle and locking ring
Black rotary handle and locking ring
Operating frequency
1200 Operations/h
Pollution degree
3
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Rated impulse withstand voltage (Uimp)
6000 V AC
Rated permanent current at AC-21, 400 V
63 A
Rated permanent current at AC-23, 400 V
63 A
Rated uninterrupted current (Iu)
63 A
Static heat dissipation, non-current-dependent Pvs
0 W
Switching power at 400 V
30 kW
Voltage per contact pair in series
60 V
Accessories
Auxiliary contact or neutral conductor fitted by user.
Rated operational power at AC-3, 500 V, 50 Hz
30 kW
Device construction
Built-in device fixed built-in technique
Rated short-time withstand current (Icw)
1.26 kA
Electrical connection type of main circuit
Screw connection
Mounting position
As required
Actuator type
Short thumb-grip
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient operating temperature (enclosed) - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
4.5 W
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Rated conditional short-circuit current (Iq)
4 kA (Load side)
100 kA (Supply side)
100 kA (Supply side)
Overvoltage category
III
Control circuit reliability
1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)
Degree of protection (front side)
IP65
Number of poles
3
Mounting method
Rear mounting
Degree of protection
NEMA 12
Suitable for
Intermediate mounting
Ground mounting
Ground mounting
Locking facility
Lockable in the 0 (Off) position
Functions
Interlockable
STOP function
STOP function
Number of switches
1
Safe isolation
440 V AC, Between the contacts, According to EN 61140
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms
Lifespan, mechanical
100,000 Operations
Load rating
1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor)
2 x Iₑ (with intermittent operation class 12, 25 % duty factor)
1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor)
2 x Iₑ (with intermittent operation class 12, 25 % duty factor)
1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor)
Terminal capacity
1 x (1.5 - 25) mm², flexible with ferrules to DIN 46228
1 x (2.5 - 35) mm², solid or stranded
2 x (1.5 - 6) mm², flexible with ferrules to DIN 46228
2 x (2.5 - 10) mm², solid or stranded
1 x (2.5 - 35) mm², solid or stranded
2 x (1.5 - 6) mm², flexible with ferrules to DIN 46228
2 x (2.5 - 10) mm², solid or stranded
Safety parameter (EN ISO 13849-1)
B10d values as per EN ISO 13849-1, table C.1
Number of auxiliary contacts (normally open contacts)
0
Number of contacts in series at DC-23A, 120 V
3
Number of contacts in series at DC-23A, 24 V
1
Number of contacts in series at DC-23A, 48 V
2
Number of contacts in series at DC-23A, 60 V
2
Rated breaking capacity at 220/230 V (cos phi to IEC 60947-3)
640 A
Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)
600 A
Rated breaking capacity at 500 V (cos phi to IEC 60947-3)
590 A
Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)
340 A
Rated making capacity up to 690 V (cos phi to IEC/EN 60947-3)
800 A
Rated operating voltage (Ue) - max
690 V
Rated operating voltage (Ue) - min
600 V
Rated operational voltage (Ue) at AC - max
690 V
Short-circuit protection rating
80 A gG/gL, Fuse, Contacts
Rated operational current (Ie) at AC-21, 440 V
63 A
Rated operational current (Ie) at AC-23A, 230 V
63 A
Rated operational current (Ie) at AC-23A, 400 V, 415 V
63 A
Rated operational current (Ie) at AC-23A, 500 V
63 A
Rated operational current (Ie) at AC-23A, 690 V
63 A
Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V
51 A
Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V
55 A
Rated operational current (Ie) at AC-3, 500 V
44 A
Rated operational current (Ie) at AC-3, 660 V, 690 V
22.1 A
Rated operational current (Ie) at DC-1, load-break switches l/r = 1 ms
63 A
Rated operational current (Ie) at DC-23A, 120 V
25 A
Rated operational current (Ie) at DC-23A, 24 V
50 A
Rated operational current (Ie) at DC-23A, 48 V
50 A
Rated operational current (Ie) at DC-23A, 60 V
50 A
Rated operational current for specified heat dissipation (In)
63 A
Rated operational power at AC-23A, 220/230 V, 50 Hz
18.5 kW
Rated operational power at AC-23A, 400 V, 50 Hz
30 kW
Rated operational power at AC-23A, 500 V, 50 Hz
45 kW
Rated operational power at AC-23A, 690 V, 50 Hz
55 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
30 kW
Rated operational power at AC-3, 415 V, 50 Hz
30 kW
Rated operational power at AC-3, 690 V, 50 Hz
30 kW
Tightening torque
3 Nm, Screw terminals
Uninterrupted current
Rated uninterrupted current Iu is specified for max. cross-section.
| Característica | Valor |
|---|---|
| Versão de interruptor principal (EF006981) | Sim |
| Versão de chave de manutenção/serviço (EF006986) | Sim |
| Versão de interruptor de segurança (EF006985) | Não |
| Versão como instalação de paragem de emergência (EF006959) | Não |
| Versão do interruptor de inversão (EF009408) | Não |
| Número de interruptores (EF005586) | 1 |
| Máx. tensão nominal de operação Ue CA (EF007355) | 690 V |
| Tensão nominal de operação (EF001435) | 690 V |
| Corrente permanente nominal Iu (EF001389) | 63 A |
| Corrente contínua nominal, AC-23, 400 V (EF011777) | 63 A |
| Corrente permanente nominal em AC-21, 400 V (EF009165) | 63 A |
| Potência de operação nominal em AC-3, 400 V (EF001364) | 30 kW |
| Corrente nominal suportável lcw atual (EF007050) | 1.26 kA |
| Potência de operação nominal em AC-23, 400 V (EF007027) | 30 kW |
| Potência de comutação a 400 V (EF009166) | 30 kW |
| Corrente condicional nominal de curto-circuito Iq (EF001444) | 100 kA |
| Número de polos (EF001391) | 3 |
| Número de contatos auxiliares como contato normalmente fechado (EF001377) | 0 |
| Número de contatos auxiliares como contato normalmente aberto (EF001376) | 0 |
| Número de contatos auxiliares como contato de comutação (EF003531) | 0 |
| Acionamento do motor opcional (EF007386) | Não |
| Acionamento do motor integrado (EF006697) | Não |
| Saída de tensão opcional (EF007491) | Não |
| Construção do dispositivo (EF008240) | Técnica de instalação fixa para dispositivo embutido |
| Adequado para montagem frontal de 4 furos (EF007247) | Não |
| Adequado para o centro de montagem frontal (EF007248) | Não |
| Apropriado para a instalação do quadro de distribuição (EF007262) | Não |
| Adequado para montagem intermediária (EF007264) | Sim |
| Cor do elemento de atuação (EF007167) | Cinzento |
| Tipo de elemento de controlo (EF006976) | Botão de giro curto |
| Possível interbloqueio (EF006281) | Sim |
| Tipo de conexão elétrica do circuito principal (EF006819) | Ligação com parafuso |
| Com cablagem pré-montada (EF016444) | Não |
| Grau de proteção (IP), frente (EF003118) | IP65 |
| Grau de proteção (NEMA) (EF011959) | 12 |
| Largura (EF000008) | 100 mm |
| Altura (EF000040) | 84 mm |
| Profundidade (EF000049) | 340 mm |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON SAFE SWITCHING EN.pdf | 935 Kbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| P3-63/M4/K2-PG Y7-172811 172811 ES_172807.pdf | 2 Mbytes |
|
Avaliações: (0) ▲
Não há comentários do produto ainda.
Adicionar avaliação
ocultar formulário
| Avaliação: |
|
| Nome: | |
| Email: | |
| Título: | |
| Opinión: | |
| Você recomendaria esse produto para comprar? | |
|
|
|
| Adicionar avaliação | |
Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
