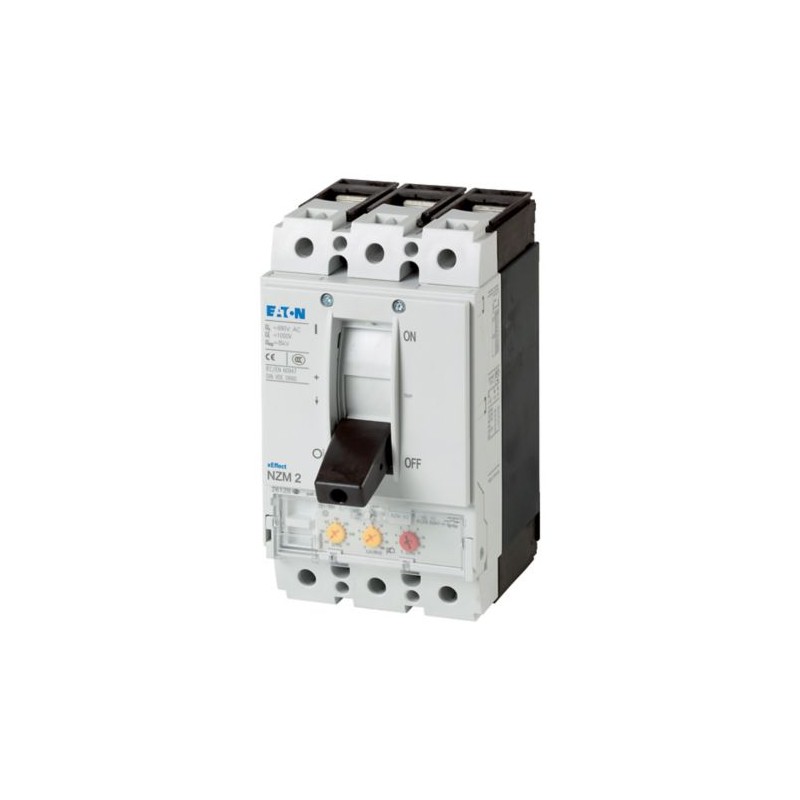

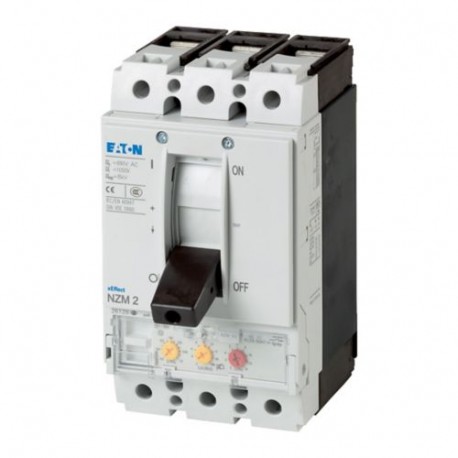

NZMN2-ME200-NA 118966 Y7-118966 EATON ELECTRIC interruptor automático do motor, 3P, Iu: 200A

Referência: NZMN2-ME200-NA

Código: 118966

Número de catálogo: Y7-118966

Fabricante: EATON - MOELLER

Descrição:

interruptor automático do motor, 3P, Iu: 200A
automático NZM, 3P, 200A, motorProtection
Eaton Moeller series NZM - Molded Case Circuit Breaker. Circuit-breaker, 3p, 200A, motor protection, N, 2
Disjuntores NZM. -ME.. A série NA cobre todas as aplicações com apenas quatro tamanhos compactos e é adequada para o mercado IEC. A instalação é sempre flexível graças aos grupos de funções modulares. Com desbloqueio eletrónico para proteção do motor com sensibilidade a falhas de fase. Notas: Os interruptores estão em conformidade com os regulamentos UL/CSA, bem como com os regulamentos IEC. Os valores de desempenho de comutação IEC estão contidos na placa de identificação. 100% qualificado. Para uso em circuitos de motores com contator. Recursos adicionais de proteção do motor (calibração) de acordo com UL508, CSA-C22.2 No. 14-05. A sobrecarga ajustável libera Ir, configuração de atraso de tempo ajustável para superar os picos de corrente tr: 2-20s a 6xIr

Categorias:

  • Aparelhos elétricos de baixa tensão > Disjuntor de proteção do motor
  • EATON - MOELLER > NZM Molded Case Automatic Switches

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 2.181,64 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 3 semanas.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller series NZM molded case circuit breaker electronic
Catalog Number
118966
EAN
4015081170937
Product Length/Depth
149 mm
Product Height
195 mm
Product Width
105 mm
Product Weight
2.557 kg
Compliances
RoHS conform
Certifications
IEC 60947-2
UL 489
CE marking
CSA (Class No. 1432-01)
Specially designed for North America
UL/CSA
UL (File No. E31593)
IEC/EN 60947
CSA (File No. 22086)
CSA certified
CSA-C22.2 No. 5-09
UL listed
UL (Category Control Number DIVQ)
UL508
IEC
Model Code
NZMN2-ME200-NA

Dados técnicos - elétricos

Voltage rating
690 V - 690 V
Rated operating voltage Ue (UL) - max
480 V
Rated insulation voltage (Ui)
1000 V
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
200 A (690 V AC-1, making and breaking capacity)
300 A (415 V AC-1, making and breaking capacity)
300 A (400 V AC-1, making and breaking capacity)
200 A (660-690 V AC-3, making and breaking capacity)
Rated short-time withstand current (t = 0.3 s)
1.9 kA
Rated short-time withstand current (t = 1 s)
1.9 kA
Amperage Rating
200 A
Instantaneous current setting (Ii) - min
200 A
Instantaneous current setting (Ii) - max
2800 A
Overload current setting (Ir) - min
100 A
Overload current setting (Ir) - max
200 A
Short-circuit release non-delayed setting - min
400 A
Short-circuit release non-delayed setting - max
2800 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
85 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
35 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
35 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
25 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
5 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
187 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
105 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
74 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
53 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
40 kA
Motor power at 460/480 V (UL)
150 HP
Rated operating power at AC-3, 230 V
55 kW
Rated operating power at AC-3, 400 V
110 kW
Short-circuit total breaktime
< 10 ms
Low-voltage HBC fuse - max
355 A gG/gL
Electrical connection type of main circuit
Screw connection
Isolation
300 V AC (between the auxiliary contacts)
500 V AC (between auxiliary contacts and main contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
10000 operations at 400 V AC-1
7500 operations at 690 V AC-1
6500 operations at 400 V AC-3
5000 operations at 690 V AC-3
6500 operations at 415 V AC-3
Direction of incoming supply
As required

Dados técnicos - comunicação

Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
200 A (690 V AC-1, making and breaking capacity)
300 A (415 V AC-1, making and breaking capacity)
300 A (400 V AC-1, making and breaking capacity)
200 A (660-690 V AC-3, making and breaking capacity)
Rated short-time withstand current (t = 0.3 s)
1.9 kA
Rated short-time withstand current (t = 1 s)
1.9 kA
Amperage Rating
200 A
Instantaneous current setting (Ii) - min
200 A
Instantaneous current setting (Ii) - max
2800 A
Overload current setting (Ir) - min
100 A
Overload current setting (Ir) - max
200 A
Short-circuit release non-delayed setting - min
400 A
Short-circuit release non-delayed setting - max
2800 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
85 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
35 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
35 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
25 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
5 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
187 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
105 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
74 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
53 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
40 kA
Motor power at 460/480 V (UL)
150 HP
Rated operating power at AC-3, 230 V
55 kW
Rated operating power at AC-3, 400 V
110 kW
Short-circuit total breaktime
< 10 ms
Low-voltage HBC fuse - max
355 A gG/gL
Electrical connection type of main circuit
Screw connection
Isolation
300 V AC (between the auxiliary contacts)
500 V AC (between auxiliary contacts and main contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
10000 operations at 400 V AC-1
7500 operations at 690 V AC-1
6500 operations at 400 V AC-3
5000 operations at 690 V AC-3
6500 operations at 415 V AC-3
Direction of incoming supply
As required

Dados técnicos - mecânicos

Mounting Method
Built-in device fixed built-in technique
Fixed
Degree of protection
IP20
IP20 (basic degree of protection, in the operating controls area)
Degree of protection (IP), front side
IP66 (with door coupling rotary handle)
IP40 (with insulating surround)
Degree of protection (terminations)
IP00 (terminations, phase isolator and strip terminal)
IP10 (tunnel terminal)
Protection against direct contact
Finger and back-of-hand proof to VDE 0106 part 100
Shock resistance
20 g (half-sinusoidal shock 20 ms)
Switch off technique
Electronic
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Lifespan, mechanical
20000 operations

ETIM for 118966 Componentes industriais para Baixa Tensão (EC000074)

Nome da característicaConfiguração de corrente da proteção contra sobrecargas (EF002336)
Valor da característica100 A
Nome da característicaFaixa de ajuste da disparo em curto-circuito não retardada (EF007131)
Valor da característica200 A
Nome da característicaCom proteção térmica (EF006233)
Valor da característicaSim
Nome da característicaSensível à falha de fase (EF007400)
Valor da característicaSim
Nome da característicaTécnica de disparo (EF007007)
Valor da característicaEletrónico
Nome da característicaTensão nominal de operação (EF001435)
Valor da característica690 V
Nome da característicaPotência de operação nominal em AC-3, 230 V (EF007025)
Valor da característica55 kW
Nome da característicaPotência de operação nominal em AC-3, 400 V (EF001364)
Valor da característica110 kW
Nome da característicaTipo de conexão elétrica do circuito principal (EF006819)
Valor da característicaLigação com parafuso
Nome da característicaTipo de elemento de controlo (EF006976)
Valor da característicaAlavanca basculante
Nome da característicaConstrução do dispositivo (EF008240)
Valor da característicaTécnica de instalação fixa para dispositivo embutido
Nome da característicaCom interruptor auxiliar integrado (EF001387)
Valor da característicaNão
Nome da característicaCom passagem de subtensão integrada (EF001390)
Valor da característicaNão
Nome da característicaNúmero de polos (EF001391)
Valor da característica3
Nome da característicaCapacidade de interrupção nominal de curto-circuito Icu a 400 V, CA (EF007049)
Valor da característica35 kA
Nome da característicaGrau de proteção (IP) (EF005474)
Valor da característicaIP20
Nome da característicaAltura (EF000040)
Valor da característica195 mm
Nome da característicaLargura (EF000008)
Valor da característica105 mm
Nome da característicaProfundidade (EF000049)
Valor da característica149 mm
