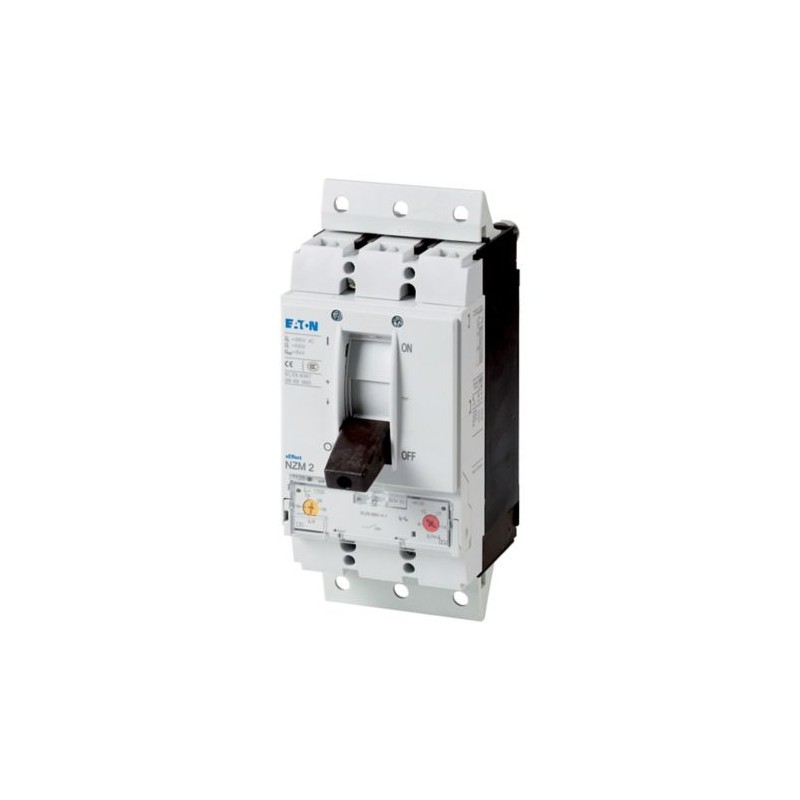

NZMC2-M200-SVE 113225 Y7-113225 EATON ELECTRIC interruptor automático do motor, 3P, Iu: 200A Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

NZMC2-M200-SVE 113225 Y7-113225 EATON ELECTRIC interruptor automático do motor, 3P, Iu: 200A

NZMC2-M200-SVE

113225

Y7-113225

EATON-MOELLER

interruptor automático do motor, 3P, Iu: 200A

Int. Auto NZM, 3P, 200A, Plug-in

Eaton Moeller series NZM - Molded Case Circuit Breaker. Circuit-breaker, 3p, 200A, plug-in module, C2-M200-SVE

Disjuntores NZM. A série M abrange todas as aplicações com apenas quatro tamanhos compactos e é adequada para o mercado de IEC. A montagem é sempre flexível devido a grupos de funções modulares. Com liberação termomagnética para proteção motora. Notas: Acionar os disjuntores classe 10A, IEC/EN 60947-4-1, disjuntores IEC/EN 60947-2 atendem a todos os requisitos da categoria de comutação AC-3.

Mais detalhes


Aparelhos elétricos de baixa tensão > Disjuntor de proteção do motor

NZM Molded Case Automatic Switches

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $1,253.80
Preço unitário: $1,253.80
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller series NZM molded case circuit breaker thermo-magnetic
Catalog Number
113225
EAN
4015081127603
Product Length/Depth
180 mm
Product Height
245 mm
Product Width
105 mm
Product Weight
2.785 kg
Compliances
RoHS conform
Certifications
IEC/EN 60947
IEC
Model Code
NZMC2-M200-SVE

Dados técnicos - elétricos

Voltage rating
690 V - 690 V
Rated insulation voltage (Ui)
690 V
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
196 A (400 V AC-3)
Amperage Rating
200 A
Instantaneous current setting (Ii) - min
1600 A
Instantaneous current setting (Ii) - max
2800 A
Overload current setting (Ir) - min
160 A
Overload current setting (Ir) - max
200 A
Short-circuit release non-delayed setting - min
1600 A
Short-circuit release non-delayed setting - max
2800 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
55 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
22.5 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
22.5 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
6 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
4 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
121 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
76 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
63 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
24 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
14 kA
Rated operating power at AC-3, 230 V
55 kW
Rated operating power at AC-3, 400 V
110 kW
Short-circuit total breaktime
< 10 ms
Electrical connection type of main circuit
Screw connection
Isolation
500 V AC (between auxiliary contacts and main contacts)
300 V AC (between the auxiliary contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
5000 operations at 690 V AC-1
10000 operations at 400 V AC-1
7500 operations at 415 V AC-1
Direction of incoming supply
As required

Dados técnicos - comunicação

Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
196 A (400 V AC-3)
Amperage Rating
200 A
Instantaneous current setting (Ii) - min
1600 A
Instantaneous current setting (Ii) - max
2800 A
Overload current setting (Ir) - min
160 A
Overload current setting (Ir) - max
200 A
Short-circuit release non-delayed setting - min
1600 A
Short-circuit release non-delayed setting - max
2800 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
55 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
22.5 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
22.5 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
6 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
4 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
121 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
76 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
63 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
24 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
14 kA
Rated operating power at AC-3, 230 V
55 kW
Rated operating power at AC-3, 400 V
110 kW
Short-circuit total breaktime
< 10 ms
Electrical connection type of main circuit
Screw connection
Isolation
500 V AC (between auxiliary contacts and main contacts)
300 V AC (between the auxiliary contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
5000 operations at 690 V AC-1
10000 operations at 400 V AC-1
7500 operations at 415 V AC-1
Direction of incoming supply
As required

Dados técnicos - mecânicos

Mounting Method
Built-in device plug-in technique
Plug-in unit
Degree of protection
IP20 (basic degree of protection, in the operating controls area)
IP20
Degree of protection (IP), front side
IP40 (with insulating surround)
IP66 (with door coupling rotary handle)
Degree of protection (terminations)
IP00 (terminations, phase isolator and strip terminal)
IP10 (tunnel terminal)
Protection against direct contact
Finger and back-of-hand proof to VDE 0106 part 100
Shock resistance
20 g (half-sinusoidal shock 20 ms)
Switch off technique
Thermomagnetic
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Lifespan, mechanical
20000 operations

ETIM for 113225 Low-voltage industrial controls and switchgear (EC000074)
Característica Valor
Overload release current setting (EF002336) 160 A
Adjustment range undelayed short-circuit release (EF007131) 1600 A
With thermal overload protection (EF006233) true
Phase failure sensitive (EF007400) false
Switch off technique (EF007007) Thermomagnetic
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) None A
Rated operation power at AC-3, 230 V (EF007025) 55 kW
Rated operation power at AC-3, 400 V (EF001364) 110 kW
Power loss (EF005387) None W
Type of electrical connection of main circuit (EF006819) Screw connection
Type of control element (EF006976) Rocker lever
Device construction (EF008240) Built-in device plug-in technique
With integrated auxiliary switch (EF001387) false
With integrated under voltage release (EF001390) false
Number of poles (EF001391) 3
Rated short-circuit breaking capacity Icu at 400 V, AC (EF007049) 22.5 kA
Degree of protection (IP) (EF005474) IP20
Height (EF000040) 245 mm
Width (EF000008) 105 mm
Depth (EF000049) 180 mm
