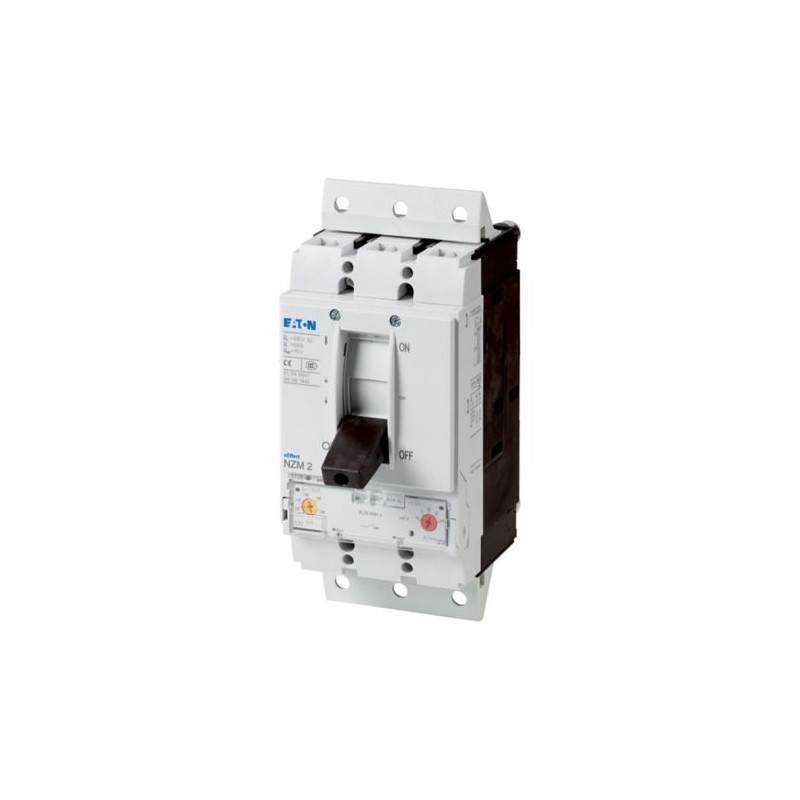

NZMC2-A250-SVE 113222 Y7-113222 EATON ELECTRIC Disjuntor, 3P, Iu: 250A

NZMC2-A250-SVE

113222

Y7-113222

EATON-MOELLER

Disjuntor, 3P, Iu: 250A

Int. Auto NZM, 3P, 250A, Plug-in

Eaton Moeller series NZM - Molded Case Circuit Breaker. Circuit-breaker, 3p, 250A, plug-in module, C, frame 2, A250-SVE

Disjuntor NZM2, 3 polos, Potência de comutação 400/415 V 50 Hz( Icu ): 36 kA, Corrente nominal = corrente nominal ininterrupta Corrente nominal = Corrente nominal ininterrupta ( In = Iu ): 250 A, Tipo de instalação: Unidades plug-in, Conexão a parafuso, Padrão/Aprovação: IEC, Função de proteção: Proteção do sistema e do cabo

Mais detalhes


Aparelhos elétricos de baixa tensão > Interruptor para proteção de transformadores, geradores e sistemas

NZM Molded Case Automatic Switches
