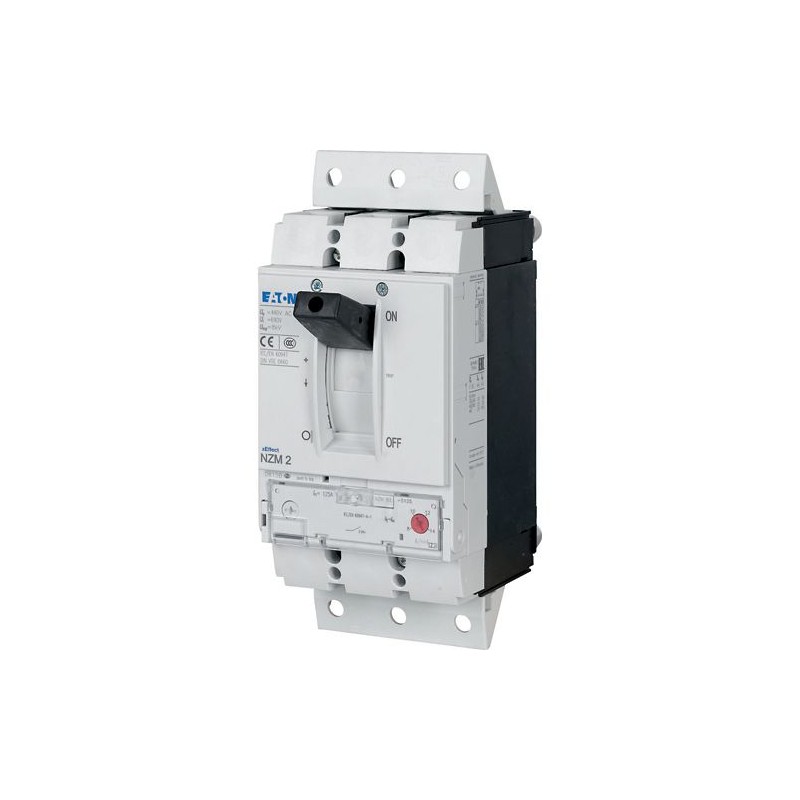

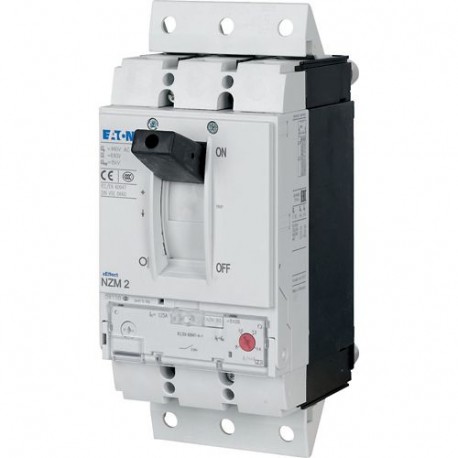

NZMB2-S125-SVE 113199 Y7-113199 EATON ELECTRIC interruptor automático, sem relé de sobrecarga, 3P, Iu: 125A Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

NZMB2-S125-SVE 113199 Y7-113199 EATON ELECTRIC interruptor automático, sem relé de sobrecarga, 3P, Iu: 125A

NZMB2-S125-SVE

113199

Y7-113199

EATON-MOELLER

interruptor automático, sem relé de sobrecarga, 3P, Iu: 125A

Auto NZM, 3P, 125A, conectável

Eaton Moeller series NZM - Molded Case Circuit Breaker. Circuit-breaker, 3p, 125A, plug-in module, B2-S125-SVE

Série NZM. Os disjuntores -S cobrem todos os casos de aplicação com apenas quatro tamanhos compactos e são adequados para o mercado de IEC. Os grupos de funções modulares sempre tornam a montagem mais flexível. Com a liberação de curto-circuito magnético em conexão com o relé de sobrecarga. Com curto-circuito soltura sem sobrecarga disparando. Notas: Os disjuntores atendem a todos os requisitos da categoria de comutação AC-3.

Mais detalhes


Aparelhos elétricos de baixa tensão > Disjuntor de proteção do motor

NZM Molded Case Automatic Switches

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $723.53
Preço unitário: $723.53
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller series NZM molded case circuit breaker magnetic
Catalog Number
113199
EAN
4015081127344
Product Length/Depth
180 mm
Product Height
245 mm
Product Width
105 mm
Product Weight
2.79 kg
Compliances
RoHS conform
Certifications
IEC/EN 60947
IEC
Model Code
NZMB2-S125-SVE

Dados técnicos - elétricos

Voltage rating
440 V - 440 V
Rated insulation voltage (Ui)
690 V
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
99 A (400 V AC-3)
Amperage Rating
125 A
Instantaneous current setting (Ii) - min
8 A
Instantaneous current setting (Ii) - max
14 A
Overload current setting (Ir) - min
0 A
Overload current setting (Ir) - max
0 A
Short-circuit release non-delayed setting - min
1000 A
Short-circuit release non-delayed setting - max
1750 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
30 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
18.5 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
18.5 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
63 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
53 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
53 kA
Rated operating power at AC-3, 230 V
37 kW
Rated operating power at AC-3, 400 V
45 kW
Short-circuit total breaktime
< 10 ms
Electrical connection type of main circuit
Screw connection
Isolation
300 V AC (between the auxiliary contacts)
500 V AC (between auxiliary contacts and main contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
10000 operations at 400 V AC-1
7500 operations at 415 V AC-1
Direction of incoming supply
As required

Dados técnicos - comunicação

Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
99 A (400 V AC-3)
Amperage Rating
125 A
Instantaneous current setting (Ii) - min
8 A
Instantaneous current setting (Ii) - max
14 A
Overload current setting (Ir) - min
0 A
Overload current setting (Ir) - max
0 A
Short-circuit release non-delayed setting - min
1000 A
Short-circuit release non-delayed setting - max
1750 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
30 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
18.5 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
18.5 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
63 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
53 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
53 kA
Rated operating power at AC-3, 230 V
37 kW
Rated operating power at AC-3, 400 V
45 kW
Short-circuit total breaktime
< 10 ms
Electrical connection type of main circuit
Screw connection
Isolation
300 V AC (between the auxiliary contacts)
500 V AC (between auxiliary contacts and main contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
10000 operations at 400 V AC-1
7500 operations at 415 V AC-1
Direction of incoming supply
As required

Dados técnicos - mecânicos

Mounting Method
Built-in device plug-in technique
Plug-in unit
Degree of protection
IP20
IP20 (basic degree of protection, in the operating controls area)
Degree of protection (IP), front side
IP40 (with insulating surround)
IP66 (with door coupling rotary handle)
Degree of protection (terminations)
IP00 (terminations, phase isolator and strip terminal)
IP10 (tunnel terminal)
Protection against direct contact
Finger and back-of-hand proof to VDE 0106 part 100
Shock resistance
20 g (half-sinusoidal shock 20 ms)
Switch off technique
Magnetic
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Lifespan, mechanical
20000 operations

ETIM for 113199 Low-voltage industrial controls and switchgear (EC000074)
Característica Valor
Overload release current setting (EF002336) 0 A
Adjustment range undelayed short-circuit release (EF007131) 8 A
With thermal overload protection (EF006233) false
Phase failure sensitive (EF007400) false
Switch off technique (EF007007) Magnetic
Rated operating voltage (EF001435) 440 V
Rated permanent current Iu (EF001389) 125 A
Rated operation power at AC-3, 230 V (EF007025) 37 kW
Rated operation power at AC-3, 400 V (EF001364) 45 kW
Power loss (EF005387) None W
Type of electrical connection of main circuit (EF006819) Screw connection
Type of control element (EF006976) Rocker lever
Device construction (EF008240) Built-in device plug-in technique
With integrated auxiliary switch (EF001387) false
With integrated under voltage release (EF001390) false
Number of poles (EF001391) 3
Rated short-circuit breaking capacity Icu at 400 V, AC (EF007049) 18.5 kA
Degree of protection (IP) (EF005474) IP20
Height (EF000040) 245 mm
Width (EF000008) 105 mm
Depth (EF000049) 180 mm

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
NZMB2-S125-SVE Y7-113199 113199 EN_113193.pdf 3 Mbytes NZMB2-S125-SVE Y7-113199 113199 EN_113193.pdf
