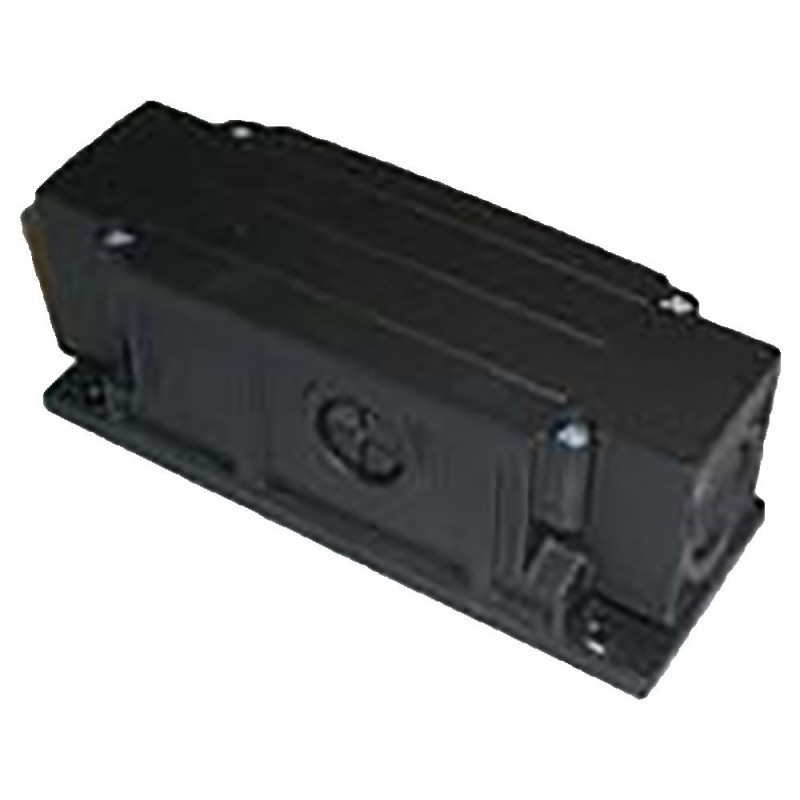

EATON - MOELLER RA-C1-AM-7 290214 Y7-290214 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

RA-C1-AM-7 290214 Y7-290214 EATON ELECTRIC Fazer a ligação rápida 4 Módulo de Distribuição

Referência: RA-C1-AM-7

Código: 290214

Número de catálogo: Y7-290214

Fabricante: EATON - MOELLER

Descrição:

Fazer a ligação rápida 4 - Módulo de Distribuição
Link Rápido 4.0. Entrada de cabo plano. Sair. 7 pólos
Entrada de cabo plano, saída, 7p
Entrada ou remoção de fio redondo para plano, para terminação de cabo IDC de 400 V CA e 24 VCC

Categorias:

  • Aparelhos elétricos de baixa tensão > Acessórios para a tecnologia de comutação por baixa tensão
  • EATON - MOELLER > Acionadores Rapid Link

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 70,04 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 3 semanas.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series Rapid Link Accessory Flexible busbar feeder
Catalog Number
290214
EAN
4015082902148
Product Length/Depth
160 mm
Product Height
59.5 mm
Product Width
60.2 mm
Product Weight
0.3 kg
Certifications
EN 60998-2-2
IEC/EN 60529
Catalog Notes
Order cable gland V-M25 or V-M20 separately.
Model Code
RA-C1-AM-7

Especificações do produto

10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Accessory/spare part type
Connection technique
Contact type
Springloaded terminals 1.5 to 4 mm²
Degree of protection
IP65, according to IEC/EN 60529
Mounting position
As required
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-30 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Rated operational current (Ie)
20 A
Functions
For feeding the 400-V-AC/24-V-DC of the ribbon cable with a round cable
Rated operational voltage (Ue) at AC - max
500 V
Rated operational voltage (Ue) at DC - max
24 V
Product category
Accessories

ETIM for 290214 Componentes industriais para Baixa Tensão (EC002498)

Nome da característicaTipo de acessório/peça de reposição (EF000215)
Valor da característicaTécnica de conexão
Nome da característicaAcessório (EF013236)
Valor da característicaSim
Nome da característicaPeça de substituição (EF013237)
Valor da característicaNão

DATASHEET - PDF
