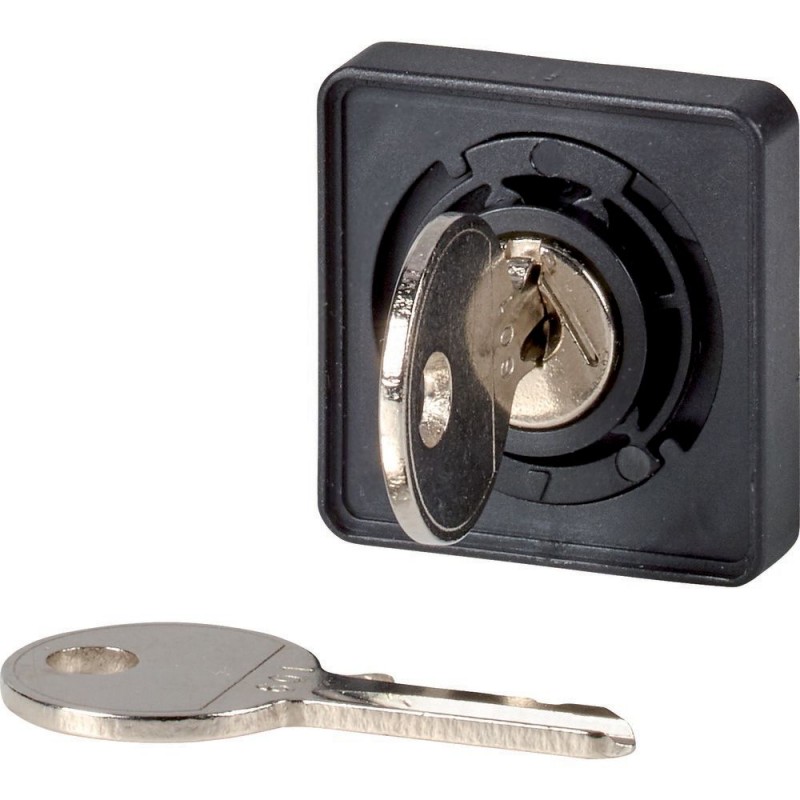

EATON - MOELLER +IVS/S-D 231976 Y7-231976 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

+IVS/S-D 231976 Y7-231976 EATON ELECTRIC guia de montagem Acessório + bloqueio. Só pode ser vendido montado.

Referência: +IVS/S-D

Código: 231976

Número de catálogo: Y7-231976

Fabricante: EATON - MOELLER

Descrição:

guia de montagem Acessório + bloqueio. Só pode ser vendido montado.
Elemento frontal. Para interruptores TM. IVS. Mecanismo de travamento com
Elemento frontal, para interruptor TM, IVS-, mecanismo de travamento de acionamento com chave, Ronis No.D
Elemento frontal para interruptor TM, Função básica: Arranjos de travamento, Função: Mecanismo de travamento de operação com chave, RONIS-lock de 60 graus, Ao fazer o pedido com unidade básica, Para uso com: Montagem do quadro de distribuição de serviço (IVS), Informações sobre o equipamento fornecidas: com duas chaves, Grau de proteção: IP55

Categorias:

  • Aparelhos elétricos de baixa tensão > Elemento frontal para interruptor seletor
  • EATON - MOELLER > Desconexões e Comutadores Cam

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • Avaliações
Garantia, reparação e devolução.

* Este artigo é restrito. Por favor, peça-nos um orçamento para verificar se há unidades disponíveis ou você oferecer um produto alternativo.

Solicite um orçamento e verificaremos a disponibilidade das unidades. Caso não estejam disponíveis, um dos nossos técnicos procurará uma solução alternativa.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series IVS Accessory Front element for TM switch
Catalog Number
231976
EAN
4015082319762
Product Length/Depth
20 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.1 kg
Compliances
CE
Model Code
+IVS/S-D

Especificações do produto

Type
Locking arrangements
Accessories
2 keys included with supplied equipment.
Actuator color
Silver
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Not applicable.
10.12 Electromagnetic compatibility
Not applicable.
10.13 Mechanical function
Not applicable.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Front ring
Actuator type
Key
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Opening diameter
0 mm
Opening height
0 mm
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Width opening
0 mm
Bezel color
Black
Bezel material
Plastic
Degree of protection
NEMA 12
Degree of protection (front side)
IP65
Locking facility
RONIS-lock (60°)
Functions
Key operation lock mechanism
Indicator color
Other
Lens type
Square
Number of switch positions
0

ETIM for 231976 Componentes industriais para Baixa Tensão (EC000222)

Nome da característicaNúmero de posições do interruptor (EF000231)
Valor da característica0
Nome da característicaTipo de elemento de controlo (EF006976)
Valor da característicaChave
Nome da característicaAdequado para iluminação (EF001142)
Valor da característicaNão
Nome da característicaCor do elemento de atuação (EF007167)
Valor da característicaPrateado
Nome da característicaCor da tampa da luz indicadora (EF007165)
Valor da característicaOutro
Nome da característicaForma de lente (EF006253)
Valor da característicaQuadrado
Nome da característicaDiâmetro do furo (intervalo) (EF000079)
Valor da característica0 mm
Nome da característicaLargura da abertura (EF004565)
Valor da característica0 mm
Nome da característicaAltura da abertura (EF004778)
Valor da característica0 mm
Nome da característicaFunção de comutação de encaixe (EF007447)
Valor da característicaNão
Nome da característicaRetorno por mola/tátil (EF001407)
Valor da característicaNão
Nome da característicaCom anel frontal (EF006014)
Valor da característicaSim
Nome da característicaMaterial do anel frontal (EF005972)
Valor da característicaPlástico
Nome da característicaCor do anel frontal (EF002429)
Valor da característicaPreto
Nome da característicaGrau de proteção (IP), frente (EF003118)
Valor da característicaIP65
Nome da característicaGrau de proteção (NEMA) (EF011959)
Valor da característica12
