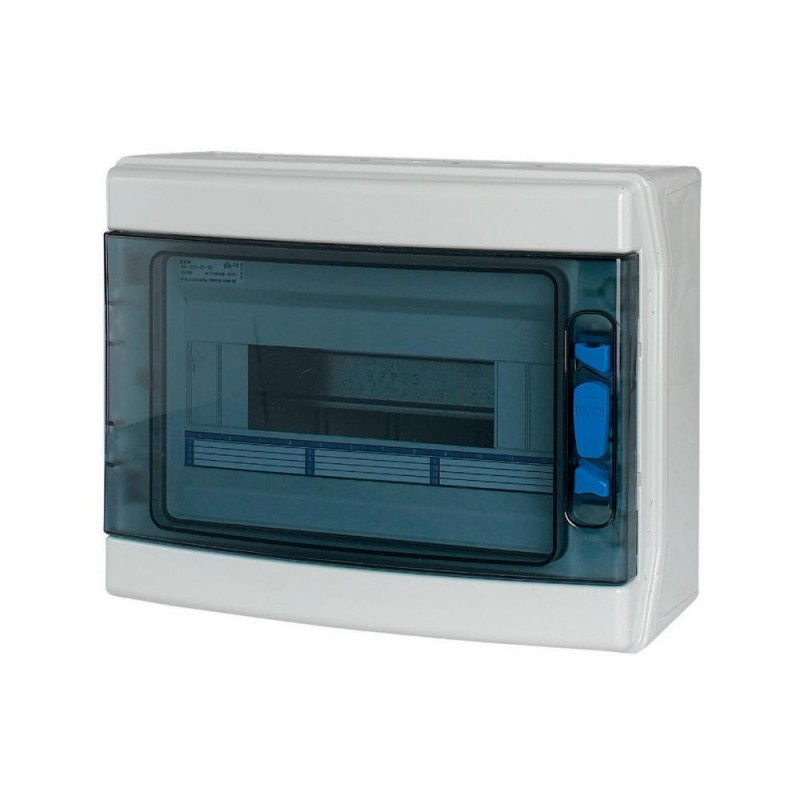

IKA-1/12-ST 174197 EATON ELECTRIC SM Conselho IP65 1-linha 12 módulos
IKA-1/12-ST
174197
EATON-MOELLER
SM Conselho IP65 1-linha 12 módulos
Linha profissional da caixa IKA, IP65 + fixações
Eaton xComfort IKA LV systems Final Distribution Boards. IKA professional distribution board, IP65 + clamps, 1/12-ST
Sistemas de distribuição de energia elétrica (incluindo quadros de controle) > Pequenos distribuidores de instalação
Caixas e armários pequenos
* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Mais informação
▲General specifications
Product Name
Eaton xComfort IKA professional series
Catalog Number
174197
EAN
4015081706594
Product Length/Depth
145 mm
Product Height
246 mm
Product Width
310 mm
Product Weight
1.41 kg
Compliances
RoHS conform
Certifications
EN 62208
IEC/EN 60670-24
IEC/EN 60670-24
Model Code
IKA-1/12-ST
Especificações do produto
Special features
IP65Protection Class IIPlastic enclosure gray (RAL 7035)
Type
Basic deviceIKA professional distribution boardInstallation distribution board
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
650 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK08
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP65
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 1000 V AC
10.9.3 Impulse withstand voltage
3.3 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
Fitted with:
Current circuit designation
Reserve section cover 6 space units
Basic device
Device support rails
Sealing caps
Neutral-/protective conductor terminal
Locking screws can be sealed
Reserve section cover 6 space units
Basic device
Device support rails
Sealing caps
Neutral-/protective conductor terminal
Locking screws can be sealed
Enclosure material
Plastic
Built-in height
0 mm
Built-in width
0 mm
Cable entry postion
Metric cable entries on top and bottom, side, back plate
Terminal type
Screw terminals
Built-in depth
70 mm
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
20 W
Closure type
Other
Cover/door color
Transparent
Cover/door model
With notch
Cover/door type
Door
Single
Single
RAL-number
7035
Width in number of modular spacings
12
Ambient operating temperature details
-25 °C - 40 °C
Application
Indoor (installation site)
Voltage rating at AC
415 V AC
Color
Gray
Light gray (RAL 7035)
Light gray (RAL 7035)
Number of rows
1
Frequency rating of contacts
50 Hz
Module rack type
Single-rail
Degree of protection
IP65
IK08 (impact resistance)
IK08 (impact resistance)
Number of module space units per row
12
Protection class
II (totally insulated)
Protective shrouding material
Plastic
Functions
Extension possible
Basic device
Basic device
Material
ABS (plastic)
Mounting method
Surface mounted (plaster)
DIN-rail
Surface mounting
DIN-rail
Surface mounting
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
40 W
Internal depth
60 mm
PE and N terminal number and cross section
PE: 6 x (2.5 mm² - 6 mm²) + 6 x (4 mm² - 10 mm²) + 1 x (10 mm² - 25 mm²) + 1 x (16 mm² - 35 mm²)
N: 6 x (2.5 mm² - 6 mm²) + 6 x (4 mm² - 10 mm²) + 1 x (10 mm² - 25 mm²) + 1 x (16 mm² - 35 mm²)
N: 6 x (2.5 mm² - 6 mm²) + 6 x (4 mm² - 10 mm²) + 1 x (10 mm² - 25 mm²) + 1 x (16 mm² - 35 mm²)
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| IKA-1/12-ST IKA-1/12-ST 174197 ES_174199.pdf | 3 Mbytes |
 |
