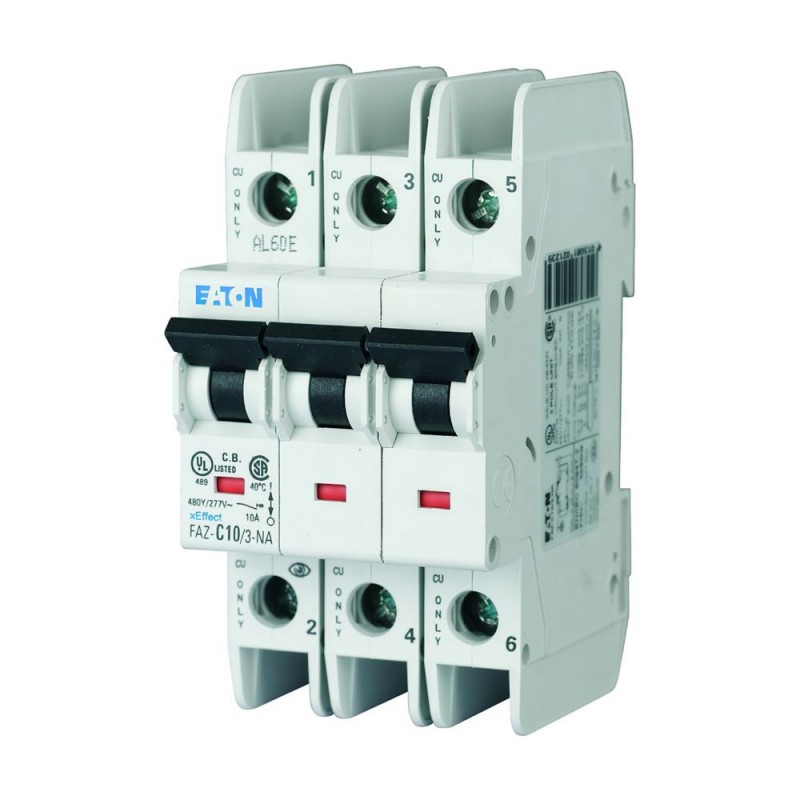

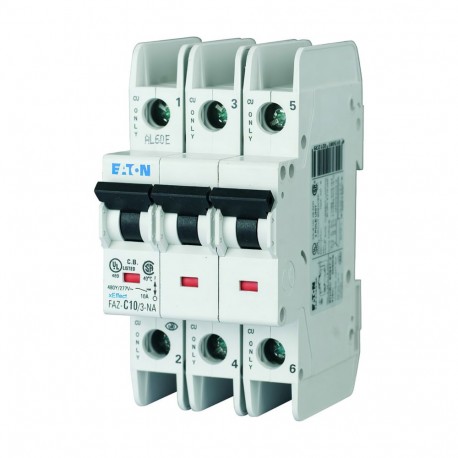

FAZ-B2/3-NA 132714 Y7-132714 EATON ELECTRIC MCB FAZ
FAZ-B2/3-NA
132714
Y7-132714
EATON-MOELLER
MCB FAZ
Disjuntor FAZ-NA, 2A, 3P, curva B
Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB. FAZ-NA, 3-pole, tripping characteristic: B, rated current In: 2 A, Switchgear for export to North America (UL-listed)
Disjuntor miniatura (MCB), FAZ-NA, 3 polos, característica de disparo: B, corrente nominal em: 2 A, painel de distribuição para exportação para a América do Norte (listado na UL)
Disjuntores, fusíveis > Interruptor magnetotérmico
Aparelhagem Modular - Industrial
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB
Catalog Number
132714
EAN
4015081296637
Product Length/Depth
105 mm
Product Height
75.5 mm
Product Width
53.1 mm
Product Weight
0.371 kg
Compliances
RoHS conform
Certifications
CSA (File No. 204453)
CE marking
UL (File No. E235139)
CSA (Class No. 1432-01)
North America (UL listed, CSA certified)
UL 489
Specially designed for North America, suitable as BCPD
IEC 60947-2
CSA-C22.2 No. 5-09
IEC/EN 60947-2
UL (Category Control Number DIVQ)
UL 489, CSA C22.2 No. 5
EN45545-2
IEC 61373
CE marking
UL (File No. E235139)
CSA (Class No. 1432-01)
North America (UL listed, CSA certified)
UL 489
Specially designed for North America, suitable as BCPD
IEC 60947-2
CSA-C22.2 No. 5-09
IEC/EN 60947-2
UL (Category Control Number DIVQ)
UL 489, CSA C22.2 No. 5
EN45545-2
IEC 61373
Model Code
FAZ-B2/3-NA
Programa de entrega
Application
Number of poles
Three-pole
Number of poles (total)
3
Number of poles (protected)
3
Tripping characteristic
B
Release characteristic
B
Amperage Rating
2 A
Type
- FAZ-NA
- Miniature circuit breaker
Dados técnicos - elétricos
Voltage type
AC
Voltage rating
277 V AC / 480 V AC
Voltage rating at DC
60 V DC
Voltage rating (IEC/EN 60947-2)
440 V
Voltage rating (UL)
480Y/277 V
Rated operational voltage (Ue) - max
415 V
Rated insulation voltage (Ui)
440 V
Rated impulse withstand voltage (Uimp)
4 kV
Frequency rating - min
50 Hz
Frequency rating - max
60 Hz
Rated switching capacity (IEC/EN 60947-2)
15 kA
Breaking capacity
10 kA (UL489)
Rated short-circuit breaking capacity (EN 60898) at 230 V
0 kA
Rated short-circuit breaking capacity (EN 60898) at 400 V
0 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 230 V
15 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 400 V
15 kA
Selectivity class
3
Overvoltage category
III
Pollution degree
2
Lifespan, electrical
20000 operations
Direction of incoming supply
As required
Dados técnicos - mecânicos
Frame
45 mm
Enclosure width
105 mm
Width in number of modular spacings
3
Built-in depth
70.5 mm
Mounting width per pole
17.7 mm
Mounting width
17.7 mm
Mounting Method
Top-hat rail IEC/EN 60715
Mounting position
As required
Degree of protection
UL/CSA Type: -
IP20
IP40 (when fitted)
IP20 (IEC)
IP20
IP40 (when fitted)
IP20 (IEC)
Terminals (top and bottom)
Twin-purpose terminals
Connectable conductor cross section (solid-core) - min
1 mm²
Connectable conductor cross section (solid-core) - max
25 mm²
Connectable conductor cross section (multi-wired) - min
1 mm²
Connectable conductor cross section (multi-wired) - max
25 mm²
Terminal protection
Finger and hand touch safe, DGUV VS3, EN 50274
Tightening torque
UL: 4 Nm (36 lb-in) for AWG 6
UL: 2.4 Nm (21 lb-in) for AWG 18 - AWG 12
Max. 2.4 Nm
UL: 2.8 Nm (25 lb-in) for AWG 10 - AWG 8
UL: 2.4 Nm (21 lb-in) for AWG 18 - AWG 12
Max. 2.4 Nm
UL: 2.8 Nm (25 lb-in) for AWG 10 - AWG 8
Verificação de design de acordo com a IEC/EN - dados técnicos
Rated operational current for specified heat dissipation (In)
2 A
Heat dissipation per pole, current-dependent
0 W
Equipment heat dissipation, current-dependent
4.3 W
Static heat dissipation, non-current-dependent
0 W
Heat dissipation capacity
0 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
75 °C
Verificação do design de acordo com a norma IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Informações adicionais
Current limiting class
3
Features
Additional equipment possible
Functions
Current limiting circuit breaker
Special features
Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Used with
Miniature circuit breaker
FAZ-NA
FAZ-NA
| Característica | Valor |
|---|---|
| Profundidade incorporada (EF000218) | 70.5 mm |
| Curva de funcionamento (EF000889) | B |
| Número de polos (total) (EF008618) | 3 |
| Número de polos protegidos (EF005548) | 3 |
| Corrente nominal especificada (EF000227) | 2 A |
| Tensão especificada de funcionamento (EF000228) | 415 V |
| Tensão nominal de isolamento Ui (EF001366) | 440 V |
| Tensão estipulada suportável ao choque (Uimp) (EF011980) | 4 kV |
| Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 230 V (EF009556) | 0 kA |
| Tipo de tensão (EF000187) | AC |
| Capacidade nominal de interrupção de curto-circuito Icn EN 60898 a 400 V (EF009555) | 0 kA |
| Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 em 230 V (EF009557) | 15 kA |
| Capacidade nominal de interrupção de curto-circuito Icu IEC 60947-2 a 400 V (EF009558) | 15 kA |
| Frequência (intervalo) (EF000416) | 50 Hz |
| Potência dissipada (EF005387) | 4.2 W |
| Classe de limitação de energia (I²t) (EF002568) | 3 |
| Instalação à face (EF007517) | Não |
| Comutação simultânea de neutro N (EF005997) | Não |
| Categoria de sobretensão (EF002569) | 3 |
| Grau de poluição (EF002570) | 2 |
| Possibilidade de equipamento adicional (EF008148) | Sim |
| Largura em número de módulos (EF002950) | 3 |
| Grau de proteção (IP) (EF005474) | IP20 |
| Temperatura ambiente durante a operação (EF007515) | -25 °C |
| Secção da ligação de cabo flexível (EF007343) | 1 mm² |
| Secção da ligação de cabo rígido (EF007337) | 1 mm² |
| Antideflagrante (EF004663) | Não |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| FAZ-B2/3-NA Y7-132714 132714 EN_190783.pdf | 80 Kbytes |
|
