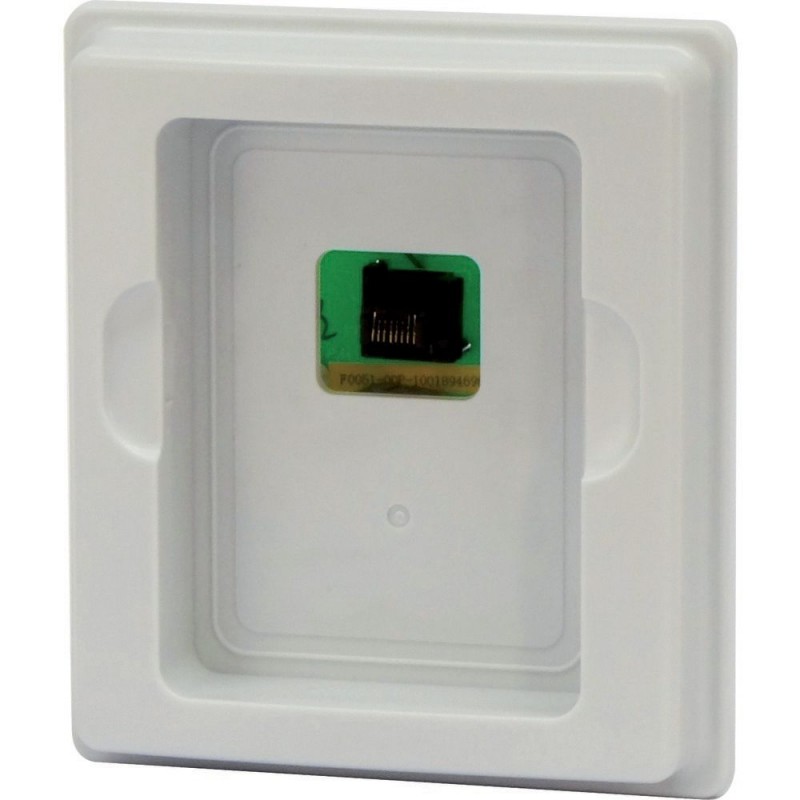

EATON - MOELLER DXG-KEY-HOLDER 7303203200P Y7-730-32032-00P - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

DXG-KEY-HOLDER 730-32032-00P Y7-730-32032-00P EATON ELECTRIC kit de montagem teclado externo

Referência: DXG-KEY-HOLDER

Código: 7303203200P

Número de catálogo: Y7-730-32032-00P

Fabricante: EATON - MOELLER

Descrição:

kit de montagem teclado externo
Kit de montagem de teclado externo para conversor DG1
Eaton DG1 Mounting bracket for DG1 variable frequency drive control unit DXG-KEY-HOLDER
Estrutura de montagem, Sub-range: Estrutura de montagem, Descrição: Estrutura de montagem para porta do painel de controle, Cabo de conexão, Para uso com: DXG-KEY-LCD

Categorias:

  • Aparelhos elétricos de baixa tensão > Acessórios para reguladores de frequência
  • EATON - MOELLER > Conversores de Frequência Power XL

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 27,77 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 5 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton DXG Mounting frame
Catalog Number
730-32032-00P
EAN
4015081721658
Product Length/Depth
55 mm
Product Height
165 mm
Product Width
135 mm
Product Weight
0.119 kg
Compliances
CE
Model Code
DXG-KEY-HOLDER

Especificações do produto

Product Category
Accessories
Type
Mounting frame for control panel door, Connecting cables
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Used with
DG1
DM1
Accessory/spare part type
Mounting set
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-10 °C

ETIM for 730-32032-00P Componentes industriais para Baixa Tensão (EC002025)

Nome da característicaTipo de acessório/peça de reposição (EF000215)
Valor da característicaConjunto de montagem
Nome da característicaAcessório (EF013236)
Valor da característicaSim
Nome da característicaPeça de substituição (EF013237)
Valor da característicaNão
