Ver maior

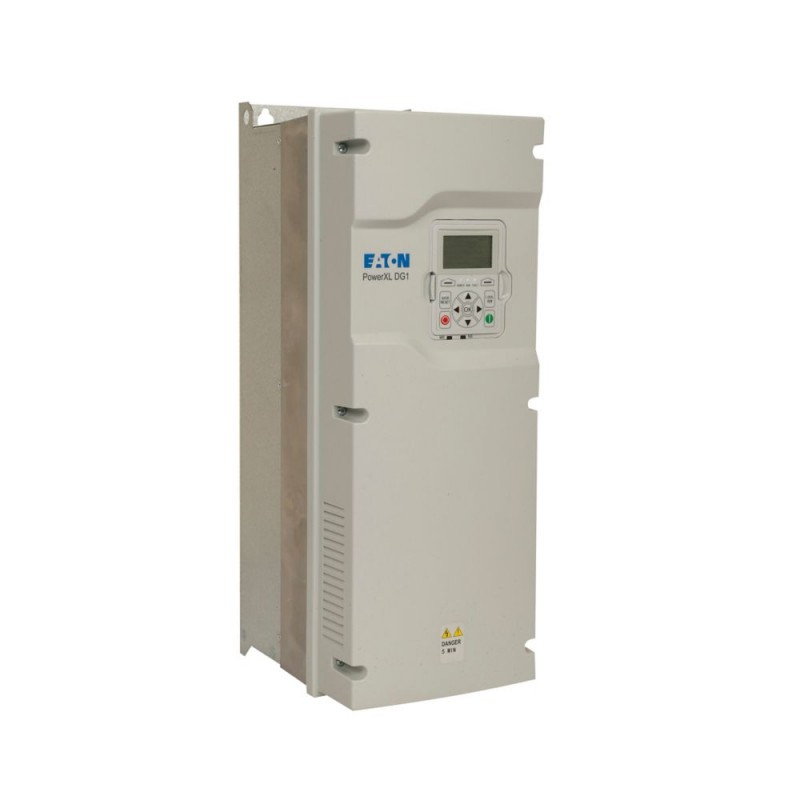

DG1-32048FB-C54C 9701-3103-00P Y7-9701-3103-00P EATON ELECTRIC Conv. de frec. Trif. 208 ... 240 VCA / 11kW /..
DG1-32048FB-C54C
9701310300P
Y7-9701-3103-00P
EATON-MOELLER
Conv. de frec. Trif. 208 ... 240 VCA / 11kW / 48A / IP54
Conversor de Frequência Ent: 3 x 230 V Sal: 3 x 230 V 48 A V/f,
Eaton DG1 Variable frequency drive, 230 V AC, 3-phase, 48 A, 11 kW, IP54/NEMA12, Brake chopper, DC link choke
Inversor de frequência, Referência do grupo de peças (por exemplo, DIL): DG1, Tensão nominal de operação: Eu = 230 V AC, 3 fases, 240 V AC, 3 fases, Tensão de saída com Ve: U2 = 230 V AC, 3 fases, 240 V AC, 3 fases, Tensão de rede (50/60 Hz): ULN = 208 (-15%) - 240 (+10%) V, Corrente nominal de operação Com 150% de sobrecarga: Ie = 48 A, Nota: Corrente nominal de funcionamento para frequência de comutação de 1 a 12 kHz e temperatura ambiente de +50 °C para 150 % de sobrecarga e +40 °C para 110 % de sobrecarga, Corrente nominal de funcionamento a 110 % de sobrecarga: Ie = 61 A, Nota: Ciclo de sobrecarga de 60 s a cada 600 s, Potência nominal do motor atribuída Nota: para 4 polos com ventilação interna e externa normal, motores assíncronos trifásicos com 1500 rpm-1 a 50 Hz ou 1800 min-1 a 60 Hz, ciclo de sobrecarga de 60 s a cada 600 s, a 230 V, 50 Hz, Potência nominal do motor 150 % Sobrecarga: P = 11 kW, 110 % Sobrecarga: P = 15 kW, 150 % Sobrecarga: IM = 38 A, 110 % Sobrecarga: IM = 51 A, Potência nominal do motor Nota: a 230 V, 60 Hz, Potência nominal do motor 150 % Sobrecarga: P = 15 HP, 110 % Sobrecarga: P = 20 HP, Potência nominal do motor 150 % Sobrecarga: IM = 42 A, 110 % Sobrecarga: IM = 54 A, Grau de proteção: IP54/NEMA12, Interface Fieldbus (integrada): Modbus RTU, Modbus TCP, BACnet MS/TP, Ethernet IP, Ligação Fieldbus (opcional): PROFIBUS, CANopen®, DeviceNet, SmartWire-DT, Equipado com: Filtro de supressão de interferências radioeléctricas, Protecção adicional para placa de circuitos impressos, Visor gráfico multilinhas, Interruptor picador de travões, Estrangulador de ligação DC, Tamanho da estrutura: FS3, Normas: Especificação para Requisitos Gerais: IEC/EN 61800-2, Requisitos EMC: IEC/EN 61800-3, Requisitos de Segurança: IEC/EN 61800-5
Aparelhos elétricos de baixa tensão > Conversor de frequência inferior a 1 kV
Conversores de Frequência Power XL
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton DG1 variable frequency drive
Catalog Number
9701-3103-00P
EAN
4015081734238
Product Length/Depth
265.1 mm
Product Height
558 mm
Product Width
204.6 mm
Product Weight
22 kg
Certifications
Certified by UL for use in Canada
CSA-C22.2 No. 274-13
UL
UL File No.: E134360
CE
IEC/EN 61800-3
IEC/EN61800-3
RoHS, ISO 9001
UL report applies to both US and Canada
EAC
IEC/EN61800-5
UL Category Control No.: NMMS, NMMS7
CUL
Specification for general requirements: IEC/EN 61800-2
C-Tick
Safety requirements: IEC/EN 61800-5
UL508
UkrSEPRO
CSA-C22.2 No. 274-13
UL
UL File No.: E134360
CE
IEC/EN 61800-3
IEC/EN61800-3
RoHS, ISO 9001
UL report applies to both US and Canada
EAC
IEC/EN61800-5
UL Category Control No.: NMMS, NMMS7
CUL
Specification for general requirements: IEC/EN 61800-2
C-Tick
Safety requirements: IEC/EN 61800-5
UL508
UkrSEPRO
Catalog Notes
The brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.
Model Code
DG1-32048FB-C54C
Especificações do produto
Product Category
Variable frequency drives
Features
Tool-less swapping of fan
Temperature-controlled fan
Parameterization: Fieldbus
Parameterization: Keypad
Parameterization: Power Xpert inControl
Temperature-controlled fan
Parameterization: Fieldbus
Parameterization: Keypad
Parameterization: Power Xpert inControl
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Control unit
Radio interference suppression filter
Internal DC link
PC connection
Brake chopper
IGBT inverter
Additional PCB protection
DC link choke
Multi-line graphic display
Breaking resistance
Radio interference suppression filter
Internal DC link
PC connection
Brake chopper
IGBT inverter
Additional PCB protection
DC link choke
Multi-line graphic display
Breaking resistance
Pollution degree
2
Climatic proofing
< 95 average relative humidity (RH), no condensation, no corrosion
Connection to SmartWire-DT
In conjunction with DXG-NET-SWD SmartWire DT module
Yes
Yes
Operating mode
Torque regulation
U/f control
Sensorless vector control (SLV)
Speed control with slip compensation
U/f control
Sensorless vector control (SLV)
Speed control with slip compensation
Frame size
FS3
Air volume capacity
144 m³/h
Altitude
Max. 3000 m
Max. 1000 m
Max. 2000 m for Corner Grounded TN Systems
Above 1000 m with 1 % derating per 100 m
Max. 1000 m
Max. 2000 m for Corner Grounded TN Systems
Above 1000 m with 1 % derating per 100 m
Environmental class
3C2, 3S2 (Air quality)
Application in domestic and commercial area permitted
Yes
Mains switch-on frequency
Maximum of one time every 60 seconds
Application in industrial area permitted
Yes
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-10 °C
Ambient operating temperature at 150% overload - max
50 °C
Ambient operating temperature at 150% overload - min
-30 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Apparent power at 230 V
24.3 kVA
Apparent power at 240 V
25.4 kVA
Assigned motor current IM at 220 - 240 V, 60 Hz, 150% overload
42 A
Assigned motor current IM at 230 V, 50 Hz, 110% overload
51 A
Assigned motor current IM at 230 V, 50 Hz, 150% overload
38 A
Assigned motor current IM at 230 V, 60 Hz, 110% overload
54 A
Mounting position
Vertical
Rated conditional short-circuit current (Iq)
100 kA
Relative symmetric net frequency tolerance
10 %
Relative symmetric net voltage tolerance
10 %
Protection
Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)
Heat dissipation details
Operation (with 150 % overload), allow for derating
Resolution
0.01 Hz (Frequency resolution, setpoint value)
Static heat dissipation, non-current-dependent Pvs
18.15 W
Switch-on threshold for the braking transistor
425 VDC
Voltage rating - max
240 VAC
Overvoltage category
III
Communication interface
CANopen®, optional
BACnet MS/TP, built in
DeviceNet, optional
Modbus TCP, built in
SmartWire-DT, optional
Modbus RTU, built in
Ethernet IP, built in
PROFIBUS, optional
BACnet MS/TP, built in
DeviceNet, optional
Modbus TCP, built in
SmartWire-DT, optional
Modbus RTU, built in
Ethernet IP, built in
PROFIBUS, optional
Converter type
U converter
Degree of protection
NEMA 12
IP54
IP54
Protocol
TCP/IP
MODBUS
CAN
PROFINET IO
BACnet
PROFIBUS
Other bus systems
DeviceNet
EtherNet/IP
MODBUS
CAN
PROFINET IO
BACnet
PROFIBUS
Other bus systems
DeviceNet
EtherNet/IP
Assigned motor power at 230/240 V, 60 Hz, 1-phase
15 HP
System configuration type
TN-S, TN-C, TN-C-S, TT, IT
Electromagnetic compatibility
1st and 2nd environments (according to EN 61800-3)
Assigned motor power at 230/240 V, 60 Hz, 3-phase, 110 % overload
20 HP
Braking resistance
10 Ω
Equipment heat dissipation, current-dependent Pvid
602 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Input current ILN at 110% overload
56 A
Input current ILN at 150% overload
44.4 A
Mains current distortion
30.8 %
Current limitation
0.1 - 2 x IH (CT), motor, main circuit
Number of slots
2 (expansion)
Braking torque
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
Adjustable to 150 % (I/Ie), DC - Main circuit
Max. 30 % MN, Standard - Main circuit
Adjustable to 150 %, DC - Main circuit
Adjustable to 150 % (I/Ie), DC - Main circuit
Max. 30 % MN, Standard - Main circuit
Adjustable to 150 %, DC - Main circuit
Cable length
150 m, screened, maximum permissible, Motor feeder
C2 ≤ 10 m, Radio interference level, maximum motor cable length
C3 ≤ 50 m, Radio interference level, maximum motor cable length
C2 ≤ 10 m, Radio interference level, maximum motor cable length
C3 ≤ 50 m, Radio interference level, maximum motor cable length
Functions
4-quadrant operation possible
Output voltage (U2)
230 V AC, 3-phase
240 V AC, 3-phase
240 V AC, 3-phase
Number of inputs (analog)
2
Number of inputs (digital)
8
Radio interference class
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
C1: with external filter, for conducted emissions only
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
C1: with external filter, for conducted emissions only
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Number of outputs (digital)
1
Starting current - max
200 %, IH, max. starting current (High Overload), For 2 seconds every 20 seconds, Power section
Number of phases (input)
3
Number of relay outputs
3 (parameterizable, 2 changeover contacts and 1 N/O, 6 A (240 V AC) / 6 A (24 V DC))
Number of phases (output)
3
Power consumption
602 W
Rated control supply voltage
10 V DC (Us, max. 10 mA)
Efficiency
97.7 % (η)
Rated control voltage (Uc)
24 V DC (external, max. 250 mA options incl.)
Supply frequency
50/60 Hz
Leakage current at ground IPE - max
8.2 mA
Mains voltage - max
240 V
Mains voltage - min
208 V
Nominal output current I2N
48 A
Number of HW-interfaces (industrial ethernet)
1
Number of HW-interfaces (other)
1
Number of HW-interfaces (parallel)
0
Number of HW-interfaces (RS-232)
0
Number of HW-interfaces (RS-422)
0
Number of HW-interfaces (RS-485)
1
Number of HW-interfaces (serial TTY)
0
Number of HW-interfaces (USB)
0
Number of interfaces (PROFINET)
0
Number of outputs (analog)
2
Output at linear load at rated output voltage - max
11 kW
Output at quadratic load at rated output voltage - max
15 kW
Output frequency - max
400 Hz
Output frequency - min
0 Hz
Output voltage - max
240 V
Overload current IL at 110% overload
67.1 A
Overload current IL at 150% overload
72 A
Shock resistance
UPS drop test (for weights inside the UPS frame)
Mechanical, According to EN 61800-5-1, IEC/EN 60068-2-27
Storage and transportation: maximum 15 g, 11 ms (inside the packaging)
Mechanical, According to EN 61800-5-1, IEC/EN 60068-2-27
Storage and transportation: maximum 15 g, 11 ms (inside the packaging)
Suitable for
Branch circuits, (UL/CSA)
Switching frequency
4 kHz, 1 - 12 kHz adjustable, fPWM, Power section, Main circuit
Rated operational voltage
230 V AC, 3-phase
240 V AC, 3-phase
240 V AC, 3-phase
Short-circuit protection rating
80 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring
Vibration
Resistance: 15.8 – 150 Hz, 1 g, Maximum acceleration amplitude
Resistance: 5 - 15.8 Hz, Amplitude 1 mm (peak)
Resistance: 5 - 150 Hz, According to EN 61800-5-1, IEC/EN 60068-2-6
Resistance: 5 - 15.8 Hz, Amplitude 1 mm (peak)
Resistance: 5 - 150 Hz, According to EN 61800-5-1, IEC/EN 60068-2-6
Rated frequency - max
66 Hz
Rated frequency - min
45 Hz
Rated operational current (Ie) at 110% overload
61 A
Rated operational current (Ie) at 150% overload
48 A
Rated operational current for specified heat dissipation (In)
48 A
Rated operational power at 220/230 V, 50 Hz, 1-phase
11 kW
Rated operational power at 220/230 V, 50 Hz, 3-phase, 110% overload
15 kW
Safety function/level
STO (Safe Torque Off, SIL1, PLc Cat 1)
Heat dissipation at current/speed
168 W at 25% current and 0% speed
193 W at 25% current and 50% speed
229 W at 100% current and 50% speed
267 W at 50% current and 50% speed
302 W at 50% current and 90% speed
381 W at 100% current and 0% speed
500 W at 50% current and 0% speed
605 W at 100% current and 90% speed
193 W at 25% current and 50% speed
229 W at 100% current and 50% speed
267 W at 50% current and 50% speed
302 W at 50% current and 90% speed
381 W at 100% current and 0% speed
500 W at 50% current and 0% speed
605 W at 100% current and 90% speed
| Característica | Valor |
|---|---|
| Tensão de rede (intervalo) (EF006780) | 208 V |
| Frequência da rede (standard) (EF006783) | 50/60 Hz |
| Número de fases de entrada (EF007117) | 3 |
| Número de fases de lançamento (EF006998) | 3 |
| Frequência de saída max. (EF007350) | 400 Hz |
| Máx. voltagem de saída (EF009560) | 240 V |
| Corrente nominal de saída I2N (EF009561) | 48 A |
| Máx. saída com carga quadrática na tensão de saída nominal (EF007366) | 15 kW |
| Máx. saída com carga linear à tensão de saída nominal (EF007364) | 11 kW |
| Consumo (potência em VA) (EF000346) | 602 W |
| Tolerância de frequência relativa da rede simétrica (EF007454) | 10 % |
| Tolerância de tensão relativa da rede simétrica (EF007453) | 10 % |
| Número de saídas analógicas (EF001995) | 2 |
| Número de entradas analógicas (EF001994) | 2 |
| Número de saídas digitais (EF001993) | 1 |
| Número de entradas digitais (EF001992) | 8 |
| Com unidade de controlo (EF001538) | Sim |
| Aplicação em área industrial permitida (EF007294) | Sim |
| Aplicação na área doméstica e comercial permitida (EF007295) | Sim |
| Suporta o protocolo TCP/IP (EF003050) | Sim |
| Suporta o protocolo PROFIBUS (EF003052) | Sim |
| Suporta o protocolo CAN (EF003053) | Sim |
| Suporta o protocolo INTERBUS (EF003054) | Não |
| Suporta o protocolo ASI (EF003051) | Não |
| Suporta o protocolo KNX (EF003055) | Não |
| Suporta o protocolo MODBUS (EF003057) | Sim |
| Suporta o protocolo Data-Highway (EF003058) | Não |
| Suporta o protocolo DeviceNet (EF003059) | Sim |
| Suporta o protocolo SUCONET (EF003060) | Não |
| Suporta protocolo LON (EF003017) | Não |
| Suporta o protocolo PROFINET IO (EF007525) | Sim |
| Suporta o protocolo PROFINET CBA (EF007524) | Não |
| Suporta o protocolo SERCOS (EF006657) | Não |
| Suporta o protocolo o Foundation Fieldbus (EF007522) | Não |
| Suporta o protocolo Ethernet/IP (EF007521) | Sim |
| Protocolo de suporte à segurança da interface AS no trabalho (EF007519) | Não |
| Suporta o protocolo DeviceNet Safety (EF007520) | Não |
| Suporta o protocolo INTERBUS-Safety (EF006662) | Não |
| Suporta o protocolo PROFIsafe (EF007526) | Não |
| Suporta o protocolo SafetyBUS p (EF007527) | Não |
| Suporta o protocolo BACnet (EF011944) | Sim |
| Suporta o protocolo outros sistemas de barramento (EF003062) | Sim |
| Número de interfaces industriais HW Ethernet industrial (EF003020) | 1 |
| Número de interfaces PROFINET (EF006932) | 0 |
| Número de interfaces HW RS-232 (EF003021) | 0 |
| Número de interfaces HW RS-422 (EF003022) | 0 |
| Número de interfaces HW RS-485 (EF003023) | 1 |
| Número de interfaces HW de série TTY (EF003024) | 0 |
| Número de interfaces HW USB (EF003025) | 0 |
| Número de interfaces HW paralelas (EF003026) | 0 |
| Número de interfaces HW outras (EF003027) | 1 |
| Com interface ótica (EF003028) | Não |
| Com conexão ao PC (EF006107) | Sim |
| Resistência à rutura integrada (EF007293) | Sim |
| Possível operação em 4 quadrantes (EF006803) | Sim |
| Tipo de conversor (EF006978) | Conversor U |
| Grau de proteção (IP) (EF005474) | IP54 |
| Grau de proteção (NEMA) (EF011959) | 12 |
| Altura (EF000040) | 558 mm |
| Largura (EF000008) | 204.6 mm |
| Profundidade (EF000049) | 265.1 mm |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| DG1-32048FB-C54C Y7-9701-3103-00P 9701310300P FR_730-32034-00P.pdf | 4 Mbytes |
|
Avaliações: (0) ▲
Não há comentários do produto ainda.
Adicionar avaliação
ocultar formulário
| Avaliação: |
|
| Nome: | |
| Email: | |
| Título: | |
| Opinión: | |
| Você recomendaria esse produto para comprar? | |
|
|
|
| Adicionar avaliação | |
Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
