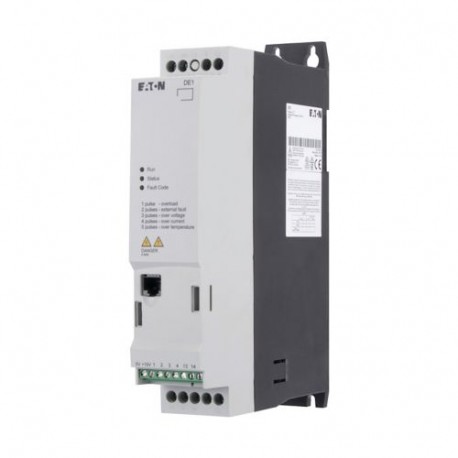

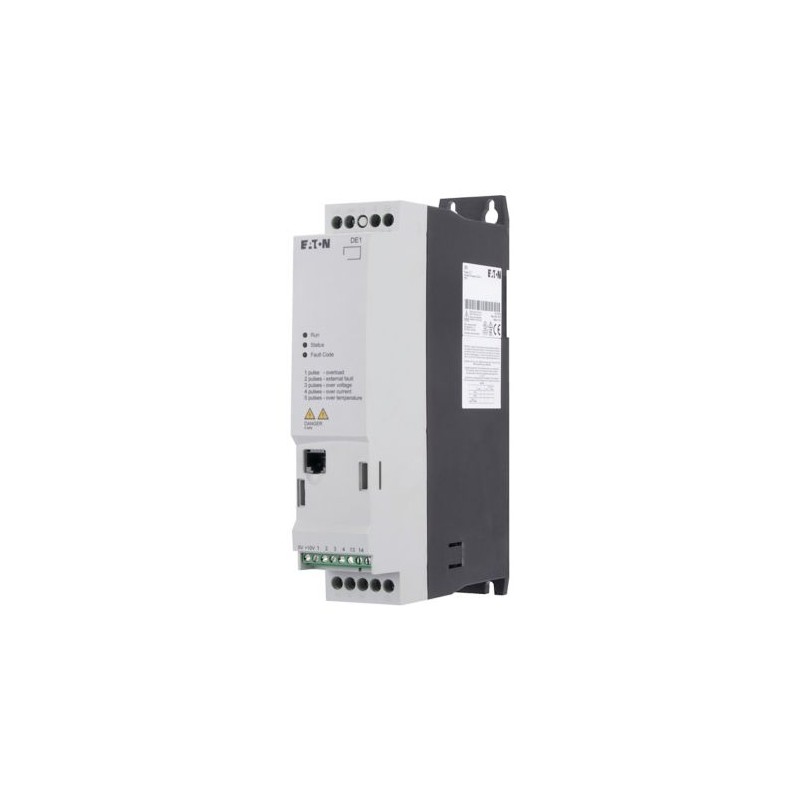

DE1-124D3NN-N20N 177362 Y7-177362 EATON ELECTRIC PowerXL Drive Série DE1
DE1-124D3NN-N20N
177362
Y7-177362
EATON-MOELLER
PowerXL Drive - Série DE1
Acionador de partida de velocidade variável; Ent: 1 x 230V; Sal: 3 x 230 V; 4.3A;
Eaton DE1 Acionador de partida de velocidade variável, Tensão operacional nominal 230 V AC, 1 fase, ou seja, 4,3 A, 0,75 kW, 1 HP
Partidas de velocidade variável, referência do grupo de peças (por exemplo, DIL): DE1, Tensão nominal de operação: UE = 230 V CA, 1fásico, 240 V CA, monofásico, Tensão de saída com Ve: U2 = 230 V CA, trifásico, 240 V CA, trifásico, Tensão de rede (50/60Hz): LSN = 200 (-10%) - 240 (+10%) V, Corrente nominal de operação Com 150% de sobrecarga: Ie = 4,3 A, Nota: Corrente nominal de operação a uma frequência de operação de 16 kHz e uma temperatura do ar ambiente de +50 °C, Nota: Ciclo de sobrecarga de 60 s a cada 600 s, Potência nominal do motor atribuída Nota: para motores assíncronos trifásicos de 4 pólos, com ventilação interna e externa normal com 1500 rpm-1 a 50 Hz ou 1800 min-1 a 60 Hz, Ciclo de sobrecarga de 60 s a cada 600 s, a 230 V, 50 Hz, potência nominal do motor 150 % Sobrecarga: p = 0,75 kW, 150 % Sobrecarga: IM = 3,2 A, potência nominal do motor atribuída Nota: a 220 - 240 V, 60 Hz, potência nominal do motor 150 % Sobrecarga: p = 1 HP, potência nominal do motor 150 % Sobrecarga: IM = 3,2 A, Tipo de proteção: IP20/NEMA 0, Interface/fieldbus (integrado): OP-Bus (RS485)/Modbus RTU, Tamanho da estrutura: FS1, Normas: Especificação de requisitos gerais: IEC/EN 61800-2, Requisitos de EMC: IEC/EN 61800-3, Requisitos de segurança: IEC/EN 61800-5-1
Aparelhos elétricos de baixa tensão > Conversor de frequência inferior a 1 kV
Conversores de Frequência Power XL
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton DE1 Variable speed starter
Catalog Number
177362
EAN
4015081718221
Product Length/Depth
169 mm
Product Height
230 mm
Product Width
45 mm
Product Weight
1.06 kg
Certifications
RCM
Specification for general requirements: IEC/EN 61800-2
UL Category Control No.: NMMS, NMMS7
IEC/EN61800-3
CUL
Safety requirements: IEC/EN 61800-5-1
Certified by UL for use in Canada
CE
UL 508C
IEC/EN61800-5
IEC/EN 61800-3
CSA-C22.2 No. 14
RoHS, ISO 9001
UL report applies to both US and Canada
UL File No.: E172143
UL
Specification for general requirements: IEC/EN 61800-2
UL Category Control No.: NMMS, NMMS7
IEC/EN61800-3
CUL
Safety requirements: IEC/EN 61800-5-1
Certified by UL for use in Canada
CE
UL 508C
IEC/EN61800-5
IEC/EN 61800-3
CSA-C22.2 No. 14
RoHS, ISO 9001
UL report applies to both US and Canada
UL File No.: E172143
UL
Catalog Notes
Overload cycle for 60 s every 600 s
Model Code
DE1-124D3NN-N20N
Especificações do produto
Amperage Rating
4.30A output
Horsepower
0.75 hp
Phase
Single-phase main, three-phase motor
Special features
Basic device
Type
PowerXL
Features
Parameterization: drivesConnect
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
PC connection
Climatic proofing
< 95 average relative humidity (RH), no condensation, no corrosion
Connection to SmartWire-DT
Yes
In conjunction with DX-NET-SWD3 SmartWire DT module
In conjunction with DX-NET-SWD3 SmartWire DT module
Operating mode
Speed control with slip compensation
U/f control
U/f control
Rated impulse withstand voltage (Uimp)
2000 V
Frame size
FS1
Altitude
Above 1000 m with 1 % derating per 100 m
Max. 2000 m
Max. 2000 m
Application in domestic and commercial area permitted
Yes
Mains switch-on frequency
Maximum of one time every 30 seconds
Ambient operating temperature - max
60 °C
Ambient operating temperature - min
-10 °C
Mains voltage - max
240 V
Output voltage - max
250 V
Relative symmetric net frequency tolerance
10 %
Relative symmetric net voltage tolerance
10 %
Series
Economy
Ambient operating temperature at 150% overload - max
60 °C
Ambient operating temperature at 150% overload - min
-10 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Apparent power at 230 V
1.71 kVA
Apparent power at 240 V
1.79 kVA
Assigned motor current IM at 110/120 V, 60 Hz, 150% overload
3.2 A
Assigned motor current IM at 115 V, 50 Hz, 150% overload
3.2 A
Application in industrial area permitted
Yes
Heat dissipation details
Operation (with 150 % overload)
Product category
Variable speed starter
Protection
Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)
Resolution
0.025 Hz (Frequency resolution, setpoint value)
Static heat dissipation, non-current-dependent Pvs
0 W
Voltage rating - max
240 V
Mounting position
Vertical
Overvoltage category
III
Communication interface
OP-Bus (RS485), built in
Modbus RTU, built in
Modbus RTU, built in
Converter type
U converter
Degree of protection
IP20
NEMA Other
NEMA Other
Assigned motor power at 115/120 V, 60 Hz, 1-phase
1 HP
Assigned motor power at 230/240 V, 60 Hz, 1-phase
1 HP
Assigned motor power at 460/480 V, 60 Hz
1 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
1 HP
Equipment heat dissipation, current-dependent Pvid
32 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Input current ILN at 150% overload
11.3 A
Mains current distortion
120 %
Assigned motor current IM at 220 - 240 V, 60 Hz, 150% overload
3.2 A
Assigned motor current IM at 230 V, 50 Hz, 150% overload
3.2 A
Protocol
MODBUS
Other bus systems
EtherNet/IP
Other bus systems
EtherNet/IP
Overload current IL at 150% overload
6.45 A
Rated frequency - max
66 Hz
Rated frequency - min
45 Hz
Rated operational current for specified heat dissipation (In)
4.3 A
Rated operational power at 220/230 V, 50 Hz, 1-phase
0.75 kW
Assigned motor current IM at 400 V, 50 Hz, 150% overload
3.2 A
Assigned motor current IM at 440 - 480 V, 60 Hz, 150% overload
3.2 A
Braking current
≤ 0.6 A (max. 6 A for 120 ms), Actuator for external motor brake
Electromagnetic compatibility
1st and 2nd environments (according to EN 61800-3)
Braking torque
Adjustable to 100 %, DC - Main circuit
Max. 30 % MN, Standard - Main circuit
Max. 30 % MN, Standard - Main circuit
Cable length
C3 ≤ 25 m, Radio interference level, maximum motor cable length
C1 ≤ 5 m, Radio interference level, maximum motor cable length
C2 ≤ 10 m, Radio interference level, maximum motor cable length
C1 ≤ 5 m, Radio interference level, maximum motor cable length
C2 ≤ 10 m, Radio interference level, maximum motor cable length
Output voltage (U2)
230 V AC, 3-phase
240 V AC, 3-phase
240 V AC, 3-phase
Delay time
< 10 ms, On-delay
< 10 ms, Off-delay
< 10 ms, Off-delay
Number of inputs (analog)
1 (parameterizable, 0 - 10 V DC, 0/4 - 20 mA)
Number of inputs (digital)
4 (parameterizable, 10 - 30 V DC)
Radio interference class
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
C1: for conducted emissions only
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
C1: for conducted emissions only
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Number of outputs (digital)
0
Starting current - max
200 %, IH, max. starting current (High Overload), For 1.875 seconds every 600 seconds, Power section
Number of phases (input)
1
Number of relay outputs
1 (parameterizable, N/O, 6 A (250 V, AC-1) / 5 A (30 V, DC-1))
Number of phases (output)
3
Power consumption
32 W
Rated control supply voltage
10 V DC (Us, max. 0.2 mA)
Supply frequency
50/60 Hz
Leakage current at ground IPE - max
< 10 mA (DC-operated)
< 3.5 mA (AC-operated)
< 3.5 mA (AC-operated)
Mains voltage - min
200 V
Nominal output current I2N
4.3 A
Number of HW-interfaces (industrial ethernet)
0
Number of HW-interfaces (other)
0
Number of HW-interfaces (parallel)
0
Number of HW-interfaces (RS-232)
0
Number of HW-interfaces (RS-422)
0
Number of HW-interfaces (RS-485)
1
Number of HW-interfaces (serial TTY)
0
Number of HW-interfaces (USB)
0
Number of interfaces (PROFINET)
0
Number of outputs (analog)
0
Output at linear load at rated output voltage - max
0.75 kW
Output at quadratic load at rated output voltage - max
0.75 kW
Output frequency - max
300 Hz
Output frequency - min
0 Hz
Short-circuit protection (external output circuits)
Type 1 coordination via the power bus' feeder unit, Main circuit
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, 11 ms
Suitable for
Branch circuits, (UL/CSA)
Switching frequency
16 kHz, 4 - 32 kHz adjustable (audible), fPWM, Power section, Main circuit
Rated operational current (Ie)
4.3 A at 150% overload (at an operating frequency of 16 kHz and an ambient air temperature of +50 °C)
Rated operational voltage
240 V AC, 1-phase
230 V AC, 1-phase
230 V AC, 1-phase
Short-circuit protection rating
15 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring
Vibration
Resistance: According to EN 61800-5-1
Heat dissipation at current/speed
10.3 W at 25% current and 0% speed
10.3 W at 25% current and 50% speed
10.9 W at 50% current and 0% speed
12.3 W at 50% current and 50% speed
15.3 W at 50% current and 90% speed
28.9 W at 100% current and 50% speed
30.9 W at 100% current and 90% speed
31.8 W at 100% current and 0% speed
10.3 W at 25% current and 50% speed
10.9 W at 50% current and 0% speed
12.3 W at 50% current and 50% speed
15.3 W at 50% current and 90% speed
28.9 W at 100% current and 50% speed
30.9 W at 100% current and 90% speed
31.8 W at 100% current and 0% speed
| Característica | Valor |
|---|---|
| Tensão de rede (intervalo) (EF006780) | 200 V |
| Frequência da rede (standard) (EF006783) | 50/60 Hz |
| Número de fases de entrada (EF007117) | 1 |
| Número de fases de lançamento (EF006998) | 3 |
| Frequência de saída max. (EF007350) | 300 Hz |
| Máx. voltagem de saída (EF009560) | 250 V |
| Corrente nominal de saída I2N (EF009561) | 4.3 A |
| Máx. saída com carga quadrática na tensão de saída nominal (EF007366) | 0.75 kW |
| Máx. saída com carga linear à tensão de saída nominal (EF007364) | 0.75 kW |
| Consumo (potência em VA) (EF000346) | 32 W |
| Tolerância de frequência relativa da rede simétrica (EF007454) | 10 % |
| Tolerância de tensão relativa da rede simétrica (EF007453) | 10 % |
| Número de saídas analógicas (EF001995) | 0 |
| Número de entradas analógicas (EF001994) | 1 |
| Número de saídas digitais (EF001993) | 0 |
| Número de entradas digitais (EF001992) | 4 |
| Com unidade de controlo (EF001538) | Não |
| Aplicação em área industrial permitida (EF007294) | Sim |
| Aplicação na área doméstica e comercial permitida (EF007295) | Sim |
| Suporta o protocolo TCP/IP (EF003050) | Não |
| Suporta o protocolo PROFIBUS (EF003052) | Não |
| Suporta o protocolo CAN (EF003053) | Não |
| Suporta o protocolo INTERBUS (EF003054) | Não |
| Suporta o protocolo ASI (EF003051) | Não |
| Suporta o protocolo KNX (EF003055) | Não |
| Suporta o protocolo MODBUS (EF003057) | Sim |
| Suporta o protocolo Data-Highway (EF003058) | Não |
| Suporta o protocolo DeviceNet (EF003059) | Não |
| Suporta o protocolo SUCONET (EF003060) | Não |
| Suporta protocolo LON (EF003017) | Não |
| Suporta o protocolo PROFINET IO (EF007525) | Não |
| Suporta o protocolo PROFINET CBA (EF007524) | Não |
| Suporta o protocolo SERCOS (EF006657) | Não |
| Suporta o protocolo o Foundation Fieldbus (EF007522) | Não |
| Suporta o protocolo Ethernet/IP (EF007521) | Sim |
| Protocolo de suporte à segurança da interface AS no trabalho (EF007519) | Não |
| Suporta o protocolo DeviceNet Safety (EF007520) | Não |
| Suporta o protocolo INTERBUS-Safety (EF006662) | Não |
| Suporta o protocolo PROFIsafe (EF007526) | Não |
| Suporta o protocolo SafetyBUS p (EF007527) | Não |
| Suporta o protocolo BACnet (EF011944) | Não |
| Suporta o protocolo outros sistemas de barramento (EF003062) | Sim |
| Número de interfaces industriais HW Ethernet industrial (EF003020) | 0 |
| Número de interfaces PROFINET (EF006932) | 0 |
| Número de interfaces HW RS-232 (EF003021) | 0 |
| Número de interfaces HW RS-422 (EF003022) | 0 |
| Número de interfaces HW RS-485 (EF003023) | 1 |
| Número de interfaces HW de série TTY (EF003024) | 0 |
| Número de interfaces HW USB (EF003025) | 0 |
| Número de interfaces HW paralelas (EF003026) | 0 |
| Número de interfaces HW outras (EF003027) | 0 |
| Com interface ótica (EF003028) | Não |
| Com conexão ao PC (EF006107) | Sim |
| Resistência à rutura integrada (EF007293) | Não |
| Possível operação em 4 quadrantes (EF006803) | Não |
| Tipo de conversor (EF006978) | Conversor U |
| Grau de proteção (IP) (EF005474) | IP20 |
| Grau de proteção (NEMA) (EF011959) | Outro |
| Altura (EF000040) | 230 mm |
| Largura (EF000008) | 45 mm |
| Profundidade (EF000049) | 169 mm |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
Avaliações: (0) ▲
Não há comentários do produto ainda.
Adicionar avaliação
ocultar formulário
| Avaliação: |
|
| Nome: | |
| Email: | |
| Título: | |
| Opinión: | |
| Você recomendaria esse produto para comprar? | |
|
|
|
| Adicionar avaliação | |
Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
