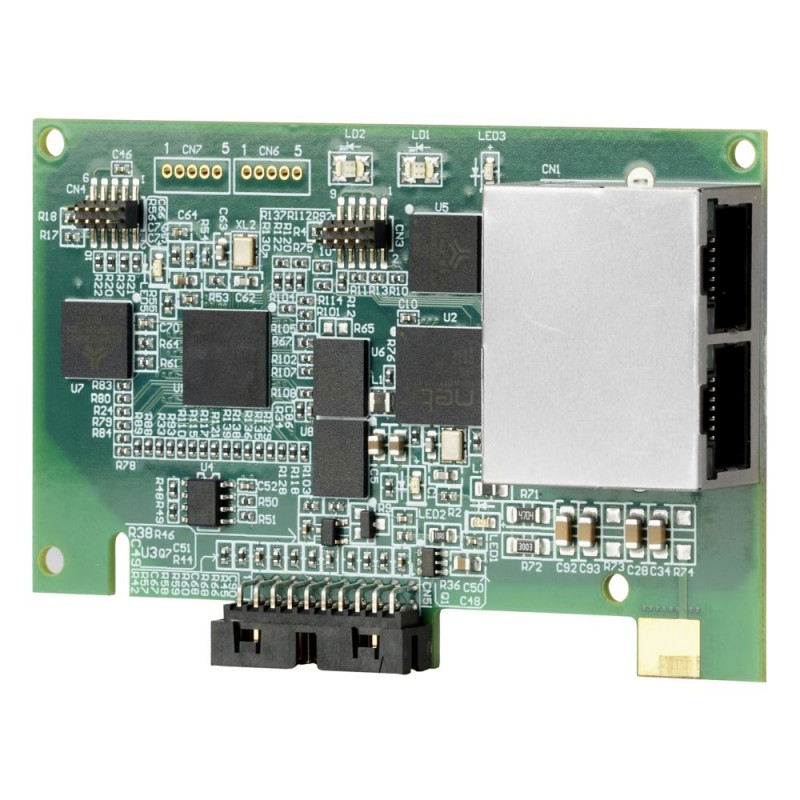

EATON - MOELLER DXG-NET-PROFINET EP-400003 Y7-400003 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

DXG-NET-PROFINET EP-400003 Y7-400003 EATON ELECTRIC Módulo de comunicação Profinet para DG1

Referência: DXG-NET-PROFINET

Código: EP-400003

Número de catálogo: Y7-400003

Fabricante: EATON - MOELLER

Descrição:

Módulo de comunicação Profinet para DG1
PROFINET communication module for DG1 variable frequency drives
Módulo Fieldbus, Protocolo de barramento: PROFINET, Descrição: 2 x RJ45, 8 polos, Para uso com: DG1, Tecnologia de conexão: Módulo plug-in

Categorias:

  • Aparelhos elétricos de baixa tensão > Acessórios para reguladores de frequência
  • EATON - MOELLER > Conversores de Frequência Power XL

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 229,81 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 5 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton DXG Communication module
Catalog Number
EP-400003
EAN
4015081998241
Product Length/Depth
86 mm
Product Height
18 mm
Product Width
56.3 mm
Product Weight
0.033 kg
Certifications
CE
Model Code
DXG-NET-PROFINET

Especificações do produto

Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Used with
DG1
Accessory/spare part type
Communication module
Connection type
Plug-in connection
2 x RJ45, 8 pole
Degree of protection
IP00
Protocol
PROFINET

ETIM for EP-400003 Componentes industriais para Baixa Tensão (EC002025)

Nome da característicaTipo de acessório/peça de reposição (EF000215)
Valor da característicaMódulo de comunicação
Nome da característicaAcessório (EF013236)
Valor da característicaSim
Nome da característicaPeça de substituição (EF013237)
Valor da característicaNão
