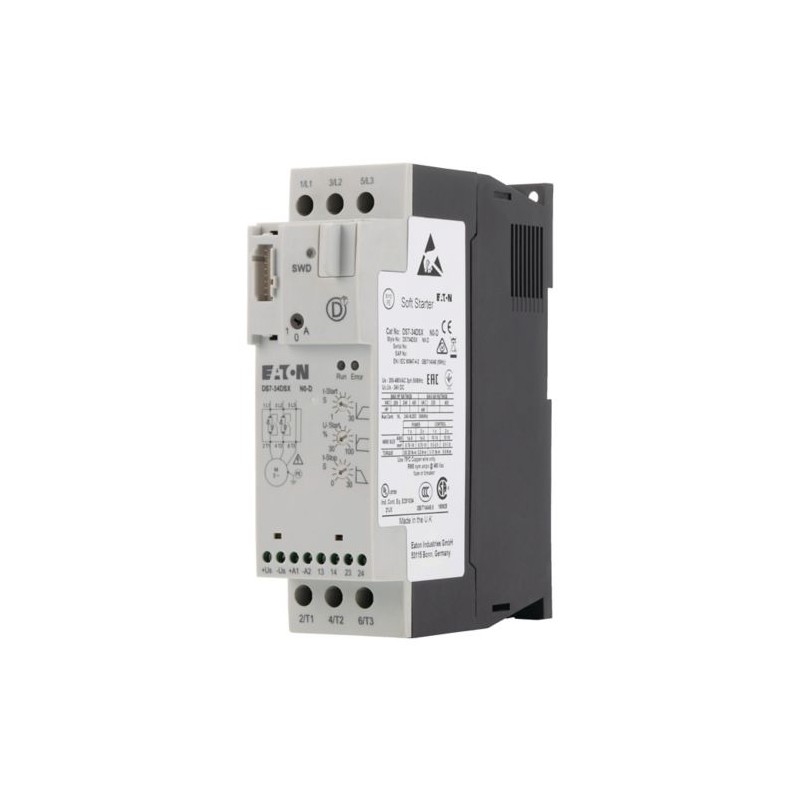

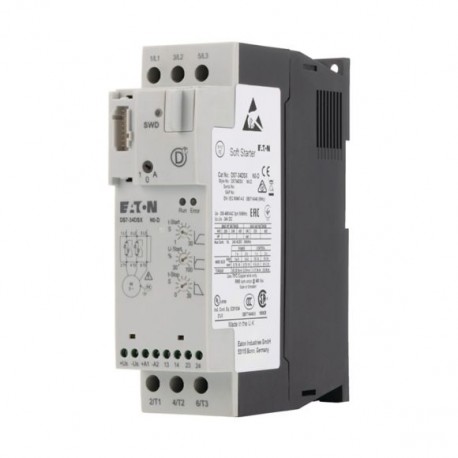

DS7-34DSX032N0-D 134950 Y7-134950 EATON ELECTRIC Soft starter, +interface SWD, 3p, 32A, 200-480VAC, us 24VAC..
DS7-34DSX032N0-D
134950
Y7-134950
EATON-MOELLER
Soft starter, +interface SWD, 3p, 32A, 200-480VAC, us=24VAC/DC
Partida suave DS7; 32º-A; 200-480 V CA; US=24 V CA/DC; Com SmartWire-DT
Eaton DS7 Soft starter, 32 A, 200 - 480 V AC, 24 V DC, Frame size: FS2, Communication Interfaces: SmartWire-DT
Partida suave, Gama de produtos: SmartWire-DT slave, Descrição: Com contatos de ramificação interna, Função: Partidas suaves para cargas trifásicas, Tensão de alimentação (50/60 Hz): ULN= 200 - 480 V AC, Tensão de alimentação: Us= 24 V DC, Tensão de controle: UC= 24 V DC, Potência nominal do motor atribuída (padrão, conexão em linha) a 400 V, 50 Hz: P= 15 kW, a 460 V, 60 Hz: P= 25 HP, AC-53 Corrente nominal de operação: Ie= 32 A, Tensão nominal de operação: Ue= 200 V, 230 V, 400 V, 480 V, Conexão SmartWire-DT: Sim, Tamanho do quadro: FS2, Normas: IEC/EN 60947-4-2, UL 508, CSA22.2-14
Aparelhos elétricos de baixa tensão > Acionador de partida progressivo
Arranques suaves padrão
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton DS7 Soft starter
Catalog Number
134950
EAN
4015081317653
Product Length/Depth
126 mm
Product Height
150 mm
Product Width
45 mm
Product Weight
0.4 kg
Certifications
IEC/EN 60947-4-2
UL 508
CSA-C22.2 No 14-05
CSA
CSA-C22.2 No 0-M91
GB 14048.6
UkrSEPRO
CSA22.2-14
UL
C-Tick
CE
UL 508
CSA-C22.2 No 14-05
CSA
CSA-C22.2 No 0-M91
GB 14048.6
UkrSEPRO
CSA22.2-14
UL
C-Tick
CE
Model Code
DS7-34DSX032N0-D
Especificações do produto
Type
Soft starter for three-phase loads
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Internal bypass
Internal bypass contacts
Internal bypass contacts
Pollution degree
2
Class
Other
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-3
Damp heat, constant, to IEC 60068-2-3
Connection to SmartWire-DT
Yes
Frame size
FS2
Altitude
Above 1000 m with 1 % derating per 100 m
Max. 2000 m
Max. 2000 m
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-5 °C
Ambient storage temperature - max
60 °C
Ambient storage temperature - min
-25 °C
Assigned motor power at 200/208 V, 60 Hz, 3-phase
10 HP
Assigned motor power at 220/230 V, 60 Hz, 3-phase
10 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
25 HP
Equipment heat dissipation, current-dependent Pvid
1.5 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Mains voltage - max
480 V
Mains voltage - min
200 V
Output voltage
250 V AC (relay outputs)
Number of outputs
2 Relay Outputs (TOR, Ready)
Screwdriver size
PZ2, 1 x 6 mm, Terminal screw, Standard screwdriver
0.6 x 5.5 mm/1 x 6 mm, Terminal screws, Control circuit cables
0.6 x 5.5 mm/1 x 6 mm, Terminal screws, Control circuit cables
Voltage type
DC
Rated operational voltage (Ue) - min
230 V
Rated power three-phase motor, inline, at 230 V
7.5 kW
Rated power three-phase motor, inline, at 400 V
15 kW
Rated power three-phase motor, inside delta, at 230 V
0 kW
Rated power three-phase motor, inside delta, at 400 V
0 kW
Static heat dissipation, non-current-dependent Pvs
1.5 W
Voltage rating - max
480 V
Application
Product category
SmartWire-DT slave
Protection
Finger and back-of-hand proof, Protection against direct contact
Mounting position
Vertical
Drop-out voltage
0 - 3 V, DC operated
Overvoltage category
II
Degree of protection
NEMA 1
IP20
IP20
Current consumption
50 mA, Control circuit, Regulator supply
1.6 mA, Control circuit, Digital inputs, External 24 V
1.6 mA, Control circuit, Digital inputs, External 24 V
Current limitation
(0 - 8) x Ie, Soft start function
Functions
Current limitation, with PKE
Min. ramp time 1 s - fast switching (semiconductor contactor)
Suppression of closing transients
Soft start function
Potential isolation between power and control sections
Single direction
Suppression of DC components for motors
Min. ramp time 1 s - fast switching (semiconductor contactor)
Suppression of closing transients
Soft start function
Potential isolation between power and control sections
Single direction
Suppression of DC components for motors
Delay time
0 - 30 s, Soft start function, Ramp times
Overload cycle
AC-53a: 3 - 5: 75 - 10
Drop-out time
350 ms, Control circuit, Digital Inputs, DC operated
Pick-up voltage
17.3 - 27 V DC
Radio interference class
Class B (EN 55011)
Fault memory
8 Faults
Pick-up time
250 ms at DC
Interfaces
SmartWire-DT (built-in)
Rated control voltage (Uc)
24 V DC
24 V DC (-15 %/+10 %) or via SmartWire-DT
24 V DC (-15 %/+10 %) or via SmartWire-DT
Supply frequency
50/60 Hz, fLN, Main circuit
Terminal capacity (stranded)
1 x 16 mm², Main cables
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at DC - max
24 V
Rated control supply voltage (Us) at DC - min
24 V
Rated operational current (Ie) at AC-11
1 A
Rated operational current (Ie) at AC-53
32 A
Rated operational current for specified heat dissipation (In)
32 A
Rated operational power at 220/230 V, 50 Hz
7.5 kW
Rated operational power at 400 V, 50 Hz
15 kW
Rated operational voltage (Ue) - max
480 V
Vibration resistance
2M2 to EN 60721-3-2
Ramp/run-up time
1 - 30 s
Shock resistance
8 g, 11 ms, Mechanical
Suitable for
Branch circuits, (UL/CSA)
Tightening torque
3.2 Nm
1.2 Nm, Screw terminals, Control circuit cables
1.2 Nm, Screw terminals, Control circuit cables
Short-circuit protection rating
3 x 170M1366, Type „2“ coordination (additional with the fuses for coordination type „1“), Main conducting paths
PKM0-32 (+ CL-PKZ0), Type “1” coordination, Main conducting paths
PKM0-32 (+ CL-PKZ0), Type “1” coordination, Main conducting paths
Start voltage
Min. 30 %, Soft start function, Start voltage = turn-off voltage
Max. 100 %, Soft start function, Start voltage = turn-off voltage
Max. 100 %, Soft start function, Start voltage = turn-off voltage
Terminal capacity (flexible with ferrule)
2 x (0.5 - 0.75) mm², Control circuit cables
1 x (0.5 - 1.5) mm², Control circuit cables
1 x (0.75 - 16) mm², Main cables
2 x (0.75 - 10) mm², Main cables
1 x (0.5 - 1.5) mm², Control circuit cables
1 x (0.75 - 16) mm², Main cables
2 x (0.75 - 10) mm², Main cables
Terminal capacity (solid)
2 x (0.5 - 1.0) mm², Control circuit cables
1 x (0.75 - 16) mm², Main cables
2 x (0.75 - 10) mm², Main cables
1 x (0.5 - 2.5) mm², Control circuit cables
1 x (0.75 - 16) mm², Main cables
2 x (0.75 - 10) mm², Main cables
1 x (0.5 - 2.5) mm², Control circuit cables
Terminal capacity (solid/stranded AWG)
18 - 6, Main cables
18 - 14, Control circuit cables
18 - 14, Control circuit cables
| Característica | Valor |
|---|---|
| Corrente nominal de operação Ie a 40° C Tu (EF007039) | 32 A |
| Tensão nominal de operação Ue (EF002418) | 230 V |
| Motor trifásico de potência nominal, em linha, a 230 V (EF007053) | 7.5 kW |
| Motor trifásico de potência nominal, em linha, a 400 V (EF007054) | 15 kW |
| Motor trifásico de potência nominal, triângulo interno, a 230 V (EF007055) | 0 kW |
| Motor trifásico com potência nominal, triângulo interno, a 400 V (EF007056) | 0 kW |
| Função (EF000030) | Direção única |
| Bypass interno (EF009214) | Sim |
| Com display (EF000458) | Não |
| Controlo de torque (EF009215) | Não |
| Temperatura ambiente avaliada sem redução (EF007074) | 40 °C |
| Tensão de alimentação de corrente nominal de 50 Hz AC (EF003978) | 0 V |
| Tensão de alimentação de corrente nominal de 60 Hz CA (EF003979) | 0 V |
| Tensão de alimentação de corrente nominal DC (EF003980) | 24 V |
| Tipo de tensão para atuação (EF008242) | DC |
| Proteção integrada contra sobrecarga do motor (EF007297) | Não |
| Classe de engate/gatilho (EF006668) | Outro |
| Grau de proteção (IP) (EF005474) | IP20 |
| Grau de proteção (NEMA) (EF011959) | 1 |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON EMS EN.pdf | 1 Mbytes |
|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| DS7-34DSX032N0-D Y7-134950 134950 ES_171744.pdf | 2 Mbytes |
|
