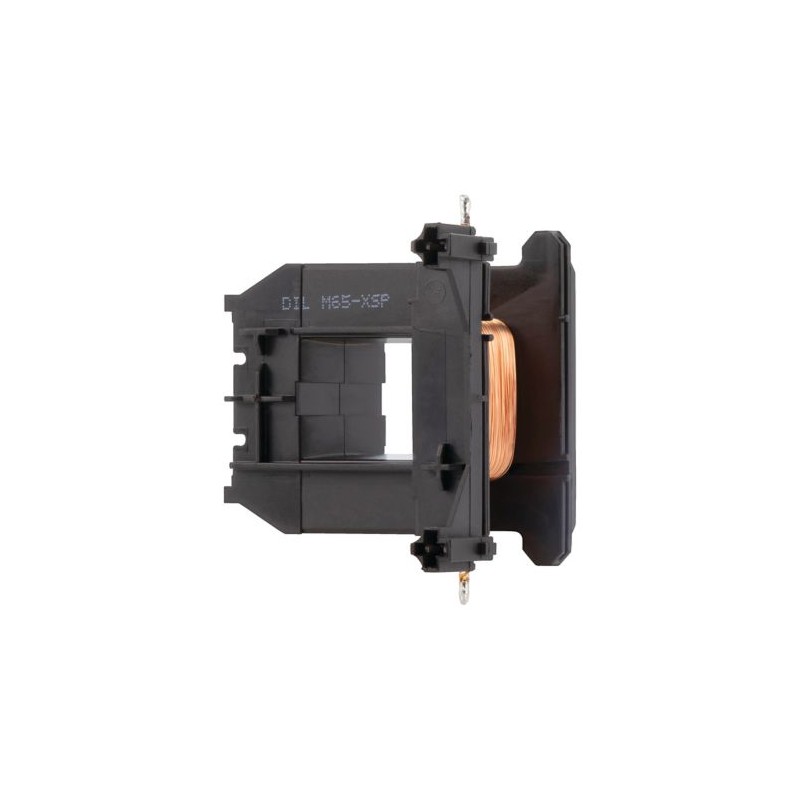

EATON - MOELLER DILM65-XSP(230V50HZ,240V60HZ) 281171 Y7-281171 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

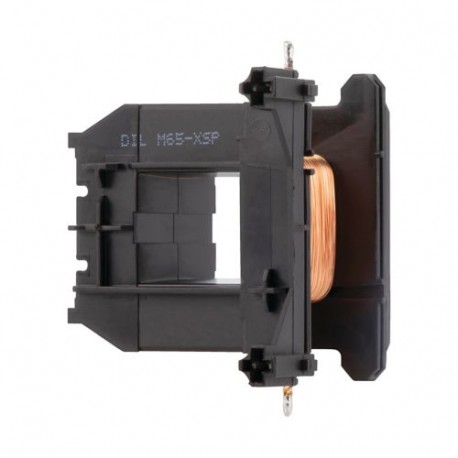

DILM65-XSP(230V50HZ,240V60HZ) 281171 Y7-281171 EATON ELECTRIC Bobina XTCERENCOILDF dinheiro DILM65 para DILM..

Referência: DILM65-XSP(230V50HZ,240V60HZ)

Código: 281171

Número de catálogo: Y7-281171

Fabricante: EATON - MOELLER

Descrição:

Bobina XTCERENCOILDF dinheiro DILM65 para DILM40
Bobina de substituição para contatores DILM40... 72 230 V 50 Hz, 240 V 60 Hz
Eaton Moeller® series DILM Replacement coil, Tool-less plug connection, 230 V 50 Hz, 240 V 60 Hz, AC, For use with: DILM40, DILM50, DILM65, DILM72, DILMP63, DILMP80
Bobina de substituição, Técnica de conexão: Conexão sem ferramentas, Tensão de acionamento: 230 V 50 Hz, 240 V 60 Hz, Tensão CA/CC: CA, Para uso com: DILM40, DILM50, DILM65, DILM72, DILMP63, DILMP80, DILM40 - DILM72

Categorias:

  • Aparelhos elétricos de baixa tensão > Bobina para contator
  • EATON - MOELLER > Contatores até 170A

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 27,36 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 5 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series DILM replacement coil
Catalog Number
281171
EAN
4015082811716
Product Length/Depth
69 mm
Product Height
48 mm
Product Width
56 mm
Product Weight
0.071 kg
Certifications
CSA File No.: 012528
UL File No.: E29096
CSA-C22.2 No. 14-05
UL Category Control No.: NLDX
UL
UL 508
IEC/EN 60947-4-1
CE
CSA
CSA Class No.: 2411-03, 3211-04
Model Code
DILM65-XSP(230V50HZ,240V60HZ)

General

Accessories
Individual coils
Product category
Accessories
Voltage type
AC

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Magnet system

Rated control supply voltage (Us) at AC, 50 Hz - min
230 V
Rated control supply voltage (Us) at AC, 50 Hz - max
230 V
Rated control supply voltage (Us) at AC, 60 Hz - min
240 V
Rated control supply voltage (Us) at AC, 60 Hz - max
240 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V

Design verification

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 281171 Componentes industriais para Baixa Tensão (EC001043)

Nome da característicaTensão de alimentação de corrente nominal de 50 Hz AC (EF003978)
Valor da característica230 V
Nome da característicaTensão de alimentação de corrente nominal de 60 Hz CA (EF003979)
Valor da característica240 V
Nome da característicaTensão de alimentação de corrente nominal DC (EF003980)
Valor da característica0 V
Nome da característicaTipo de tensão para atuação (EF008242)
Valor da característicaAC
