DC1-344D1FB-A6SOE1 199434 Y7-199434 EATON ELECTRIC DC1-344D1FB-A6SOE1
DC1-344D1FB-A6SOE1
199434
Y7-199434
EATON-MOELLER
DC1-344D1FB-A6SOE1

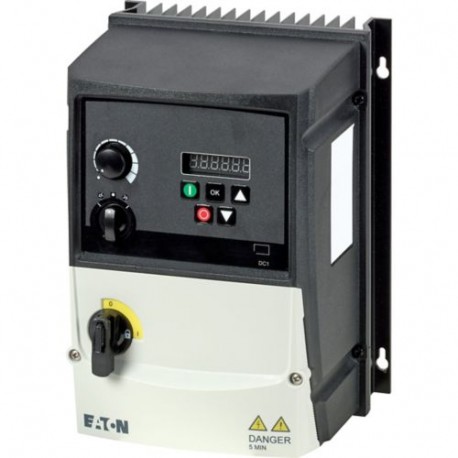

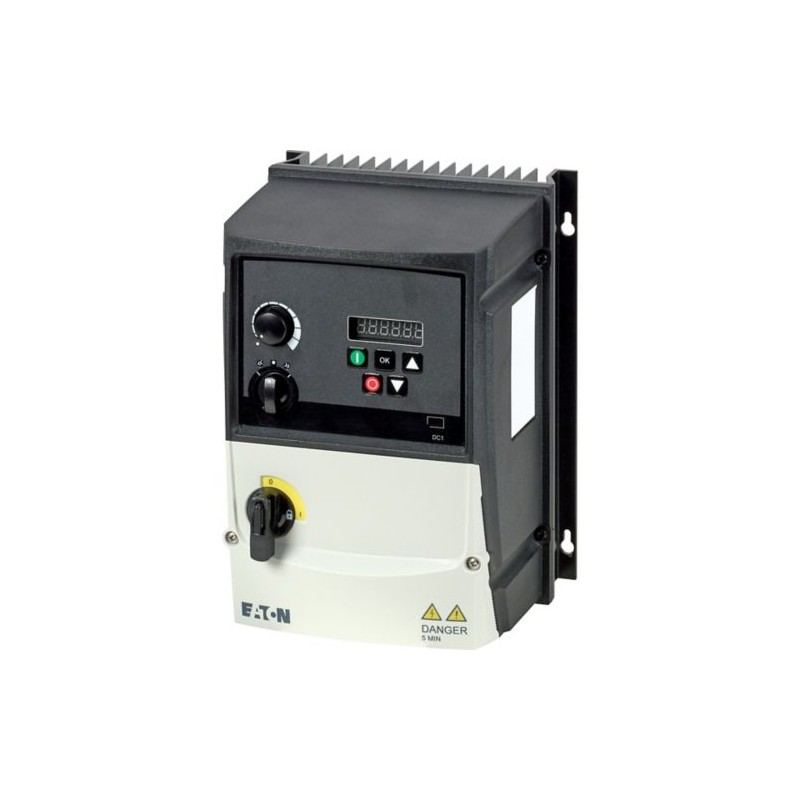

Eaton DC1 Variable frequency drive, 400 V AC, 3-phase, 4.1 A, 1.5 kW, IP66/NEMA 4X, Radio interference suppression filter, Brake chopper, 7-digital display assembly, Local controls, Additional PCB protection, UV resistant, FS2
Inversor de frequência, Referência do grupo de peças (por exemplo, DIL): DC1, Tensão nominal de operação: EU = 400 V AC, 3 fases, 480 V AC, 3 fases, Tensão de saída com Ve: U2 = 400 V AC, 3 fases, 480 V AC, 3 fases, Tensão de rede (50/60 Hz): ULN = 380 (-10%) - 480 (+10%) V, Corrente nominal de operação Com 150% de sobrecarga: Ie = 4,1 A, Nota: Corrente nominal de operação a uma frequência de operação de 6 kHz e uma temperatura do ar ambiente de +40 °C, Nota: Ciclo de sobrecarga de 60 s a cada 600 s, Potência nominal do motor atribuída Nota: Para motores assíncronos trifásicos normais de quatro pólos com ventilação interna e externa com 1500 rpm a 50 Hz e 1800 rpm a 60 Hz, Ciclo de sobrecarga de 60 s a cada 600 s, a 400 V, 50 Hz, potência nominal do motor 150 % Sobrecarga: p = 1,5 kW, 150 % sobrecarga: IM = 3,6 A, potência nominal do motor Nota: a 440 - 480 V, 60 Hz, potência nominal do motor 150 % Sobrecarga: p = 2 HP, potência nominal do motor 150 % sobrecarga: IM = 3,4 A, Grau de proteção: IP66/NEMA 4X, Interface Fieldbus (integrada): OP-Bus (RS485)/Modbus RTU, CANopen®, Conexão Fieldbus (opcional): SmartWire-DT, Equipado com: Filtro de supressão de interferência de rádio, Helicóptero de freio, Conjunto de 7 displays digitais, Controles locais, Proteção adicional para placa de circuito impresso, Resistente a UV, Tamanho do quadro: FS2, Normas: Requisitos gerais: IEC/EN 61800-2, Requisitos EMV: EEC/EN 61800-3, Requisitos de segurança: IEC/EN 61800-5-1
Aparelhos elétricos de baixa tensão > Conversor de frequência inferior a 1 kV
Conversores de Frequência Power XL
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton DC1 Variable frequency drive
Catalog Number
199434
Product Length/Depth
182 mm
Product Height
257 mm
Product Width
188 mm
Product Weight
3.5 kg
Certifications
CUL
IEC/EN 61800-2
RoHS, ISO 9001
CE
UkrSEPRO
CSA-C22.2 No. 14
Certified by UL for use in Canada
UL report applies to both US and Canada
EAC
IEC/EN 61800-3
IEC/EN61800-5
UL Listed
CE marking
UL
UL 508C
UL Category Control No.: NMMS, NMMS7
RCM
IEC/EN 61800-5-1
UL File No.: E172143
IEC/EN 61800-2
RoHS, ISO 9001
CE
UkrSEPRO
CSA-C22.2 No. 14
Certified by UL for use in Canada
UL report applies to both US and Canada
EAC
IEC/EN 61800-3
IEC/EN61800-5
UL Listed
CE marking
UL
UL 508C
UL Category Control No.: NMMS, NMMS7
RCM
IEC/EN 61800-5-1
UL File No.: E172143
Catalog Notes
Model Code
DC1-344D1FB-A6SOE1
Especificações do produto
Features
Parameterization: Fieldbus
Parameterization: Keypad
Parameterization: drivesConnect
Parameterization: drivesConnect mobile (App)
Parameterization: Keypad
Parameterization: drivesConnect
Parameterization: drivesConnect mobile (App)
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Additional PCB protection
UV resistance
PC connection
Breaking resistance
Control unit
7-digital display assembly
Brake chopper
Local controls
IGBT inverter
Radio interference suppression filter
Internal DC link
UV resistance
PC connection
Breaking resistance
Control unit
7-digital display assembly
Brake chopper
Local controls
IGBT inverter
Radio interference suppression filter
Internal DC link
Climatic proofing
< 95 average relative humidity (RH), no condensation, no corrosion
Connection to SmartWire-DT
No
Operating mode
U/f control
Synchronous reluctance motors
Sensorless vector control (SLV)
BLDC motors
Speed control with slip compensation
PM motors
Synchronous reluctance motors
Sensorless vector control (SLV)
BLDC motors
Speed control with slip compensation
PM motors
Rated impulse withstand voltage (Uimp)
2000 V
Frame size
FS2
Altitude
Max. 4000 m
Above 1000 m with 1 % derating per 100 m
Above 1000 m with 1 % derating per 100 m
Application in domestic and commercial area permitted
Yes
Mains switch-on frequency
Maximum of one time every 30 seconds
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-20 °C
Mains voltage - max
480 V
Output voltage - max
500 V
Relative symmetric net frequency tolerance
10 %
Relative symmetric net voltage tolerance
10 %
Ambient storage temperature - max
60 °C
Ambient storage temperature - min
-40 °C
Apparent power at 400 V
2.84 kVA
Apparent power at 480 V
3.41 kVA
Assigned motor current IM at 110/120 V, 60 Hz, 150% overload
3.4 A
Assigned motor current IM at 115 V, 50 Hz, 150% overload
3.6 A
Application in industrial area permitted
Yes
Product category
Variable frequency drives
Protection
Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)
Resolution
0.1 Hz (Frequency resolution, setpoint value)
Switch-on threshold for the braking transistor
780 VDC
Voltage rating - max
480 V
Mounting position
Vertical
Overvoltage category
III
Communication interface
SmartWire-DT, optional
Modbus RTU, built in
OP-Bus (RS485), built in
CANopen®, built in
Modbus RTU, built in
OP-Bus (RS485), built in
CANopen®, built in
Converter type
U converter
Degree of protection
IP66
NEMA 4X
NEMA 4X
Assigned motor power at 115/120 V, 60 Hz, 1-phase
2 HP
Assigned motor power at 230/240 V, 60 Hz, 1-phase
2 HP
Assigned motor power at 460/480 V, 60 Hz
2 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
2 HP
Braking resistance
250 Ω
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Input current ILN at 150% overload
5.6 A
Mains current distortion
120 %
Assigned motor current IM at 220 - 240 V, 60 Hz, 150% overload
3.4 A
Assigned motor current IM at 230 V, 50 Hz, 150% overload
3.6 A
Protocol
CAN
MODBUS
EtherNet/IP
Other bus systems
MODBUS
EtherNet/IP
Other bus systems
Overload current IL at 150% overload
6.15 A
Rated frequency - max
62 Hz
Rated frequency - min
48 Hz
Rated operational power at 380/400 V, 50 Hz, 3-phase
1.5 kW
Assigned motor current IM at 400 V, 50 Hz, 150% overload
3.6 A
Assigned motor current IM at 440 - 480 V, 60 Hz, 150% overload
3.4 A
System configuration type
AC supply systems with earthed center point
Braking current
≤ 0.6 A (max. 6 A for 120 ms), Actuator for external motor brake
Electromagnetic compatibility
1st and 2nd environments (according to EN 61800-3)
Braking torque
Max. 30 % MN, Standard - Main circuit
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
Cable length
150 m, unscreened, maximum permissible cable length
C3 ≤ 25 m, maximum motor cable length
100 m, screened, maximum permissible cable length
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
C2 ≤ 5 m, maximum motor cable length
200 m, screened, with motor choke, maximum permissible cable length
C3 ≤ 25 m, maximum motor cable length
100 m, screened, maximum permissible cable length
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
C2 ≤ 5 m, maximum motor cable length
200 m, screened, with motor choke, maximum permissible cable length
Functions
4-quadrant operation possible
Output voltage (U2)
400 V AC, 3-phase
480 V AC, 3-phase
480 V AC, 3-phase
Delay time
< 10 ms, On-delay
< 10 ms, Off-delay
< 10 ms, Off-delay
Number of inputs (analog)
2 (parameterizable, 0 - 10 V DC, 0/4 - 20 mA)
Number of inputs (digital)
4 (parameterizable, 10 - 30 V DC)
Radio interference class
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Number of outputs (digital)
1
Starting current - max
175 %, IH, max. starting current (High Overload), For 2.5 seconds every 600 seconds, Power section
Number of phases (input)
3
Number of relay outputs
1 (parameterizable, N/O, 6 A (250 V, AC-1) / 5 A (30 V, DC-1))
Number of phases (output)
3
Power consumption
66.5 W
Rated control supply voltage
10 V DC (Us, max. 10 mA)
Efficiency
97 % (η)
Supply frequency
50/60 Hz
Leakage current at ground IPE - max
12.6 mA
Mains voltage - min
380 V
Nominal output current I2N
4.1 A
Number of HW-interfaces (industrial ethernet)
0
Number of HW-interfaces (other)
0
Number of HW-interfaces (parallel)
0
Number of HW-interfaces (RS-232)
0
Number of HW-interfaces (RS-422)
0
Number of HW-interfaces (RS-485)
1
Number of HW-interfaces (serial TTY)
0
Number of HW-interfaces (USB)
0
Number of interfaces (PROFINET)
0
Number of outputs (analog)
1
Output at linear load at rated output voltage - max
1.5 kW
Output at quadratic load at rated output voltage - max
1.5 kW
Output frequency - max
500 Hz
Output frequency - min
0 Hz
Short-circuit protection (external output circuits)
Type 1 coordination via the power bus' feeder unit, Main circuit
Suitable for
Branch circuits, (UL/CSA)
Switching frequency
8 kHz, 4 - 32 kHz adjustable (audible), fPWM, Power section, Main circuit
Rated operational current (Ie)
4.1 A at 150% overload (at an operating frequency of 6 kHz and an ambient air temperature of +40 °C)
Rated operational voltage
400 V AC, 3-phase
480 V AC, 3-phase
480 V AC, 3-phase
Short-circuit protection rating
6 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring
Heat dissipation at current/speed
29 W at 25% current and 0% speed
31 W at 25% current and 50% speed
31 W at 50% current and 0% speed
35 W at 50% current and 50% speed
39 W at 100% current and 0% speed
41 W at 50% current and 90% speed
47 W at 100% current and 50% speed
55 W at 100% current and 90% speed
31 W at 25% current and 50% speed
31 W at 50% current and 0% speed
35 W at 50% current and 50% speed
39 W at 100% current and 0% speed
41 W at 50% current and 90% speed
47 W at 100% current and 50% speed
55 W at 100% current and 90% speed
| Característica | Valor |
|---|---|
| Mains voltage (EF006780) | 380 V |
| Mains frequency (EF006783) | 50/60 Hz |
| Number of phases input (EF007117) | 3 |
| Number of phases output (EF006998) | 3 |
| Max. output frequency (EF007350) | 500 Hz |
| Max. output voltage (EF009560) | 500 V |
| Nominal output current I2N (EF009561) | 4.1 A |
| Max. output at quadratic load at rated output voltage (EF007366) | 1.5 kW |
| Max. output at linear load at rated output voltage (EF007364) | 1.5 kW |
| Power consumption (EF000346) | 66.5 W |
| Relative symmetric net frequency tolerance (EF007454) | 10 % |
| Relative symmetric net voltage tolerance (EF007453) | 10 % |
| Number of analogue outputs (EF001995) | 1 |
| Number of analogue inputs (EF001994) | 2 |
| Number of digital outputs (EF001993) | 1 |
| Number of digital inputs (EF001992) | 4 |
| With control element (EF001538) | true |
| Application in industrial area permitted (EF007294) | true |
| Application in domestic- and commercial area permitted (EF007295) | true |
| Supporting protocol for TCP/IP (EF003050) | false |
| Supporting protocol for PROFIBUS (EF003052) | false |
| Supporting protocol for CAN (EF003053) | true |
| Supporting protocol for INTERBUS (EF003054) | false |
| Supporting protocol for ASI (EF003051) | false |
| Supporting protocol for KNX (EF003055) | false |
| Supporting protocol for Modbus (EF003057) | true |
| Supporting protocol for Data-Highway (EF003058) | false |
| Supporting protocol for DeviceNet (EF003059) | false |
| Supporting protocol for SUCONET (EF003060) | false |
| Supporting protocol for LON (EF003017) | false |
| Supporting protocol for PROFINET IO (EF007525) | false |
| Supporting protocol for PROFINET CBA (EF007524) | false |
| Supporting protocol for SERCOS (EF006657) | false |
| Supporting protocol for Foundation Fieldbus (EF007522) | false |
| Supporting protocol for EtherNet/IP (EF007521) | true |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | false |
| Supporting protocol for DeviceNet Safety (EF007520) | false |
| Supporting protocol for INTERBUS-Safety (EF006662) | false |
| Supporting protocol for PROFIsafe (EF007526) | false |
| Supporting protocol for SafetyBUS p (EF007527) | false |
| Supporting protocol for BACnet (EF011944) | false |
| Supporting protocol for other bus systems (EF003062) | true |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 1 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| With optical interface (EF003028) | false |
| With PC connection (EF006107) | true |
| Integrated breaking resistance (EF007293) | true |
| 4-quadrant operation possible (EF006803) | true |
| Type of converter (EF006978) | U converter |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X |
| Height (EF000040) | 257 mm |
| Width (EF000008) | 188 mm |
| Depth (EF000049) | 182 mm |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
Avaliações: (0) ▲
Não há comentários do produto ainda.
Adicionar avaliação
ocultar formulário
| Avaliação: |
|
| Nome: | |
| Email: | |
| Título: | |
| Opinión: | |
| Você recomendaria esse produto para comprar? | |
|
|
|
| Adicionar avaliação | |
Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
