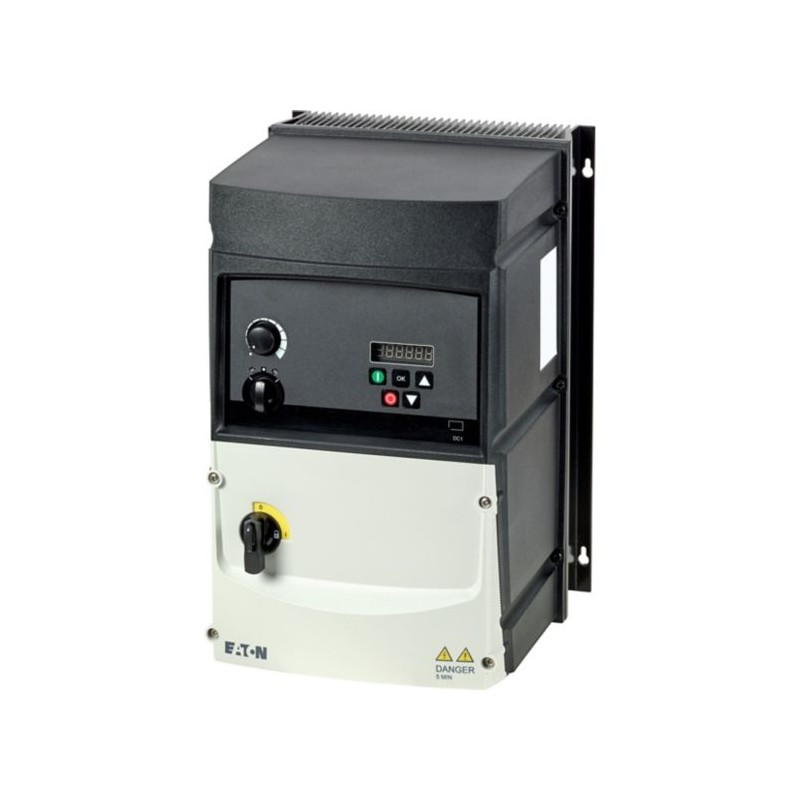

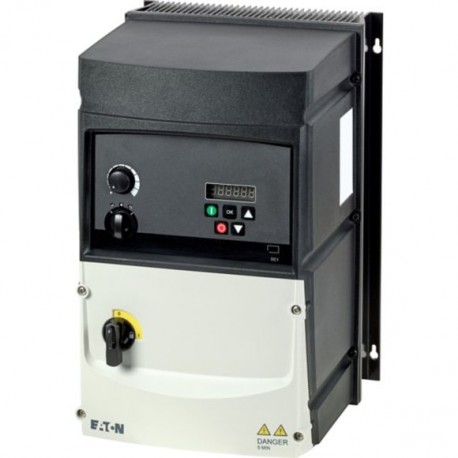

DC1-32030FB-A6SOE1 199426 Y7-199426 EATON ELECTRIC DC1-32030FB-A6SOE1
DC1-32030FB-A6SOE1
199426
Y7-199426
EATON-MOELLER
DC1-32030FB-A6SOE1
Eaton DC1 Variable frequency drive, 230 V AC, 3-phase, 30 A, 7.5 kW, IP66/NEMA 4X, Radio interference suppression filter, Brake chopper, 7-digital display assembly, Local controls, Additional PCB protection, UV resistant, FS4
Inversor de frequência, referência do grupo de peças (por exemplo, DIL): DC1, Tensão nominal de funcionamento: Ue = 230 V AC, 3 fases, 240 V AC, 3 fases, Tensão de saída com Ve: U2 = 230 V AC, 3 fases, 240 V AC, 3 fases, Tensão de rede (50/60Hz): LSN = 200 (-10%) - 240 (+10%) V, corrente nominal de operação Com 150% de sobrecarga: Ou seja, = 30 A, Nota: Corrente nominal de funcionamento a uma frequência de funcionamento de 6 kHz e uma temperatura do ar ambiente de +40 °C, Nota: Ciclo de sobrecarga para 60 s a cada 600 s, Capacidade nominal do motor Nota: Para motores assíncronos trifásicos de quatro polos com ventilação interna e externa normal com 1500 rpm a 50 Hz e 1800 rpm a 60 Hz, Ciclo de sobrecarga de 60 s a cada 600 s, a 230 V, 50 Hz, Potência nominal 150 % Sobrecarga: P = 7,5 kW, 150 % Sobrecarga: IM = 30 A, Classificação atribuída Nota: em 220 - 240 V, 60 Hz, Potência nominal 150 % Sobrecarga: P = 10 kW, Potência nominal do motor 150 % Sobrecarga: IM = 30 A, Grau de proteção: IP66/NEMA 4X, Interface/fieldbus (incorporado): OP-Bus (RS485)/Modbus RTU, CANopen®, Conexão Fieldbus (opcional): SmartWire-DT, Equipado com: filtro de supressão de interferência de rádio, cortador de freio, 7 conjunto de display digital, controles locais, proteção adicional de PCB, resistente a UV, tamanho do quadro: FS4, Normas: Requisitos gerais: IEC/EN 61800-2, Requisitos EMV: IEC/EN 61800-3, Requisitos de segurança: IEC/EN 61800-5-1
Aparelhos elétricos de baixa tensão > Conversor de frequência inferior a 1 kV
Conversores de Frequência Power XL
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton DC1 Variable frequency drive
Catalog Number
199426
EAN
4015081978151
Product Length/Depth
275 mm
Product Height
360 mm
Product Width
240 mm
Product Weight
9.5 kg
Certifications
UL Listed
IEC/EN 61800-2
Certified by UL for use in Canada
CUL
IEC/EN61800-5
UL File No.: E172143
UL
UL 508C
RoHS, ISO 9001
UkrSEPRO
RCM
EAC
UL report applies to both US and Canada
CE marking
CE
CSA-C22.2 No. 14
IEC/EN 61800-5-1
UL Category Control No.: NMMS, NMMS7
IEC/EN 61800-3
IEC/EN 61800-2
Certified by UL for use in Canada
CUL
IEC/EN61800-5
UL File No.: E172143
UL
UL 508C
RoHS, ISO 9001
UkrSEPRO
RCM
EAC
UL report applies to both US and Canada
CE marking
CE
CSA-C22.2 No. 14
IEC/EN 61800-5-1
UL Category Control No.: NMMS, NMMS7
IEC/EN 61800-3
Catalog Notes
Model Code
DC1-32030FB-A6SOE1
Especificações do produto
Features
Parameterization: Keypad
Parameterization: drivesConnect
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: drivesConnect
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
PC connection
Internal DC link
Brake chopper
Additional PCB protection
Local controls
UV resistance
7-digital display assembly
Radio interference suppression filter
Control unit
Breaking resistance
IGBT inverter
Internal DC link
Brake chopper
Additional PCB protection
Local controls
UV resistance
7-digital display assembly
Radio interference suppression filter
Control unit
Breaking resistance
IGBT inverter
Climatic proofing
< 95 average relative humidity (RH), no condensation, no corrosion
Connection to SmartWire-DT
No
Operating mode
PM motors
Sensorless vector control (SLV)
Synchronous reluctance motors
Speed control with slip compensation
BLDC motors
U/f control
Sensorless vector control (SLV)
Synchronous reluctance motors
Speed control with slip compensation
BLDC motors
U/f control
Rated impulse withstand voltage (Uimp)
2000 V
Frame size
FS4
Altitude
Max. 4000 m
Above 1000 m with 1 % derating per 100 m
Above 1000 m with 1 % derating per 100 m
Application in domestic and commercial area permitted
Yes
Mains switch-on frequency
Maximum of one time every 30 seconds
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-20 °C
Mains voltage - max
240 V
Output voltage - max
250 V
Relative symmetric net frequency tolerance
10 %
Relative symmetric net voltage tolerance
10 %
Ambient storage temperature - max
60 °C
Ambient storage temperature - min
-40 °C
Apparent power at 230 V
6.9 kVA
Apparent power at 240 V
7.2 kVA
Assigned motor current IM at 110/120 V, 60 Hz, 150% overload
30 A
Assigned motor current IM at 115 V, 50 Hz, 150% overload
30 A
Application in industrial area permitted
Yes
Product category
Variable frequency drives
Protection
Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)
Resolution
0.1 Hz (Frequency resolution, setpoint value)
Switch-on threshold for the braking transistor
390 VDC
Voltage rating - max
240 V
Mounting position
Vertical
Overvoltage category
III
Communication interface
SmartWire-DT, optional
CANopen®, built in
Modbus RTU, built in
OP-Bus (RS485), built in
CANopen®, built in
Modbus RTU, built in
OP-Bus (RS485), built in
Converter type
U converter
Degree of protection
IP66
NEMA 4X
NEMA 4X
Assigned motor power at 115/120 V, 60 Hz, 1-phase
10 HP
Assigned motor power at 230/240 V, 60 Hz, 1-phase
10 HP
Assigned motor power at 460/480 V, 60 Hz
10 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
10 HP
Braking resistance
15 Ω
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Input current ILN at 150% overload
33.3 A
Mains current distortion
120 %
Assigned motor current IM at 220 - 240 V, 60 Hz, 150% overload
30 A
Assigned motor current IM at 230 V, 50 Hz, 150% overload
30 A
Protocol
CAN
EtherNet/IP
Other bus systems
MODBUS
EtherNet/IP
Other bus systems
MODBUS
Overload current IL at 150% overload
45 A
Rated frequency - max
62 Hz
Rated frequency - min
48 Hz
Rated operational power at 220/230 V, 50 Hz, 1-phase
7.5 kW
Assigned motor current IM at 400 V, 50 Hz, 150% overload
30 A
Assigned motor current IM at 440 - 480 V, 60 Hz, 150% overload
30 A
System configuration type
AC supply systems with earthed center point
Braking current
≤ 0.6 A (max. 6 A for 120 ms), Actuator for external motor brake
Electromagnetic compatibility
1st and 2nd environments (according to EN 61800-3)
Braking torque
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
Cable length
C3 ≤ 25 m, maximum motor cable length
C2 ≤ 5 m, maximum motor cable length
100 m, screened, maximum permissible cable length
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
200 m, screened, with motor choke, maximum permissible cable length
150 m, unscreened, maximum permissible cable length
C2 ≤ 5 m, maximum motor cable length
100 m, screened, maximum permissible cable length
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
200 m, screened, with motor choke, maximum permissible cable length
150 m, unscreened, maximum permissible cable length
Functions
4-quadrant operation possible
Output voltage (U2)
240 V AC, 3-phase
230 V AC, 3-phase
230 V AC, 3-phase
Delay time
< 10 ms, On-delay
< 10 ms, Off-delay
< 10 ms, Off-delay
Number of inputs (analog)
2 (parameterizable, 0 - 10 V DC, 0/4 - 20 mA)
Number of inputs (digital)
4 (parameterizable, 10 - 30 V DC)
Radio interference class
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Number of outputs (digital)
1
Starting current - max
175 % IH
Number of phases (input)
3
Number of relay outputs
1 (parameterizable, N/O, 6 A (250 V, AC-1) / 5 A (30 V, DC-1))
Number of phases (output)
3
Power consumption
304 W
Rated control supply voltage
10 V DC (Us, max. 10 mA)
Efficiency
97 % (η)
Supply frequency
50/60 Hz
Leakage current at ground IPE - max
6.9 mA
Mains voltage - min
200 V
Nominal output current I2N
30 A
Number of HW-interfaces (industrial ethernet)
0
Number of HW-interfaces (other)
0
Number of HW-interfaces (parallel)
0
Number of HW-interfaces (RS-232)
0
Number of HW-interfaces (RS-422)
0
Number of HW-interfaces (RS-485)
1
Number of HW-interfaces (serial TTY)
0
Number of HW-interfaces (USB)
0
Number of interfaces (PROFINET)
0
Number of outputs (analog)
1
Output at linear load at rated output voltage - max
7.5 kW
Output at quadratic load at rated output voltage - max
7.5 kW
Output frequency - max
500 Hz
Output frequency - min
0 Hz
Short-circuit protection (external output circuits)
Type 1 coordination via the power bus' feeder unit, Main circuit
Suitable for
Branch circuits, (UL/CSA)
Switching frequency
8 kHz, 4 - 24 kHz adjustable (audible), fPWM, Power section, Main circuit
Rated operational current (Ie)
30 A at 150% overload (at an operating frequency of 6 kHz and an ambient air temperature of +40 °C)
Rated operational voltage
230 V AC, 3-phase
240 V AC, 3-phase
240 V AC, 3-phase
Short-circuit protection rating
45 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring
Heat dissipation at current/speed
106 W at 25% current and 50% speed
115 W at 50% current and 0% speed
133 W at 50% current and 90% speed
134 W at 50% current and 50% speed
200 W at 100% current and 0% speed
222 W at 100% current and 90% speed
229 W at 100% current and 50% speed
98 W at 25% current and 0% speed
115 W at 50% current and 0% speed
133 W at 50% current and 90% speed
134 W at 50% current and 50% speed
200 W at 100% current and 0% speed
222 W at 100% current and 90% speed
229 W at 100% current and 50% speed
98 W at 25% current and 0% speed
| Característica | Valor |
|---|---|
| Tensão de rede (intervalo) (EF006780) | 200 V |
| Frequência da rede (standard) (EF006783) | 50/60 Hz |
| Número de fases de entrada (EF007117) | 3 |
| Número de fases de lançamento (EF006998) | 3 |
| Frequência de saída max. (EF007350) | 500 Hz |
| Máx. voltagem de saída (EF009560) | 250 V |
| Corrente nominal de saída I2N (EF009561) | 30 A |
| Máx. saída com carga quadrática na tensão de saída nominal (EF007366) | 7.5 kW |
| Máx. saída com carga linear à tensão de saída nominal (EF007364) | 7.5 kW |
| Consumo (potência em VA) (EF000346) | 304 W |
| Tolerância de frequência relativa da rede simétrica (EF007454) | 10 % |
| Tolerância de tensão relativa da rede simétrica (EF007453) | 10 % |
| Número de saídas analógicas (EF001995) | 1 |
| Número de entradas analógicas (EF001994) | 2 |
| Número de saídas digitais (EF001993) | 1 |
| Número de entradas digitais (EF001992) | 4 |
| Com unidade de controlo (EF001538) | Sim |
| Aplicação em área industrial permitida (EF007294) | Sim |
| Aplicação na área doméstica e comercial permitida (EF007295) | Sim |
| Suporta o protocolo TCP/IP (EF003050) | Não |
| Suporta o protocolo PROFIBUS (EF003052) | Não |
| Suporta o protocolo CAN (EF003053) | Sim |
| Suporta o protocolo INTERBUS (EF003054) | Não |
| Suporta o protocolo ASI (EF003051) | Não |
| Suporta o protocolo KNX (EF003055) | Não |
| Suporta o protocolo MODBUS (EF003057) | Sim |
| Suporta o protocolo Data-Highway (EF003058) | Não |
| Suporta o protocolo DeviceNet (EF003059) | Não |
| Suporta o protocolo SUCONET (EF003060) | Não |
| Suporta protocolo LON (EF003017) | Não |
| Suporta o protocolo PROFINET IO (EF007525) | Não |
| Suporta o protocolo PROFINET CBA (EF007524) | Não |
| Suporta o protocolo SERCOS (EF006657) | Não |
| Suporta o protocolo o Foundation Fieldbus (EF007522) | Não |
| Suporta o protocolo Ethernet/IP (EF007521) | Sim |
| Protocolo de suporte à segurança da interface AS no trabalho (EF007519) | Não |
| Suporta o protocolo DeviceNet Safety (EF007520) | Não |
| Suporta o protocolo INTERBUS-Safety (EF006662) | Não |
| Suporta o protocolo PROFIsafe (EF007526) | Não |
| Suporta o protocolo SafetyBUS p (EF007527) | Não |
| Suporta o protocolo BACnet (EF011944) | Não |
| Suporta o protocolo outros sistemas de barramento (EF003062) | Sim |
| Número de interfaces industriais HW Ethernet industrial (EF003020) | 0 |
| Número de interfaces PROFINET (EF006932) | 0 |
| Número de interfaces HW RS-232 (EF003021) | 0 |
| Número de interfaces HW RS-422 (EF003022) | 0 |
| Número de interfaces HW RS-485 (EF003023) | 1 |
| Número de interfaces HW de série TTY (EF003024) | 0 |
| Número de interfaces HW USB (EF003025) | 0 |
| Número de interfaces HW paralelas (EF003026) | 0 |
| Número de interfaces HW outras (EF003027) | 0 |
| Com interface ótica (EF003028) | Não |
| Com conexão ao PC (EF006107) | Sim |
| Resistência à rutura integrada (EF007293) | Sim |
| Possível operação em 4 quadrantes (EF006803) | Sim |
| Tipo de conversor (EF006978) | Conversor U |
| Grau de proteção (IP) (EF005474) | IP66 |
| Grau de proteção (NEMA) (EF011959) | 4X |
| Altura (EF000040) | 360 mm |
| Largura (EF000008) | 240 mm |
| Profundidade (EF000049) | 275 mm |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
Avaliações: (0) ▲
Não há comentários do produto ainda.
Adicionar avaliação
ocultar formulário
| Avaliação: |
|
| Nome: | |
| Email: | |
| Título: | |
| Opinión: | |
| Você recomendaria esse produto para comprar? | |
|
|
|
| Adicionar avaliação | |
Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
