> EATON - MOELLER>Caixas e armários industriais >CS-75/200 111702 Y7-111702 ELECTRIC Wall enclosure, +mounting plate, HxWxD 700x500x200mm
ANUNCIAR
Produto anterior Próximo produto

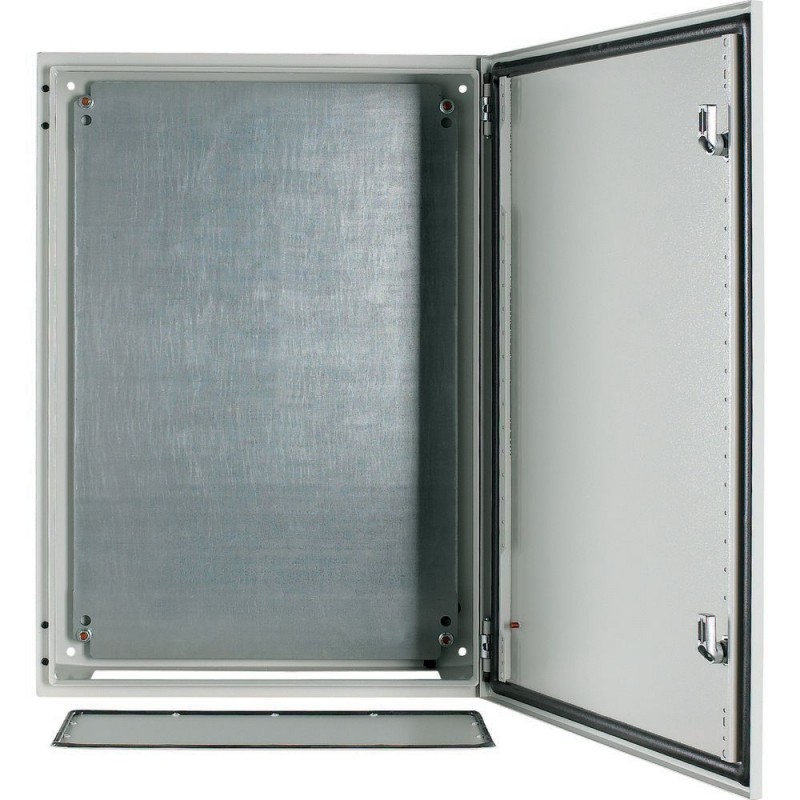

CS-75/200 111702 Y7-111702 EATON ELECTRIC Wall enclosure, +mounting plate, HxWxD 700x500x200mm Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

CS-75/200 111702 Y7-111702 EATON ELECTRIC Wall enclosure, +mounting plate, HxWxD 700x500x200mm

CS-75/200

111702

Y7-111702

EATON-MOELLER

Wall enclosure, +mounting plate, HxWxD=700x500x200mm

Placa de montagem do armário de parede incluída HxLxP=700x500x200mm

Eaton xEffect CS LV systems Switch- & Controlgear Enclosure. Wall enclosure with mounting plate, HxWxD=700x500x200mm

Caixa de parede CS, porta com junta contínua de espuma de poliuretano, categoria de resistência ao choque IK09 de acordo com EN 62262, porta única, dobradiças da porta direita, ângulo de abertura de 120°, pinos de dobradiça de porta com tecnologia de troca rápida, moldura de perfil de porta com furação em intervalos de 25 mm para fixação de trilhos de montagem DIN ou para fixação de conduítes e condutores de cabos, Sistema de travamento padronizado com trava de folha, Fabricado inteiramente em metal, com placa de montagem em chapa de aço, equipamento fornecido: fechadura, chave de guarda dupla de 3 mm. Equipamento acessório opcional, por exemplo, punho giratório confortável PHZ-A-ADD-ON com fechadura de cilindro PHZ-E10/30-GS. Projetado de acordo com IEC/EN 62208.

Mais detalhes


Sistemas de armários elétricos > Caixa / armário de distribuição (vazio)

Caixas e armários industriais

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $217.08
Preço unitário: $217.08
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton xEffect CS enclosure single door
Catalog Number
111702
EAN
4015081112616
Product Length/Depth
200 mm
Product Height
700 mm
Product Width
500 mm
Product Weight
21.33 kg
Compliances
UL CSA09 (may be provided with metal sub-panel, no back mounted components are allowed between sub-panel and the back sheet metal enclosure)
UL 508A; CSA-C22.2 No.14; IEC/EN 62208; CE marking
RoHS conform
Certifications
IEC/EN 62208
UL (File No. E336299)
UL CSA08 (request filed)
UL (Category Control Number NITW)
In accordance with Directive 2015/863/EU of the European Parliament and Council
Model Code
CS-75/200

Delivery program

Type
Wall-mounting housing CSWall-mounting housing with mounting plate
Color
Gray
Light gray (RAL 7035)

Technical data - mechanical

Design type
Canted and seam welded, including two M6 threaded bolts for earth conductor connections inside the enclosure.
Surface finishing
Gloss
Semi-textured
Structured powder spray polyester based paint finish
Powder coating
Surface treatment
Structured powder spray polyester based paint finish
Mounting method
9 mm drilling dimensions for wall mounting (Back plate)
Wall fastening
Intermediate mounting
Mounting plate height
670 mm
Mounting plate material
Sheet steel, hot-galvanized
Mounting plate width
450 mm
Material
Steel plate
Steel
Material thickness (body)
1.5 mm
Material thickness (bottom plate)
2 mm
Material thickness (door)
1.5 mm
Material quality
Other
Degree of protection
IK09 (impact resistance)
IEC: IP66, indoor; UL/CSA Types 1, 12, indoor only.
IP23 (with ventilating plates)
IP66
IK09
12 (NEMA)
Number of F3A flanges
1
Number of connector holes
0
Number of covers/doors
1
Number of hinges
2
Number of locks
2
Load capacity (door)
25 kg
Load capacity (mounting plate)
500 kg payload, when brackets fitted in all four enclosure corners (vertically or horizontally) and the weights are symmetrically distributed within the enclosure.
250 kg
Permissible load of the door(s) according to IEC 62208 - max
250 N
Permissible load of the enclosure according to IEC 62208 - max
2750 N
Permissible load of the mounting plate according to IEC 62208 - max
2500 N
Weight of mounted components - max
275 kg
Cover/door angle
120° door opening angle
Cover/door profile
2 door profiles
Cover/door type
Door hinges on the right, can be converted by user
Closed
Standard closure 3 mm double-ward key (door interlock)
Flange plate dimensions
172 mm x 432 mm
Installation site
Indoor installation
Installation type
Floor standing wall model
Thickness of mounting plate
2 mm
Climatic proofing
Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclical, to IEC 60068-2-30

Temperature-rise verification as per IEC 60890

Heat diss. ambient 35°C delta T: 20°C wall mount middle encl. top (IEC 60890)
47 W
Heat diss. ambient 35°C delta T: 35°C wall mount middle encl. top (IEC 60890)
93 W
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
53 W
Heat diss. ambient 35°C delta T:20°C wall mount starting encl. top (IEC 60890)
50 W
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
105 W
Heat diss. ambient 35°C delta T:35°C wall mount starting encl. top (IEC 60890)
99 W
Heat diss. wall mount individual encl. top
53 W
Heat diss. wall mount middle encl. top
47 W
Heat diss. wall mount starting encl. top
50 W
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
53 W

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature details
-25 °C - 40 °C

Design verification as per IEC/EN 61439

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK09
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP66
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
< 0.1 Ω; meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 1000 V AC
10.9.3 Impulse withstand voltage
Does not apply to basic enclosures as defined in EN 62208.
10.9.4 Testing of enclosures made of insulating material
Does not apply to metal enclosures.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.

Additional information

Features
Wall build in
Pole fastening
Fitted with:
Including M6 threaded welded studs for earth conductor connections in the door:
Mounting plate
Cover
Door
Functions
Floor standing enclosure
RAL-number
7035
Special features
Bottom plate enclosed, foamed gasket, can be unscrewed for F3A-… flanges or for assembly by userFoamed polyurethane sealing throughout.Impact resistance category IK09 to EN 62262.Sheet steel mounting plateBottom plate with foamed gasket.Single door, door stop on the right, door opening angle 120°Door hinge pins with quick change technology.Standardized locking system with sash fastener.Powder coating RAL 7035 inside and outsideLock, 3 mm double ward keyIncluding M6 threaded welded studs for earth conductor connections in the doorSide plates without aperturesTop plate without apertures
Suitable for
Metrical mounting
Used with
Industrial control panels

ETIM for 111702 Armários/Quadros elétricos (EC000261)
Característica Valor
Largura (EF000008) 500 mm
Altura (EF000040) 700 mm
Profundidade (EF000049) 200 mm
Material (EF002169) Aço
Qualidade do material (EF001257) Outro
Acabamento da superfície (EF006569) Revestimento em pó
Cor (EF000007) Cinzento
Número RAL (EF000116) 7035
Independente (EF020363) Não
Mural com base de chão (EF015208) Sim
Adequado para aplicação em paredes (EF000664) Sim
Modelo de canto (EF020814) Não
Montagem intermédia (EF022994) Sim
Acoplável (EF001229) Não
Com tampa de montagem (EF000118) Sim
Placa de montagem regulável em profundidade (EF006054) Não
Construção em parede (EF007536) Sim
Fixação de poste (EF009582) Sim
Com porta (EF009169) Sim
Número de portas (EF000122) 1
Com porta de vidro (EF001089) Não
Com porta de ventilação (EF006279) Não
Com porta traseira (EF007381) Não
Número de bloqueios (EF000123) 2
Com topo (EF007965) Sim
Tampa transparente (EF011401) Não
Adequado para montagem métrica (EF005823) Sim
Telhado inclinado (EF009278) Não
Número de orifícios do conector (EF005554) 0
Pré-puncionada (EF001039) Não
Versão EMC (EF001062) Não
Resistência ao impacto (IK) (EF004293) IK09
Grau de proteção (IP) (EF005474) IP66
Grau de proteção (NEMA) (EF011959) 12
Dissipação térmica (Delta T=20K) segundo IEC/TR 60890 (EF014986) 53 W
Carga máxima admissível segundo IEC 62208 (EF014987) 2750 N
Carga máx. admissível da(s) porta(s) segundo IEC 62208 (EF014988) 250 N
Carga máx. admissível da platine segundo IEC 62208 (EF014989) 2500 N

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
CS-75/200 Y7-111702 111702 EN_138763.pdf 3 Mbytes CS-75/200 Y7-111702 111702 EN_138763.pdf
