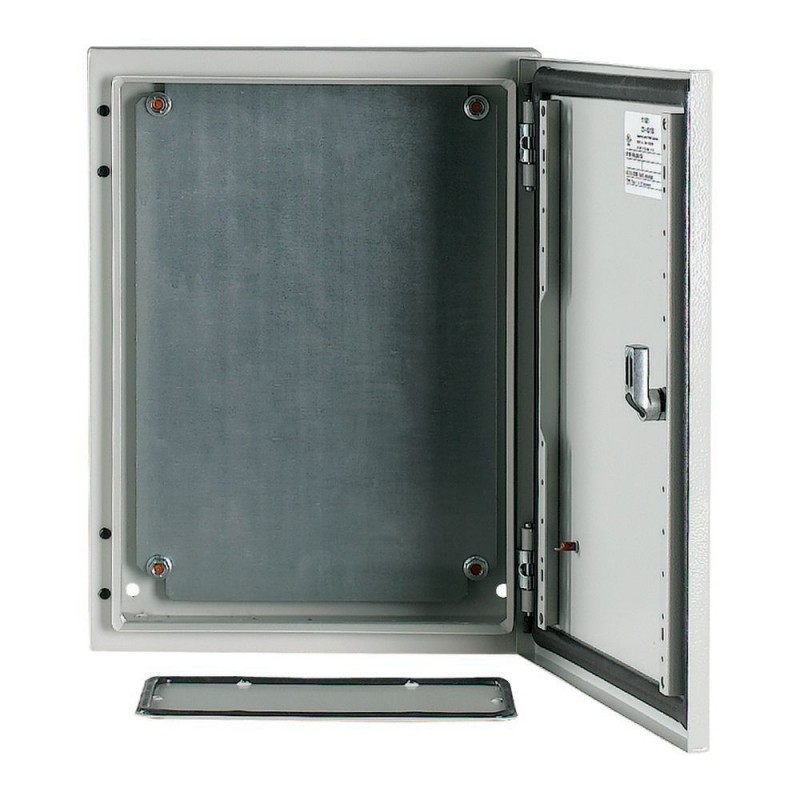

CS-43/150 111681 Y7-111681 EATON ELECTRIC Wall enclosure, +mounting plate, HxWxD 400x300x150mm
CS-43/150
111681
Y7-111681
EATON-MOELLER
Wall enclosure, +mounting plate, HxWxD=400x300x150mm
Placa de montagem do armário de parede incluída HxLxP=400x300x150mm
Eaton xEffect CS LV systems Switch- & Controlgear Enclosure. Wall enclosure with mounting plate, HxWxD=400x300x150mm
Caixa de parede CS, porta com junta contínua de espuma de poliuretano, categoria de resistência ao choque IK09 de acordo com EN 62262, porta única, dobradiças da porta direita, ângulo de abertura de 120°, pinos de dobradiça de porta com tecnologia de troca rápida, moldura de perfil de porta com furação em intervalos de 25 mm para fixação de trilhos de montagem DIN ou para fixação de conduítes e condutores de cabos, Sistema de travamento padronizado com trava de folha, Fabricado inteiramente em metal, com placa de montagem em chapa de aço, equipamento fornecido: fechadura, chave de guarda dupla de 3 mm. Equipamento acessório opcional, por exemplo, punho giratório confortável PHZ-A-ADD-ON com fechadura de cilindro PHZ-E10/30-GS. Projetado de acordo com IEC/EN 62208.
Sistemas de armários elétricos > Caixa / armário de distribuição (vazio)
Caixas e armários industriais
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton xEffect CS enclosure single door
Catalog Number
111681
EAN
4015081112401
Product Length/Depth
150 mm
Product Height
400 mm
Product Width
300 mm
Product Weight
6.95 kg
Compliances
UL 508A; CSA-C22.2 No.14; IEC/EN 62208; CE marking
RoHS conform
UL CSA09 (may be provided with metal sub-panel, no back mounted components are allowed between sub-panel and the back sheet metal enclosure)
RoHS conform
UL CSA09 (may be provided with metal sub-panel, no back mounted components are allowed between sub-panel and the back sheet metal enclosure)
Certifications
In accordance with Directive 2015/863/EU of the European Parliament and Council
UL CSA08 (request filed)
UL (File No. E336299)
UL (Category Control Number NITW)
IEC/EN 62208
UL CSA08 (request filed)
UL (File No. E336299)
UL (Category Control Number NITW)
IEC/EN 62208
Catalog Notes
Foamed polyurethane sealing throughout. Impact resistance category IK10 to EN 62262. Sheet steel mounting plate. Bottom plate with foamed gasket. Single door, door stop on the right, door opening angle 120°. Door hinge pins with quick chang
Model Code
CS-43/150
Delivery program
Type
Color
Light gray (RAL 7035)
Gray
Gray
Technical data - mechanical
Design type
Canted and seam welded, including two M6 threaded bolts for earth conductor connections inside the enclosure.
Surface finishing
Gloss
Powder coating
Structured powder spray polyester based paint finish
Semi-textured
Powder coating
Structured powder spray polyester based paint finish
Semi-textured
Surface treatment
Structured powder spray polyester based paint finish
Mounting method
Wall fastening
9 mm drilling dimensions for wall mounting (Back plate)
Intermediate mounting
9 mm drilling dimensions for wall mounting (Back plate)
Intermediate mounting
Mounting plate height
370 mm
Mounting plate material
Sheet steel, hot-galvanized
Mounting plate width
250 mm
Material
Steel plate
Steel
Steel
Material thickness (body)
1.2 mm
Material thickness (bottom plate)
2 mm
Material thickness (door)
1 mm
Material quality
Other
Degree of protection
12 (NEMA)
IEC: IP66, indoor; UL/CSA Types 1, 12, indoor only.
IP66
IP23 (with ventilating plates)
IK10
IK10 (impact resistance)
IEC: IP66, indoor; UL/CSA Types 1, 12, indoor only.
IP66
IP23 (with ventilating plates)
IK10
IK10 (impact resistance)
Number of connector holes
0
Number of covers/doors
1
Number of hinges
2
Number of locks
1
Load capacity (door)
25 kg
Load capacity (mounting plate)
500 kg payload, when brackets fitted in all four enclosure corners (vertically or horizontally) and the weights are symmetrically distributed within the enclosure.
150 kg
150 kg
Permissible load of the door(s) according to IEC 62208 - max
250 N
Permissible load of the enclosure according to IEC 62208 - max
1750 N
Permissible load of the mounting plate according to IEC 62208 - max
1500 N
Weight of mounted components - max
175 kg
Cover/door angle
120° door opening angle
Cover/door profile
2 door profiles
Cover/door type
Door hinges on the right, can be converted by user
Door hinges right
Can be converted by user
Standard closure 3 mm double-ward key (door interlock)
Door hinges right
Can be converted by user
Standard closure 3 mm double-ward key (door interlock)
Flange plate dimensions
112 mm x 232 mm
Installation site
Indoor installation
Installation type
Floor standing wall model
Thickness of mounting plate
2 mm
Climatic proofing
Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclical, to IEC 60068-2-30
Temperature-rise verification as per IEC 60890
Heat diss. ambient 35°C delta T: 20°C wall mount middle encl. top (IEC 60890)
18 W
Heat diss. ambient 35°C delta T: 35°C wall mount middle encl. top (IEC 60890)
39 W
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
21 W
Heat diss. ambient 35°C delta T:20°C wall mount starting encl. top (IEC 60890)
19 W
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
44 W
Heat diss. ambient 35°C delta T:35°C wall mount starting encl. top (IEC 60890)
41 W
Heat diss. wall mount individual encl. top
21 W
Heat diss. wall mount middle encl. top
18 W
Heat diss. wall mount starting encl. top
19 W
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
21 W
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature details
-25 °C - 40 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK10
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP66
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
< 0.1 Ω; meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 1000 V AC
10.9.3 Impulse withstand voltage
Does not apply to basic enclosures as defined in EN 62208.
10.9.4 Testing of enclosures made of insulating material
Does not apply to metal enclosures.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
Additional information
Features
Wall build in
Pole fastening
Pole fastening
Fitted with:
Including M6 threaded welded studs for earth conductor connections in the door:
Mounting plate
Cover
Door
Mounting plate
Cover
Door
Functions
Floor standing enclosure
RAL-number
7035
Special features
- Enclosed, foamed gasket
- Foamed polyurethane sealing throughout.
- Impact resistance category IK10 to EN 62262.
- Sheet steel mounting plate
- Bottom plate with foamed gasket.
- Single door, door stop on the right, door opening angle 120°
- Door hinge pins with quick change technology.
- Standardized locking system with sash fastener.
- Powder coating RAL 7035 inside and outside
- Lock, 3 mm double ward key
- Including M6 threaded welded studs for earth conductor connections in the door
- Side plates without apertures
- Top plate without apertures
Suitable for
Metrical mounting
Used with
Industrial control panels
| Característica | Valor |
|---|---|
| Largura (EF000008) | 300 mm |
| Altura (EF000040) | 400 mm |
| Profundidade (EF000049) | 150 mm |
| Material (EF002169) | Aço |
| Qualidade do material (EF001257) | Outro |
| Acabamento da superfície (EF006569) | Revestimento em pó |
| Cor (EF000007) | Cinzento |
| Número RAL (EF000116) | 7035 |
| Independente (EF020363) | Não |
| Mural com base de chão (EF015208) | Sim |
| Adequado para aplicação em paredes (EF000664) | Sim |
| Modelo de canto (EF020814) | Não |
| Montagem intermédia (EF022994) | Sim |
| Acoplável (EF001229) | Não |
| Com tampa de montagem (EF000118) | Sim |
| Placa de montagem regulável em profundidade (EF006054) | Não |
| Construção em parede (EF007536) | Sim |
| Fixação de poste (EF009582) | Sim |
| Com porta (EF009169) | Sim |
| Número de portas (EF000122) | 1 |
| Com porta de vidro (EF001089) | Não |
| Com porta de ventilação (EF006279) | Não |
| Com porta traseira (EF007381) | Não |
| Número de bloqueios (EF000123) | 1 |
| Com topo (EF007965) | Sim |
| Tampa transparente (EF011401) | Não |
| Adequado para montagem métrica (EF005823) | Sim |
| Telhado inclinado (EF009278) | Não |
| Número de orifícios do conector (EF005554) | 0 |
| Pré-puncionada (EF001039) | Não |
| Versão EMC (EF001062) | Não |
| Resistência ao impacto (IK) (EF004293) | IK09 |
| Grau de proteção (IP) (EF005474) | IP66 |
| Grau de proteção (NEMA) (EF011959) | 12 |
| Dissipação térmica (Delta T=20K) segundo IEC/TR 60890 (EF014986) | 21 W |
| Carga máxima admissível segundo IEC 62208 (EF014987) | 1750 N |
| Carga máx. admissível da(s) porta(s) segundo IEC 62208 (EF014988) | 250 N |
| Carga máx. admissível da platine segundo IEC 62208 (EF014989) | 1500 N |
