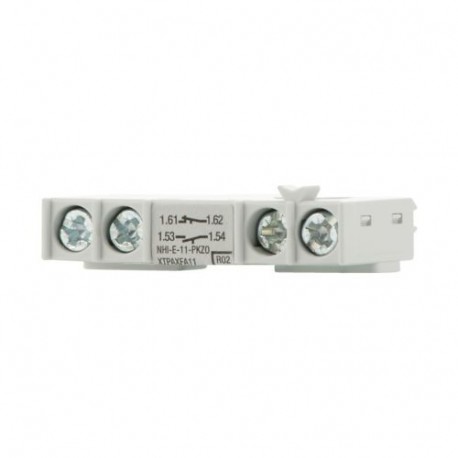

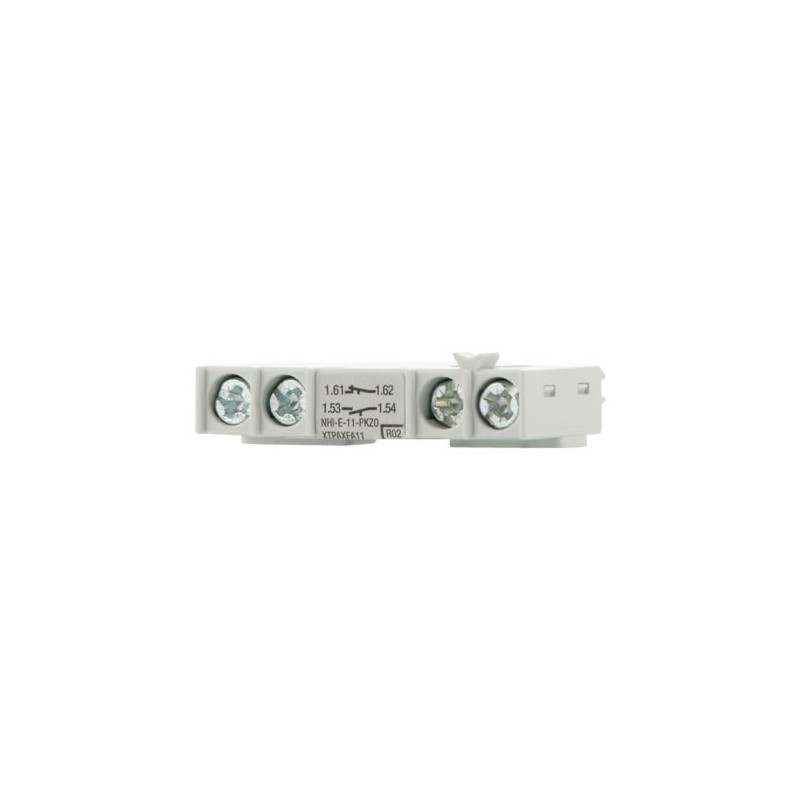

NHI-E-11-PKZ0 082882 Y7-82882 EATON ELECTRIC Contactar XTPAXFA11 aux. 1NC + 1NO Frente
NHI-E-11-PKZ0
082882
Y7-82882
EATON-MOELLER
Contactar XTPAXFA11 aux. 1NC + 1NO Frente
Contato auxiliar frontal 1 NO + 1 NC Conexão de parafuso
Eaton Moeller® series NHI Standard auxiliary contact, NHI-E, 1 N/O, 1 NC, Can be fitted to the front, Screw terminals
Contato Auxiliar Padrão, Contatos N/O = Normalmente Aberto: 1 N/O, Contatos N/A = Normalmente Fechado: 1 NF, Para Uso Com: PKZM01, PKZM0, PKZM4, PKZM0-T, PKM0, PKE
Aparelhos elétricos de baixa tensão > Bloco de contatos auxiliares
Chaves de proteção do motor
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲geralmente comprados juntos
▲Best sellers
▲Mais informação
▲General specifications
| Product Name | Eaton Moeller® series NHI Accessory Standard auxiliary contact |
| Catalog Number | 082882 |
| EAN | 4015080828822 |
| Product Length/Depth | 12 mm |
| Product Height | 35 mm |
| Product Width | 45 mm |
| Product Weight | 0.016 kg |
| Certifications | CE UL Category Control No.: NLRV CSA CSA-C22.2 No. 14 UL File No.: E36332 CSA File No.: 165628 IEC/EN 60947-4-1 UL 508 CSA Class No.: 3211-05 UL |
| Catalog Notes | Can be fitted to the front. Terminal designation differs to that of an auxiliary contact that can be fitted to the side |
| Model Code | NHI-E-11-PKZ0 |
Funcionalidades e Funções
| Electric connection type | Screw connection |
Geral
| Lifespan, electrical | 100,000 Operations |
| Lifespan, mechanical | 100,000 Operations |
| Model | Top mounting |
| Mounting method | Front fastening |
| Overvoltage category | III |
| Pollution degree | 3 |
| Product category | Accessories |
| Rated impulse withstand voltage (Uimp) | 4000 V AC |
| Used with | Motor protective circuit-breaker |
Condições meteorológicas
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 55 °C |
Capacidades dos terminais
| Terminal capacity (solid/flexible with ferrule) | 0.75 - 1.5 mm² |
| Terminal capacity (solid/stranded AWG) | 18 - 16, Screw terminals |
Classificação elétrica
| Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V | 1 A |
| Rated operational current (Ie) at DC-13, 24 V | 2 A |
| Rated operational voltage (Ue) at AC - max | 440 V |
| Rated operational voltage (Ue) at DC - max | 250 V |
| Safe isolation | 440 V, Between auxiliary contacts and main contacts, According to EN 61140 |
| Short-circuit protection rating without welding | 10 A gG/gL, Fuse, Auxiliary contacts |
Contactos
| Number of contacts (change-over contacts) | 0 |
| Number of contacts (normally closed contacts) | 1 |
| Number of contacts (normally open contacts) | 1 |
Verificação do design
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0.01 W |
| Rated operational current for specified heat dissipation (In) | 1 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| Característica | Valor |
|---|---|
| Número de contatos como inversores (EF008257) | 0 |
| Número de contatos como contato normalmente aberto (EF008256) | 1 |
| Número de contatos como contato normalmente fechado (EF008255) | 1 |
| Número de comutadores de sinal de erro (EF007613) | 0 |
| Corrente nominal de operação Ie em AC-15, 230 V (EF001385) | 1 A |
| Acabamento da conexão elétrica (EF003961) | Ligação com parafuso |
| Modelo (EF000010) | Clip-on |
| Método de montagem (EF000003) | Fixação frontal |
| Suporte da lâmpada (EF000048) | Nenhum |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 35 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| NHI-E-11-PKZ0 Y7-82882 082882 PT_082882.pdf | 85 Kbytes |
|
