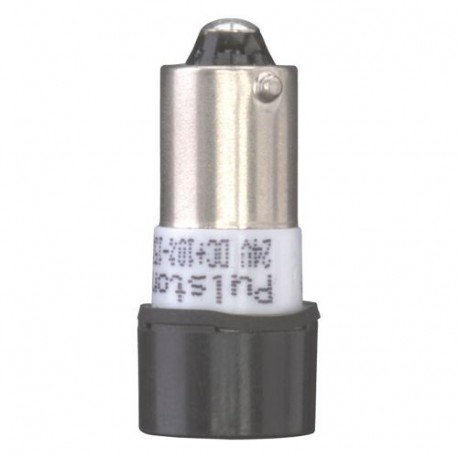

M22-XAMP 229028 Y7-229028 EATON ELECTRIC Buzzer BA9s, 18-30V, pulsed tone
M22-XAMP
229028
Y7-229028
EATON-MOELLER
Buzzer BA9s, 18-30V, pulsed tone
BA9s 18-30V DC Buzzer Tom Intermitente
Eaton Moeller® series M22 Buzzer BA9s, 18-30V, pulsed tone
Campainha BA9s, 18-30V, tom pulsado, para dispositivo acústico M22-AMC
Aparelhos elétricos de baixa tensão > Indicador acústico
Auxiliares de controle e sinalização
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
geralmente comprados juntos
▲Best sellers
▲Mais informação
▲General specifications
| Product Name | Eaton Moeller® series M22 buzzer |
| Catalog Number | 229028 |
| EAN | 4015082290283 |
| Product Length/Depth | 30 mm |
| Product Height | 10 mm |
| Product Width | 10 mm |
| Product Weight | 0.014 kg |
| Compliances | CE Marked |
| Certifications | EN 60947-5 IEC 60947-5 UL 508 CSA Std. C22.2 No. 14-05 UL CSA CSA-C22.2 No. 14-05 CSA File No.: 012528 IEC/EN 60947-5 UL File No.: E29184 CSA Class No.: 3211-03 UL Category Control No.: NKCR CE |
| Catalog Notes |
|
| Model Code | M22-XAMP |
Especificações do produto
| Type | Pulsed tone |
| Product Category | Accessories |
| Voltage rating | 24 Vdc |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Alarm type | Pulsed tone Pulsed tone, 24 V DC (+10 %/-15 %) |
| Connection to SmartWire-DT | No |
| Ambient operating temperature - max | 70 °C |
| Ambient operating temperature - min | -25 °C |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Rated operational voltage (Ue) at AC - max | 0 V |
| Rated operational voltage (Ue) at AC - min | 0 V |
| Rated operational voltage (Ue) at DC - max | 24 V |
| Rated operational voltage (Ue) at DC - min | 24 V |
| Static heat dissipation, non-current-dependent Pvs | 0.4 W |
| Degree of protection | NEMA Other |
| Voltage type | DC |
| Loudness | 83 dB |
| Tone type | Pulse tone |
| Característica | Valor |
|---|---|
| Tipo de sinal acústico (EF002751) | Tom intermitente |
| Volume (EF000144) | 83 dB |
| Tensão de operação de 50 Hz CA (EF008206) | 0 V |
| Tensão de operação AC 60 Hz (EF008207) | 0 V |
| Tensão de operação DC (EF008208) | 24 V |
| Tipo de tensão (EF000187) | DC |
| Grau de proteção (NEMA) (EF011959) | Outro |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| M22-XAMP Y7-229028 229028 PT_229028.pdf | 82 Kbytes |
|
