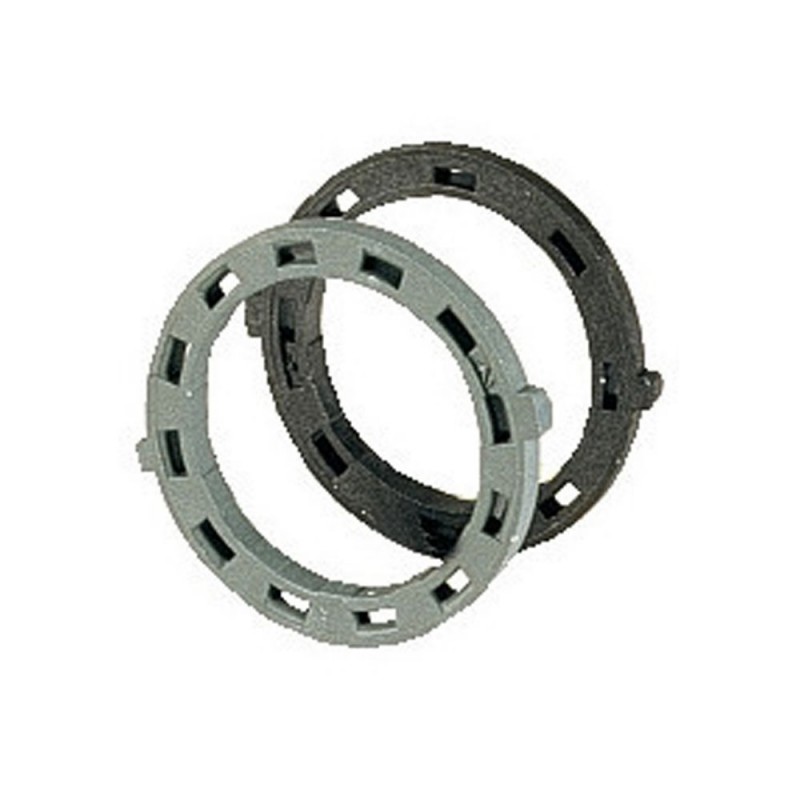

EATON - MOELLER VR-T0 089082 Y7-89082 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

VR-T0 089082 Y7-89082 EATON ELECTRIC Kit de intertravamento de rodas

Referência: VR-T0

Código: 089082

Número de catálogo: Y7-89082

Fabricante: EATON - MOELLER

Descrição:

Kit de intertravamento de rodas
Encoder de remoção de chave para S-T0
Eaton Moeller® series VR Locking cams, T cam switch
Acessórios para T Cam Switches/P-Disconnector Switches de acordo com IEC/EN60947-3, Design Geral: Material de Isolamento - Caixa de Montagem em Superfície, Montagem Embutida, Montagem Central, Montagem Traseira IVS Service Distribution Board. Os interruptores T-cam capazes, robustos e compactos são usados na indústria, no trabalho manual e no gerenciamento de serviços prediais. Uma variedade de circuitos padrão está disponível para seleção. Circuitos especiais específicos do cliente são implementados como complementos. As possibilidades são quase ilimitadas aqui. A ampla gama de acessórios completa a gama de interruptores e complementa as possibilidades de aplicação.

Categorias:

  • Aparelhos elétricos de baixa tensão > Acessórios para dispositivos de controle
  • EATON - MOELLER > Desconexões e Comutadores Cam

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 5,19 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 3 semanas.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series VR Accessory Locking cam
Catalog Number
089082
EAN
4015080890829
Product Length/Depth
26 mm
Product Height
5 mm
Product Width
26 mm
Product Weight
0.01 kg
Certifications
UL/CSA certification not required
Model Code
VR-T0

Especificações do produto

Type
Locking arrangements
Product Category
Locking cam set
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Accessory/spare part type
Accessory
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Electrical accessory type
Other
Functions
Retroactive change to key withdrawability in the engagement positions
Mechanical accessory type
Key

ETIM for 089082 Componentes industriais para Baixa Tensão (EC002024)

Nome da característicaTipo de acessório elétrico (EF005722)
Valor da característicaOutro
Nome da característicaTipo de acessório mecânico (EF005994)
Valor da característicaChave
Nome da característicaAcessório (EF013236)
Valor da característicaSim
Nome da característicaPeça de substituição (EF013237)
Valor da característicaNão
