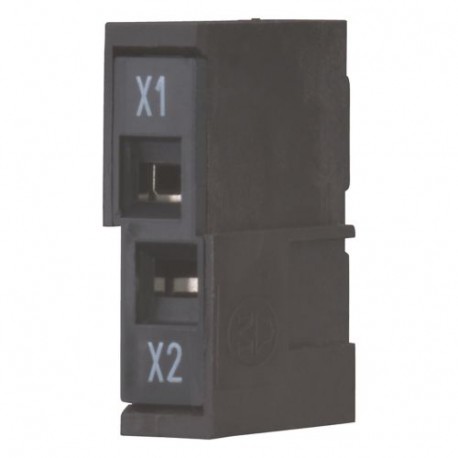

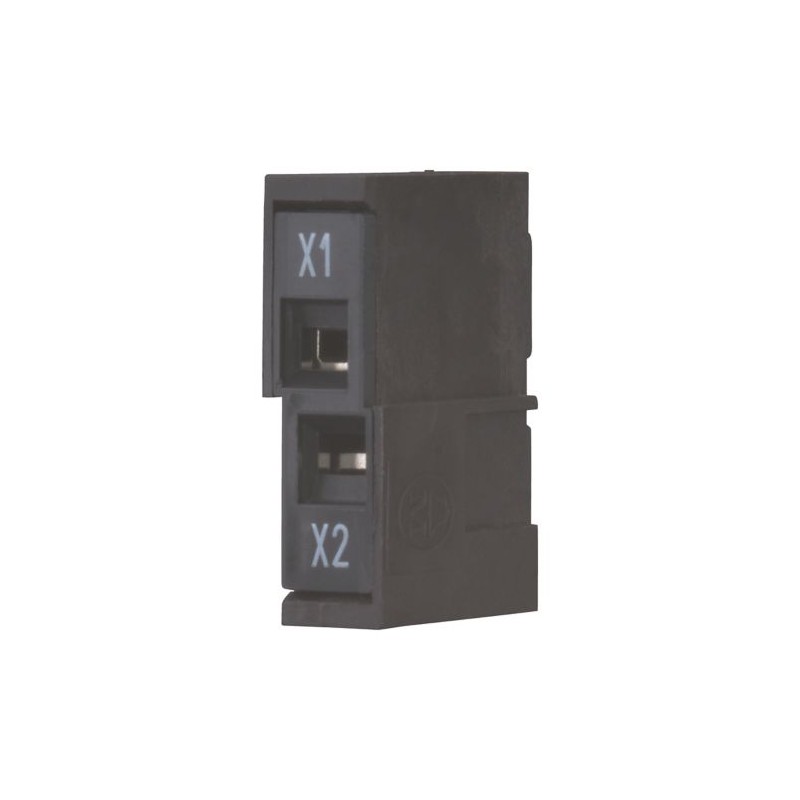

SRAL 028099 EATON ELECTRIC adaptador de rosca IP20
SRAL
028099
EATON-MOELLER
20
adaptador de rosca IP20
Adaptador de parafuso para o elemento da lâmpada RMQ16
Eaton Moeller® series RMQ16 Screw adapter, for lamp socket, RMQ16
Disjuntores de baixa tensão > Acessórios para dispositivos de controle
Auxiliares de controle e sinalização
* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton Moeller® series RMQ16 Accessory Screw adapter
Catalog Number
028099
EAN
4015080280996
Product Length/Depth
19 mm
Product Height
22 mm
Product Width
8 mm
Product Weight
0.003 kg
Certifications
UL/CSA certification not required
Model Code
SRAL
Especificações do produto
Accessory/spare part type
Accessory
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Connection to SmartWire-DT
No
Color
Black
Degree of protection
IP20
Electrical accessory type
Other
Mechanical accessory type
Other
Ambient operating temperature - max
60 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
Accessories
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 23 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| SRAL SRAL 028099 EN_025434.pdf | 1 Mbytes |
|
