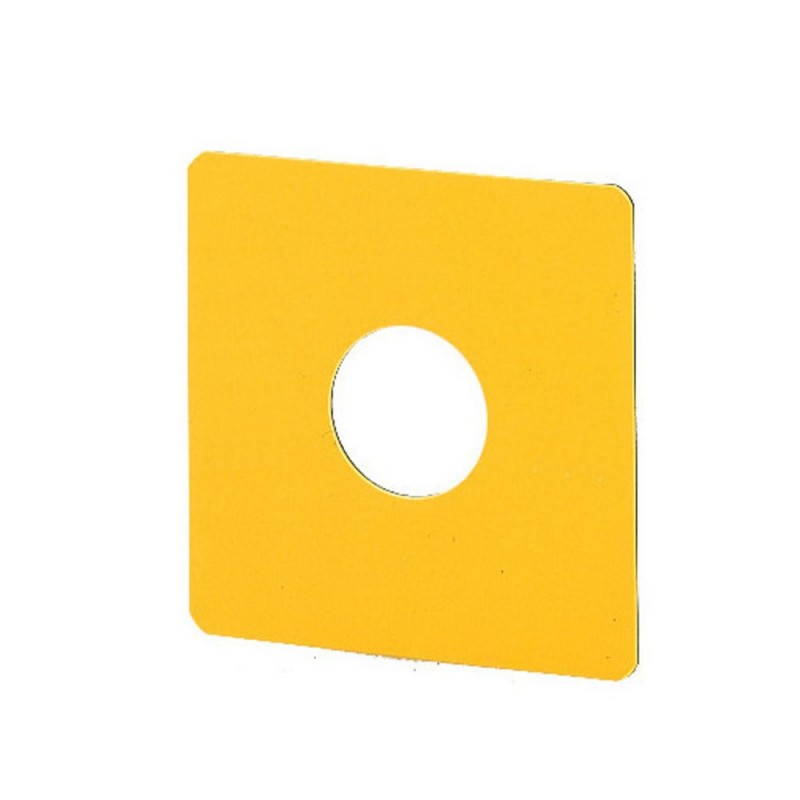

EATON - MOELLER SQ-GE 063263 Y7-63263 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

SQ-GE 063263 Y7-63263 EATON ELECTRIC A luz amarela para Q25PV

Referência: SQ-GE

Código: 063263

Número de catálogo: Y7-63263

Fabricante: EATON - MOELLER

Descrição:

A luz amarela para Q25PV
Etiqueta indicadora para o botão RMQ16 de parada de emergência
Eaton Moeller® series RMQ Emergency-Stop label, Blank, yellow, square 50 x 50 mm, Not suitable for engraving, Front dimensions 25 × 25 mm
Etiqueta de parada de emergência, Gama de produtos: Acessórios, Unidade única, Bruto, amarelo, Descrição: quadrado 50 x 50 mm, Não adequado para gravação, Dimensões frontais: Dimensões frontais 25 × 25 mm, Conexão SmartWire-DT: não

Categorias:

  • Aparelhos elétricos de baixa tensão > Etiqueta para dispositivos de comando
  • EATON - MOELLER > Auxiliares de controle e sinalização

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

* Este artigo pode estar obsoleto. Se você estiver interessado, insira seu e-mail e informaremos se há unidades disponíveis. Caso não existam mais, um dos nossos técnicos procurará uma alternativa fornecivel com características semelhantes.

Solicite um orçamento e verificaremos a disponibilidade das unidades. Caso não estejam disponíveis, um dos nossos técnicos procurará uma solução alternativa.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series RMQ Accessory Emergency-Stop label
Catalog Number
063263
EAN
4015080632634
Product Length/Depth
50 mm
Product Height
1 mm
Product Width
50 mm
Product Weight
0.006 kg
Certifications
UL/CSA certification not required
Model Code
SQ-GE

Especificações do produto

Product Category
Accessories
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Connection to SmartWire-DT
No
Ambient operating temperature - max
60 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Outside diameter
0 mm
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Size
25 × 25 mm
Color
Yellow
Shape
Square
Language
Other
Inscription
None
Imprint ISO symbols
None

ETIM for 063263 Componentes industriais para Baixa Tensão (EC000624)

Nome da característicaSignificado da marcação (EF015918)
Valor da característicaNenhum
Nome da característicaLíngua da marcação (EF015922)
Valor da característicaOutro
Nome da característicaImpressão de símbolos ISO (EF006094)
Valor da característicaNenhum
Nome da característicaCor (EF000007)
Valor da característicaAmarelo
Nome da característicaForma (EF000051)
Valor da característicaQuadrado
Nome da característicaLargura (EF000008)
Valor da característica50 mm
Nome da característicaAltura (EF000040)
Valor da característica1 mm
Nome da característicaDiâmetro externo (EF000015)
Valor da característica0 mm

DATASHEET - PDF
