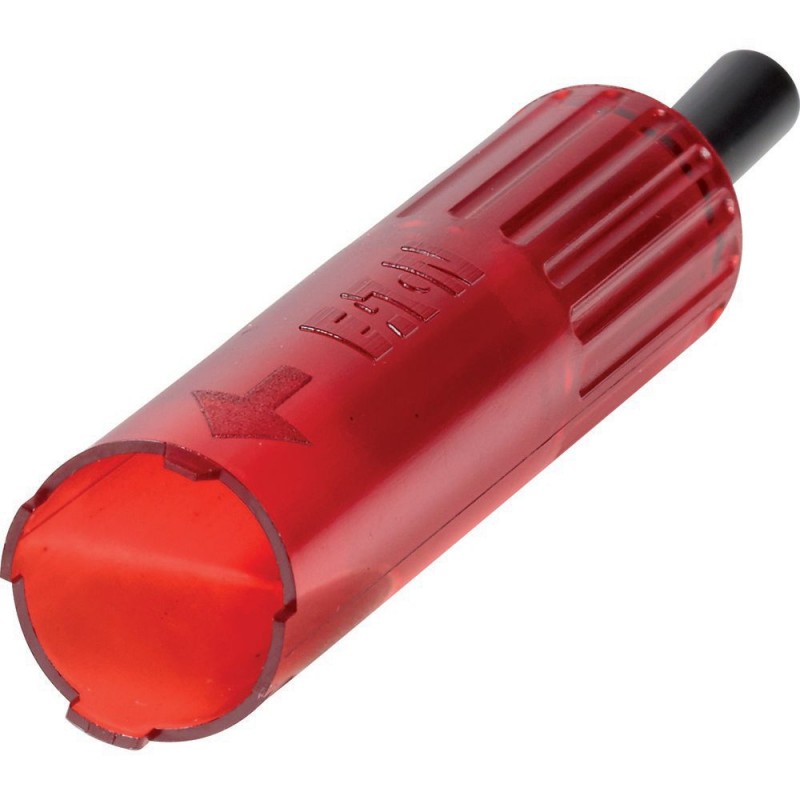

EATON - MOELLER R16-MS 090297 Y7-90297 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

R16-MS 090297 Y7-90297 EATON ELECTRIC chave de montagem

Referência: R16-MS

Código: 090297

Número de catálogo: Y7-90297

Fabricante: EATON - MOELLER

Descrição:

chave de montagem
Chave de montagem RMQ16
Eaton Moeller® series RMQ16 Mounting ring tool
Uma ferramenta de anel de montagem é altamente recomendada ao lidar com um grande número de dispositivos piloto RMQ-Titan.

Categorias:

  • Aparelhos elétricos de baixa tensão > Ferramenta de montagem para unidades de comando e sinalização
  • EATON - MOELLER > Auxiliares de controle e sinalização

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

* Este artigo pode estar obsoleto. Se você estiver interessado, insira seu e-mail e informaremos se há unidades disponíveis. Caso não existam mais, um dos nossos técnicos procurará uma alternativa fornecivel com características semelhantes.

Solicite um orçamento e verificaremos a disponibilidade das unidades. Caso não estejam disponíveis, um dos nossos técnicos procurará uma solução alternativa.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series RMQ16 Accessory Mounting ring tool
Catalog Number
090297
EAN
4015080902973
Product Length/Depth
117 mm
Product Height
68 mm
Product Width
76 mm
Product Weight
0.01 kg
Certifications
UL/CSA certification not required
Catalog Notes
For lock nut with bulb extractor
Model Code
R16-MS

Especificações do produto

10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Connection to SmartWire-DT
No
Model
Mounting wrench
Ambient operating temperature - max
60 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
Accessories

ETIM for 090297 Componentes industriais para Baixa Tensão (EC002032)

Nome da característicaModelo (EF000010)
Valor da característicaChave de montagem
