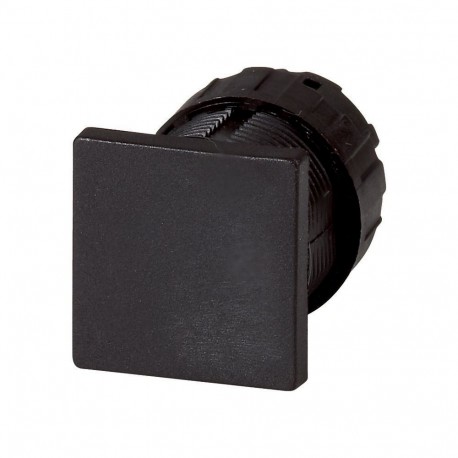

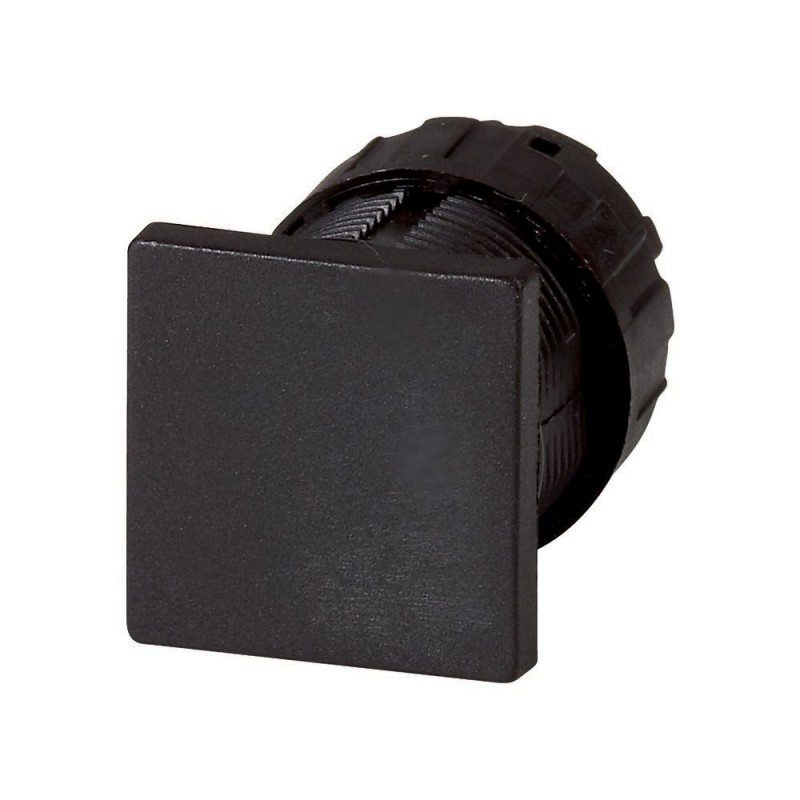

EATON - MOELLER Q18BS 037985 Y7-37985 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

Q18BS 037985 Y7-37985 EATON ELECTRIC Branqueamento

Referência: Q18BS

Código: 037985

Número de catálogo: Y7-37985

Fabricante: EATON - MOELLER

Descrição:

Branqueamento
Tampa do obturador 16 mm 18x18 mm Preto
Eaton Moeller® series RMQ16 Blanking plug, black, IP65_x Q18BS
Ficha de obturador, Gama de produtos: Acessórios, Função: Para o fecho de locais de montagem sobressalentes, Unidade única, Tipo: Para distâncias entre grelhas de 18 x 18 mm, Grau de protecção: IP65, preto, Ligação a SmartWire-DT: não

Categorias:

  • Aparelhos elétricos de baixa tensão > Tampa cega para dispositivos de comando
  • EATON - MOELLER > Auxiliares de controle e sinalização

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

* Este artigo pode estar obsoleto. Se você estiver interessado, insira seu e-mail e informaremos se há unidades disponíveis. Caso não existam mais, um dos nossos técnicos procurará uma alternativa fornecivel com características semelhantes.

Solicite um orçamento e verificaremos a disponibilidade das unidades. Caso não estejam disponíveis, um dos nossos técnicos procurará uma solução alternativa.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series RMQ16 Accessory Blanking plug
Catalog Number
037985
EAN
4015080379850
Product Length/Depth
27 mm
Product Height
18 mm
Product Width
18 mm
Product Weight
0.004 kg
Certifications
UL/CSA certification not required
Model Code
Q18BS

Especificações do produto

Type
For grid spacing 18 x 18 mm
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Connection to SmartWire-DT
No
Ambient operating temperature - max
60 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Opening diameter
16 mm
Opening height
0 mm
Rated operational current for specified heat dissipation (In)
0 A
Color
Black
Material
Plastic
Degree of protection
IP65
Functions
For closing off of spare mounting locations
Lens type
Square
Static heat dissipation, non-current-dependent Pvs
0 W
Width opening
0 mm
Product category
Accessories

ETIM for 037985 Componentes industriais para Baixa Tensão (EC002023)

Nome da característicaMaterial (EF002169)
Valor da característicaPlástico
Nome da característicaForma de lente (EF006253)
Valor da característicaQuadrado
Nome da característicaDiâmetro do furo (intervalo) (EF000079)
Valor da característica16 mm
Nome da característicaLargura da abertura (EF004565)
Valor da característica0 mm
Nome da característicaAltura da abertura (EF004778)
Valor da característica0 mm
Nome da característicaCor (EF000007)
Valor da característicaPreto
