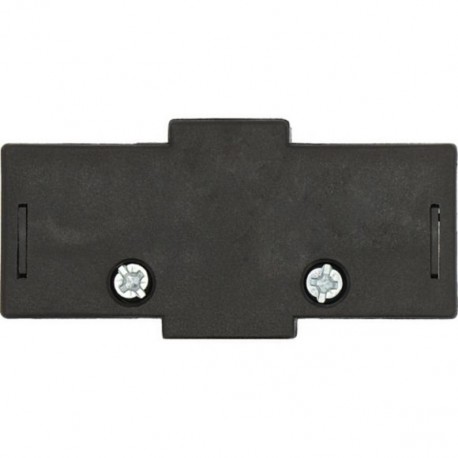

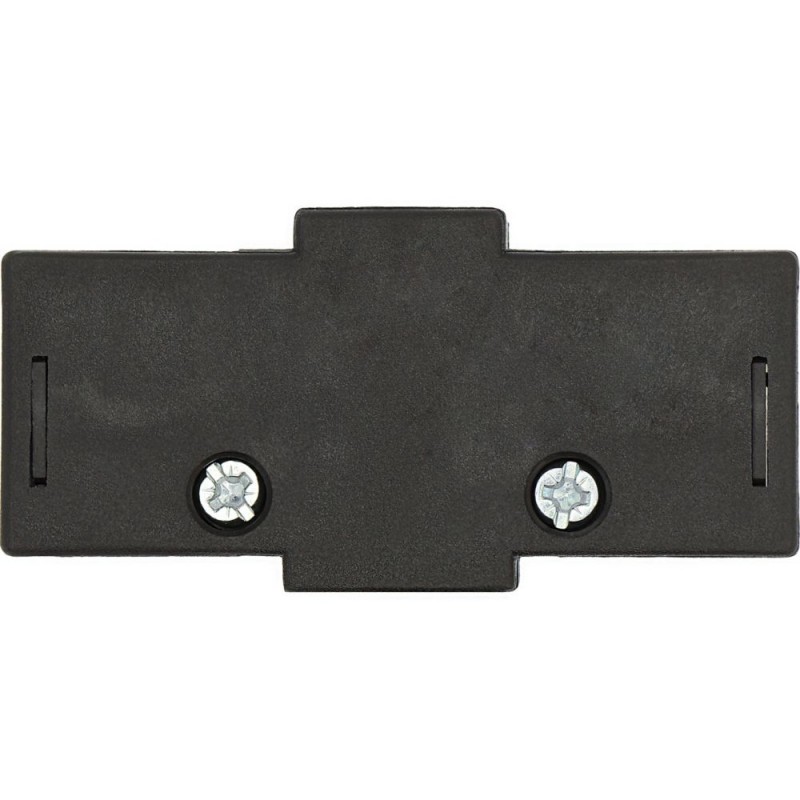

N-P1Z 000652 0001456566 EATON ELECTRIC neutra desconectável
N-P1Z
000652
0001456566
EATON-MOELLER
neutra desconectável
Módulo para condutor Neutro; 4º polos; Para P1-.../Z
Eaton Moeller® series Neutral conductor, 4th pole, N for P1Z
Disjuntores de baixa tensão > Acessórios para a tecnologia de comutação por baixa tensão
Desconexões e Comutadores Cam
* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
geralmente comprados juntos
▲Mais informação
▲General specifications
Product Name
Eaton Moeller® series Accessory Neutral conductor
Catalog Number
000652
EAN
4015080006527
Product Length/Depth
32 mm
Product Height
70 mm
Product Width
15 mm
Product Weight
0.03 kg
Certifications
CSA-C22.2 No. 14-05
UL Category Control No.: NLRV
CSA-C22.2 No. 94
CSA
UL File No.: E36332
CE
UL 508
CSA File No.: 012528
IEC/EN 60947-3
UL
CSA Class No.: 3211-05
UL Category Control No.: NLRV
CSA-C22.2 No. 94
CSA
UL File No.: E36332
CE
UL 508
CSA File No.: 012528
IEC/EN 60947-3
UL
CSA Class No.: 3211-05
Model Code
N-P1Z
Especificações do produto
Type
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Accessory/spare part type
Neutral terminal
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
1.8 W
Rated operational current for specified heat dissipation (In)
32 A
Static heat dissipation, non-current-dependent Pvs
0 W
Stripping length (main cable)
10.5 mm
Mounting position
Left side
Right side
Right side
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON SAFE SWITCHING EN.pdf | 928 Kbytes |
|
| N-P1Z 0001456566 000652 ES_000652.pdf | 1 Mbytes |
|
