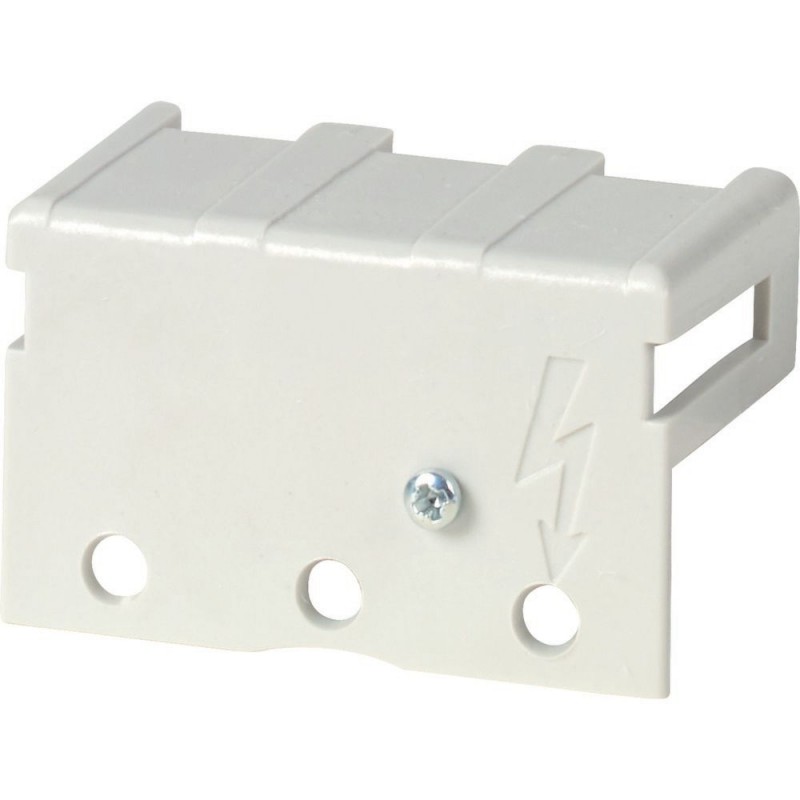

EATON - MOELLER H-P1 017253 Y7-17253 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

H-P1 017253 Y7-17253 EATON ELECTRIC tampas do terminal

Referência: H-P1

Código: 017253

Número de catálogo: Y7-17253

Fabricante: EATON - MOELLER

Descrição:

tampas do terminal
Proteção para terminais de conexão de 3 polos para switches P1
Eaton Moeller® series Terminal shroud, 3p, for switch-disconnector P1
Tampa do terminal, Tampa do terminal de conexão para (Tampa da etiqueta do barramento), Para uso com: P1-.../E, .../EZ, .../Z, .../EA, .../V, .../XM, Para uso com: Interruptores-seccionadores de 3 polos

Categorias:

  • Aparelhos elétricos de baixa tensão > Acessórios para a tecnologia de comutação por baixa tensão
  • EATON - MOELLER > Desconexões e Comutadores Cam

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 7,60 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço
Envio em estoque hoje. 6 Unidades.

Mais unidades, prazo padrão: 5 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series Accessory Terminal shroud
Catalog Number
017253
EAN
4015080172536
Product Length/Depth
49 mm
Product Height
24 mm
Product Width
35 mm
Product Weight
0.009 kg
Certifications
UL/CSA certification not required
Model Code
H-P1

Especificações do produto

Type
Terminal cover
Accessories
Shroud for connection terminals for (busbar tag shroud)
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Accessory/spare part type
Cover
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Functions
Can be optionally used for input wiring and/or outgoer

ETIM for 017253 Componentes industriais para Baixa Tensão (EC002498)

Nome da característicaTipo de acessório/peça de reposição (EF000215)
Valor da característicaTampa
Nome da característicaAcessório (EF013236)
Valor da característicaSim
Nome da característicaPeça de substituição (EF013237)
Valor da característicaNão
