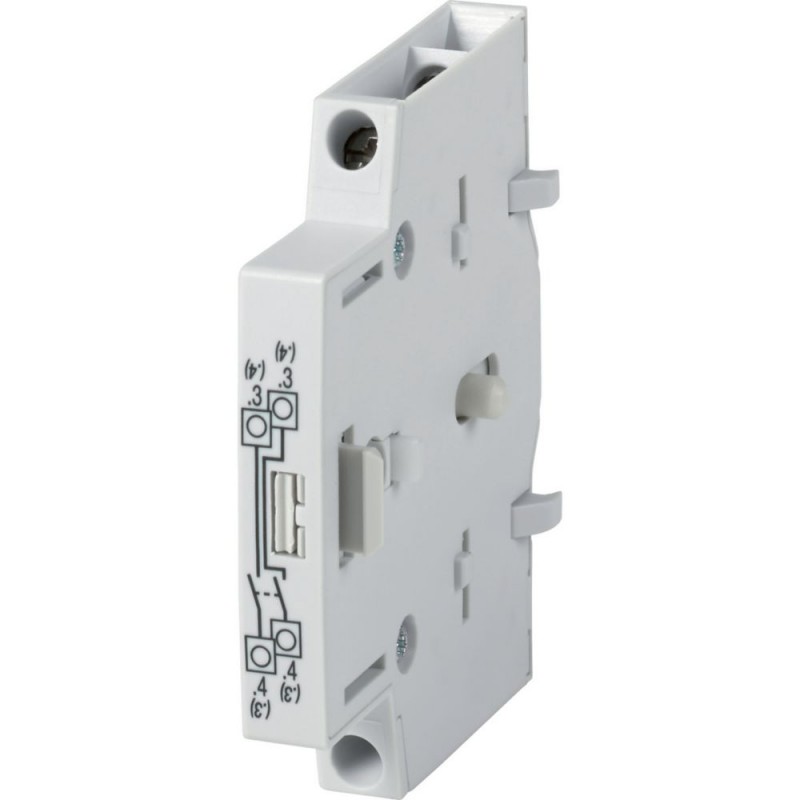

AC2NO 191844 Y7-191844 EATON ELECTRIC 191844 AC2NO Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

AC2NO 191844 Y7-191844 EATON ELECTRIC 191844 AC2NO

AC2NO

191844

Y7-191844

EATON-MOELLER

191844 AC2NO

Contatos auxiliares 2 NO para interruptores rotativos R5/R9

Eaton Moeller® series R9 Auxiliary contact 2N/O

Contato auxiliar, Gama de produtos: Acessórios, UL98, Referência do grupo de peças: R9, Comportamento de conexão de interrupção tardia, Comportamento de desconexão de conexão antecipada, A E/S é sempre conectada como contato de rejeição de carga., Para montagem do lado esquerdo ou direito, Contatos N/O = Normalmente abertos: 2 N/A, Para uso com: R9

Mais detalhes


Aparelhos elétricos de baixa tensão > Bloco de contatos auxiliares

Desconexões e Comutadores Cam

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $46.63
Preço unitário: $46.63
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

Mais informação



General specifications

Product Name
Eaton Moeller® series R9 Accessory Auxiliary contact
Catalog Number
191844
EAN
4015081923656
Product Length/Depth
75 mm
Product Height
68 mm
Product Width
26 mm
Product Weight
0.04 kg
Compliances
CE
Model Code
AC2NO

Especificações do produto

Type
Auxiliary contact
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Not applicable.
10.12 Electromagnetic compatibility
Not applicable.
10.13 Mechanical function
Not applicable.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Electric connection type
Screw connection
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.11 W
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
2
Number of switches (fault signal)
0
Mounting position
Right side
Left side
Connection type
Screw connection
Mounting method
Side mounting
Model
Top mounting
Lamp holder
None
Terminal capacity (AWG)
22 - 14
2 x (22 - 14)
Rated uninterrupted current (Iu)
10 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
0 A
Rated operational current for specified heat dissipation (In)
6 A
Terminal capacity (solid)
1 x 0.22 mm², 2 x 2.5 mm²
Tightening torque
7.1 - 8.8 lb-in Nm, Screw terminals
0.8 - 1 Nm, Screw terminals
Terminal capacity (flexible)
1 x 0.22 mm², 2 x 2.5 mm²

ETIM for 191844 Componentes industriais para Baixa Tensão (EC000041)
Característica Valor
Número de contatos como inversores (EF008257) 0
Número de contatos como contato normalmente aberto (EF008256) 2
Número de contatos como contato normalmente fechado (EF008255) 0
Número de comutadores de sinal de erro (EF007613) 0
Corrente nominal de operação Ie em AC-15, 230 V (EF001385) 0 A
Acabamento da conexão elétrica (EF003961) Ligação com parafuso
Modelo (EF000010) Clip-on
Método de montagem (EF000003) Montagem lateral
Suporte da lâmpada (EF000048) Nenhum
