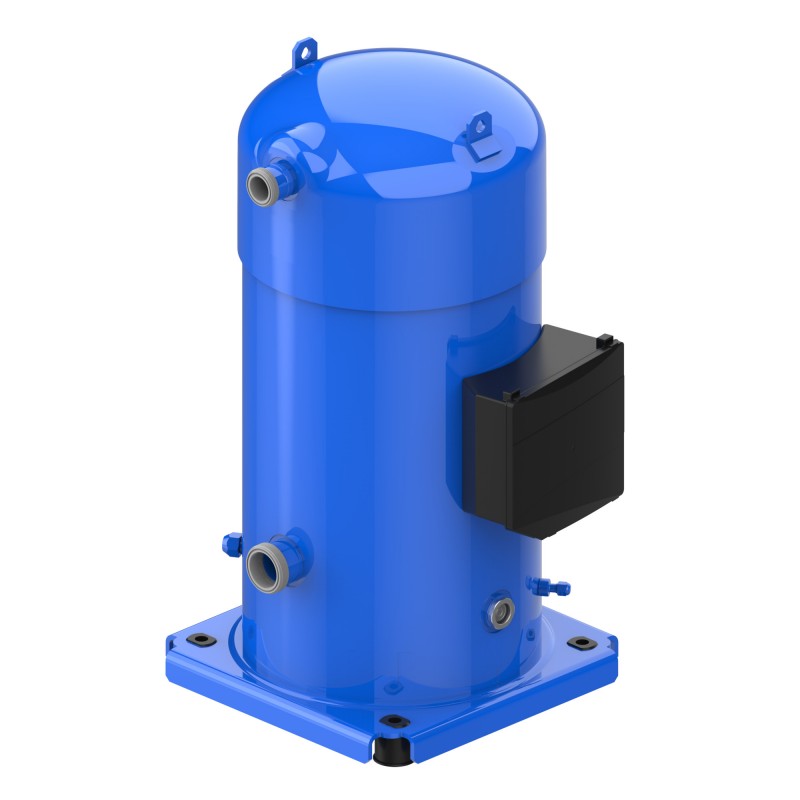

Produto:MTZ18-4VM DANFOSS REFRIGERATION Compress...

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.
Referência: SY300A4PBI
Fabricante: DANFOSS REFRIGERATION
Descrição:
Categorias:
Produto novo em sua embalagem original com todas as garantias e certificações de DANFOSS REFRIGERATION
JÁ VISTOS
| Gross weight | 164 Kg |
| Peso líquido | 157 Kg |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Compressor power supply [V/Ph/Hz] | 400/3/50 460/3/60 |
| Configuration code | Único |
| Cor | Blue |
| Description | SY300-4 |
| Diameter [mm] | 344 mm |
| Discharge connection height [mm] | 665 mm |
| Discharge connection mounting torque [Nm] | 110 N-m |
| Discharge connection pipe size [in] | 1.125 in |
| Discharge connection rotolock size [in] | 1.75 in |
| Discharge connection size [in] | 1.75 in |
| Discharge connection sleeve pipe size [in] | 1.125 in |
| Drawing number | 8556099b |
| Economizer | Não |
| Factory HP [bar] | 33 bar |
| Factory LP [bar] | 25 bar |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Fitting standard | Rotolock |
| Freq. | 50/60 |
| Gauge port HP | Nenhum |
| Gauge port LP | Schrader |
| Generation code | A |
| Glass mounting | Rosqueado |
| Glass torque [Nm] | 50 N-m |
| GP LP torque [Nm] | 15 N-m |
| High value of nominal voltage at 50Hz [V] | 400 V |
| High value of nominal voltage at 60Hz [V] | 460 V |
| High value of voltage range at 50Hz [V] | 440 V |
| High value of voltage range at 60Hz [V] | 506 V |
| IP protection class | IP54 (with cable gland) |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 460 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 414 V |
| LRA | 270 A |
| MCC | 69 A |
| Merged Approval standard and | CE UL |
| Model number | SY300A4PBE |
| Motor protection | Electronic protection module, 110/240 V |
| Mounting torque [Nm] | 40 N-m |
| Nominal cooling capacity at 50Hz | 70.8 kW |
| Nominal cooling capacity at 60Hz | 94.6 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 8 L |
| Oil drain | Rosca de 1/4' |
| Oil drain torque [Nm] | 35 N-m |
| Oil equalization | Rosca de 1/2' |
| Oil equalization torque [Nm] | 66 N-m |
| Oil reference | FVC68D |
| Packaging height [mm] | 780 mm |
| Packaging length [mm] | 510 mm |
| Packaging weight [Kg] | 161 kg |
| Packaging width [mm] | 465 mm |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |
| Power connections | Screw 4.8 mm |
| Product type | SY |
| Refrigerant charge [kg] [Max] | 20 kg |
| Refrigerantes | R134a R22 R407C |
| Relief valve | Sim |
| Reverse rotation protection | Electronic module |
| RLA | 49.3 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Air conditioning |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped instructions | Installation instructions |
| Shipped module | Módulo de proteção eletrônico montado na caixa de terminais |
| Shipped mounting | Kit de montagem com calços e luvas |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 196 mm |
| Suction connection mounting torque [Nm] | 130 N-m |
| Suction connection pipe size [in] | 1.625 in |
| Suction connection rotolock size [in] | 2.25 in |
| Suction connection size [in] | 2.25 in |
| Suction connection sleeve pipe size [in] | 1.625 in |
| Swept volume [cm3] | 437.5 cm3 |
| Technology | Scroll |
| Test dif [bar] [Max] | 24 bar |
| Test HP [bar] [Max] | 32 bar |
| Test LP [bar] [Max] | 20 bar |
| Tipo de conex. | Rotolock |
| Torque earth [Nm] | 2 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 738 mm |
| Type designation | Compressor |
| Viscosity [cP] | 68 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.516 Ohm |
