Produto:MTZ18-4VM DANFOSS REFRIGERATION Compress...

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.
Referência: 061L1324
Fabricante: DANFOSS REFRIGERATION
Descrição:
Categorias:
Produto novo em sua embalagem original com todas as garantias e certificações de DANFOSS REFRIGERATION
JÁ VISTOS
| Gross weight | 0.42 Kg |
| Peso líquido | 0.4 Kg |
| EAN | 5702428531733 |
| Ambient temperature range [°C] [Max] | 55 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 131 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Aprovação | CE VDE |
| Bobina | Não |
| Cap condition 1 [°C] | 0°C sub-cooling 38°C condensing 5°C evaporating 5°C super-heat |
| Cap condition 2 [°C] | 54,4 °C condensing 5°C sub-cooling 5°C super-heat 7,2°C evaporating |
| Design config. Style | E |
| Discharge conn size [in] | 1/2 |
| Discharge conn size [mm] | 12.95 mm |
| Discharge conn type | FEMALE |
| Evap/cond conn size [in] | 5/8 |
| Evap/cond conn size [mm] | 16,03 |
| Max. Leakage [cm³/min] | 1500 cm3/min |
| Medium temperature range [°C] [Max] | 120 °C |
| Medium temperature range [°C] [Min] | -20 °C |
| Medium temperature range [°F] [Max] | 248 °F |
| Medium temperature range [°F] [Min] | -4 °F |
| ODP mín. | 1.7 bar |
| OPD mín. | 24 psi |
| Packing format | Industrial pack |
| Process connection material | Copper |
| Product Group | 4-way reversing valves |

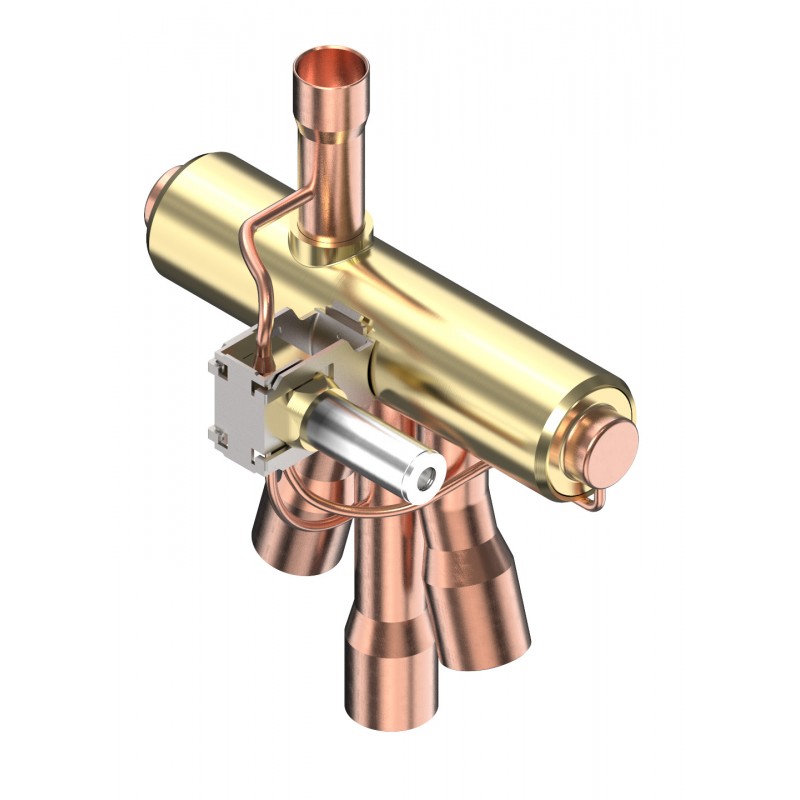

| Product name | 4-way reversing valve |
| Product type | STF |
| Qnt. do pacote | 32 pc |
| Refrigerante | R134a R22 R404A R407C R410A |
| Shock resistance standard | JIS C 60068-2-27 |
| Suction conn size [in] | 5/8 |
| Suction conn size [mm] | 16.03 mm |
| Type designation | STF-0301G2 |
| Valve body temp. max. [°C] | 120 °C |
| Vibration stability [m/s²] | 19.6 m/s2 |
| Vibration test standard | JIS C 60068-2-6 |
