032F5674
DANFOSS REFRIGERATION
1
Home > DANFOSS REFRIGERATION
* Produto novo em sua embalagem original com todas as garantias e certificações de DANFOSS REFRIGERATION
Obrigado pelo seu interesse nos nossos artigos, esperamos que o prazo indicado seja conveniente para si.
Durante a preparação do pedido pode seleccionar o tipo de envío que melhor se adapte ás suas necessidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Gross weight | 12.31 Kg |
Peso líquido | 9.4 Kg |
EAN | 5702428997621 |
Actuator system [mm] | 9 mm |
Ambient temperature range [°C] [Max] | 50 °C |
Ambient temperature range [°C] [Min] | -10 °C |
Ambient temperature range [°F] [Max] | 122 °F |
Ambient temperature range [°F] [Min] | -14 °F |
Aprovação | C UR US PED |
Bobina | Não |
Capacity – Mass flow [kg/h] | 3875 kg/h |
Conn. A size for brazing [in] | 7/8 in |
Conn. A size for welding [in] | 3/4 in |
Conn. A type for brazing | ODF |
Conn. C size for brazing [in] | 7/8 in |
Conn. C size for welding [in] | 3/4 in |
Conn. C type for brazing | ODF |
Conn. E size for brazing [in] | 1 in |
Conn. E size for welding [in] | 1 1/8 in |
Conn. E type for brazing | ODF |
Connection B function | High pressure inlet measuring |
Connection D function | Suction inlet measuring |
Connection F function | Receiver outlet measuring |
Connection Weld size [in] | 0.75 in |
Connection Weld size [mm] | 19 mm |
Connector A function | High pressure inlet |
Connector C function | Suction inlet |
Connector E function | Receiver outlet |
Connectors standard | EN 10220 |
Ejector material | Brass |
Função | NC |
Mass flow conditions | R744/1305 psig/95 °F R744/90 bar/35 °C |
Mass flow Ejector 1[kg/h] | 125 kg/h |
Mass flow Ejector 1[lb/h] | 275.5 lb/h |
Mass flow Ejector 2 [lb/h] | 551 lb/h |
Mass flow Ejector 2[kg/h] | 250 kg/h |
Mass flow Ejector 3 [kg/h] | 500 kg/h |
Mass flow Ejector 3 [lb/h] | 1102 lb/h |
Mass flow Ejector 4 [kg/h] | 1000 kg/h |
Mass flow Ejector 4 [lb/h] | 2204 lb/h |
Mass flow Ejector 5 [kg/h] | 1000 kg/h |
Mass flow Ejector 5 [lb/h] | 2204 lb/h |
Mass flow Ejector 6 [kg/h] | 1000 kg/h |
Mass flow Ejector 6 [lb/h] | 2204 lb/h |
Mat. da conex. | Aço inoxidável |
Mat. do corpo | Aluminum Alloy |
Max.DeltaP E-C conn. [bar] | 20 bar |
Max.DeltaP E-C conn. [psig] | 290 psi |
Media temperature range [°C] [Max] | 50 °C |
Media temperature range [°C] [Min] | -10 °C |
Media temperature range [°F] [Max] | 122 °F |
Media temperature range [°F] [Min] | -14 °F |
MinOPD [bar] | 0.1 bar |
MinOPD [psig] | 1.356452 psig |
Módulo Tipo 1 | 50 KW HP |
Módulo Tipo 2 | 50 KW HP |
Módulo Tipo 3 | 50 KW HP |
Módulo Tipo 4 | 25 KW HP |
Módulo Tipo 5 | 12 KW HP |
Módulo Tipo 6 | 6 KW HP |
OPD máx. | 1220.806 psig |
OPD máx. | 90 bar |
Packing format | Single pack |
Parts Program name | CTM |
PMT | 2030 psig |
Presión de trabajo máx. | 140 bar |
Pressure range category | High pressure |
Pressão máx. de teste | 200 bar |
Pressão máx. de teste | 2716.645 psig |
Product Group | Multi Ejector |

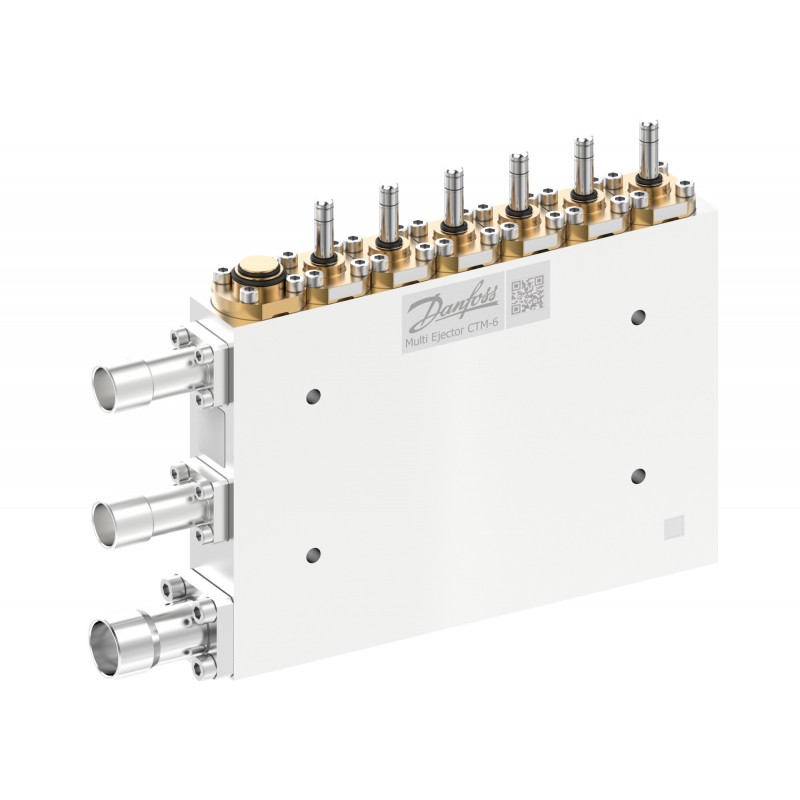

Product name | CTM High pressure valve |
Product type | CTM 6 |
Qnt. do pacote | 1 pc |
Refrigerant oil compatibility | POE PAG |
Refrigerante | R744 |
Rel. Humidity [% RH] [Max] | 100 % |
Rel. Humidity [% RH] [Min] | 0 % |
Serviceable | Multi Ejector spare parts |
Tamanho da conex. soldada | 22 mm |
Tamanho da conex. soldada | 7/8 in |
Temperature range [°C] [Max] | 50 °C |
Temperature range [°C] [Min] | -10 °C |
Temperature range [°F] [Max] | 122 °F |
Temperature range [°F] [Min] | -23 °F |
