Produto:MTZ18-4VM DANFOSS REFRIGERATION Compress...

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

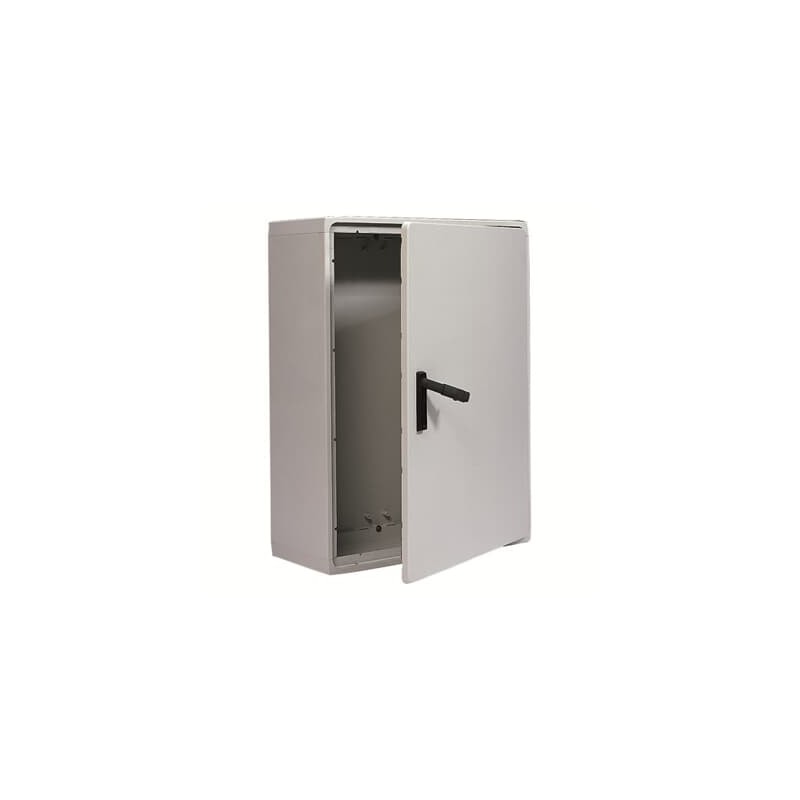

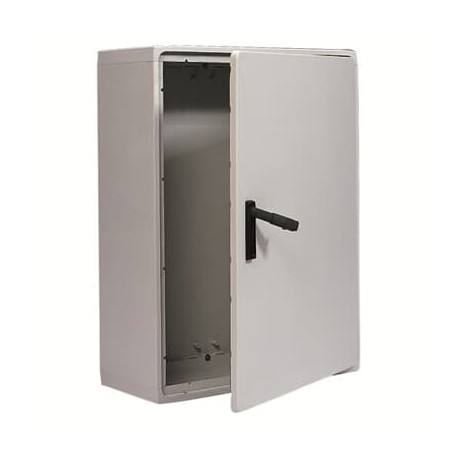

Referência: 4TBP833859C0100
Fabricante: ABB
Descrição:
Categorias:
Produto novo em sua embalagem original com todas as garantias e certificações de ABB
JÁ VISTOS
| Informações Adicionais | |
|---|---|
| Built-In Depth (t2) | 286 mm |
| CAD Dimensional Drawing | 4TBP833859C0100STP |
| CN8 | 8538100000 |
| Color | Grey |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| País de origem | Bosnia and Herzegovina |
| Cover Plate Type | Door |
| Estilo de tampa | with Notch |
| Número de tarifa aduaneira | 8538100000 |
| Ficha de dados, informação técnica | 9AKK107680A5160 |
| Declaração de conformidade -CE | 9AJK000580 |
| Grau de proteção | IP54 |
| Door Surface Finishing | Transparent |
| Door Type | Double |
| EAN | 5411815253973 |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 7 | EC000058 - Empty cabinet |
| ETIM 8 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| EU Data Act Applicability and Compliance | Not Applicable |
| Tipo de invólucro NEMA | Type12 |
| Peso Bruto | 88.5 kg |
| Material da caixa | Plastic |
| Impact Resistance Rating | IK07 |
| Interior Depth | 312 mm |
| Descrição da fatura | PolySafe Encl. IP54 1000x1250x320 winDD |
| Material | GRP (Glass fibre reinforced plastic) |
| Maximum Load Capacity | Enclosure 10791 N |
| Door(s) 7848 N | |
| Mounting Plate 10791 N | |
| Quantidade Mínima de Encomenda | BX 1 piece |
| Tipo de apoio | Floor installation |
| Number of Conduit Inlets | 0 |
| Number of Doors | 2 |
| Number of Flange Openings | 0 |
| Number of Locks | 2 |
| Number of Modules | 0 |
| Number of Rows | 0 |
| Profundidade/Comprimento da embalagem Nível 1 | 1004 mm |
| Nível de Embalagem 1 EAN | 5411815253973 |
| Peso bruto da embalagem Nível 1 | 88.5 kg |
| Altura da embalagem Nível 1 | 1254 mm |
| Unidades de embalagem Nível 1 | box 1 piece |
| Largura da embalagem Nível 1 | 355 mm |
| Package Level 3 Depth / Length | 1.2 m |
| Peso bruto da embalagem Nível 3 | 176.8 kg |
| Package Level 3 Height | 1.3 m |
| Package Level 3 Units | pallet (lift) 2 piece |
| Package Level 3 Width | 0.8 m |
| Power Loss | Total 260 W |
| Δt = 20K - Enclosures 260 W | |
| Tipo de produto principal | Polysafe |
| Nome de Produto | Enclosure |
| Profundidade/Comprimento Líquidos do Produto | 320 mm |
| Altura Líquida do Produto | 1000 mm |
| Peso Líquido do Produto | 84 kg |
| Largura Líquida do Produto | 1250 mm |
| Protection Class | Isolated (Class II) |
| RAL Number | RAL 7035 - Light Grey |
| REACH Date | 20230911 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| ID de Substituição do Produto (ANTIGA) | 833859 |
| Data RoHS | 20220301 |
| Informação RoHS | 9AJK000580 |
| Estado RoHS | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Unidade de medida de venda | piece |
| Breve descrição | PolySafe Encl. IP54 1000x1250x320 winDD |
| Acabamento de superfície | Untreated |
| Thickness | Cabinet Plate 4 mm |
| Door Plate 4 mm | |
| UNSPSC | 39121103 |
| Categoria REEE | Product Not in WEEE Scope |
| Width in Number of Modular Spacings | 0 |
| eClass | V11.0 : 27142408 |
| Product Keywords | Not Available |
