6342-811-101-500
NIESSEN
1

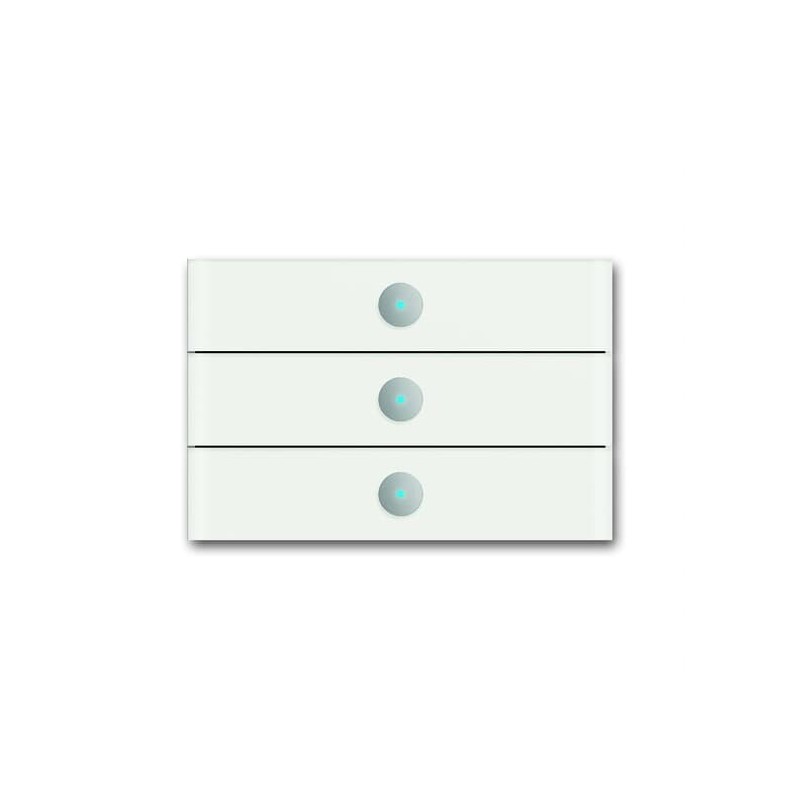

6342-811-101-500 elemento di controllo, 3gang
Sensore 3 canali priOn, CB
Free programmable multi-function control element. For installation in the 1gang, 2gang and 3gang support frame (6346/10-101, 6346/11-101 and 6346/12-101) Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. The accompanying symbol can be replaced by the symbols for lighting (6353/20-xxx), blinds (6353/30-xxx), Thermostat (6353/40-xxx) and scene (6353/50-xxx). For the setting and control of the RTR functions and texts of the display RTR, IR, and proximity sensor end strip (6351/0x-821).
sistemi di bus per impianti > Sensore a contatto per bus system
KNX-EIB
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de NIESSEN
Grazie per il suo interesse nei nostri prodotti, speriamo che il tempo di consegna indicato sia conveniente per lei.
Durante l’elaborazione dell’ordine potrà selezionare il tipo di invio che meglio si adatti alle sue necessità: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Identificatore | Descrizione | Tipo | Qtà | Unità di misura |
---|---|---|---|---|
2CKA006310A0137 | 6346/11-101-500 Support frame 2-gang | 6346/11-101-500 | 1 | pezzo (i) |
2CKA006310A0135 | 6346/10-101-500 Support frame 1-gang | 6346/10-101-500 | 1 | pezzo (i) |
2CKA006310A0139 | 6346/12-101-500 Support frame 3-gang | 6346/12-101-500 | 1 | pezzo (i) |
2CKA006120A0075 | 6120/12-101-500 Bus coupler, FM | 6120/12-101-500 | 1 | pezzo (i) |
2CKA006120A0072 | 6120/13-500 Power bus coupler, FM | 6120/13-500 | 1 | pezzo (i) |
2CDG120037R0011 | CP-D24/2.5 priOn Power Supply, 24 V DC, 2.5 A, MDRC | CP-D24/2.5 | 1 | pezzo (i) |
2CKA006133A0201 | 6149/21-500 Programming Interface/Adapter | 6149/21-500 | 1 | pezzo (i) |
2CKA006310A0147 | 6348-24G-101-500 Upper end strip | 6348-24G-101-500 | 1 | pezzo (i) |
2CKA006310A0178 | 6348-811-101-500 Upper end strip | 6348-811-101-500 | 1 | pezzo (i) |
2CKA006310A0146 | 6348-825-101-500 Upper end strip | 6348-825-101-500 | 1 | pezzo (i) |
2CKA006310A0144 | 6348-860-101-500 Upper end strip | 6348-860-101-500 | 1 | pezzo (i) |
2CKA006310A0157 | 6350-825-101-500 Upper end strip, IR | 6350-825-101-500 | 1 | pezzo (i) |
2CKA006310A0155 | 6349-24G-101-500 Lower end strip | 6349-24G-101-500 | 1 | pezzo (i) |
2CKA006310A0180 | 6349-811-101-500 Lower end strip | 6349-811-101-500 | 1 | pezzo (i) |
2CKA006310A0154 | 6349-825-101-500 Lower end strip | 6349-825-101-500 | 1 | pezzo (i) |
2CKA006310A0152 | 6349-860-101-500 Lower end strip | 6349-860-101-500 | 1 | pezzo (i) |
2CKA006310A0165 | 6352-24G-101-500 Lower end strip, Temperature sensor | 6352-24G-101-500 | 1 | pezzo (i) |
2CKA006310A0182 | 6352-811-101-500 Lower end strip, Temperature sensor | 6352-811-101-500 | 1 | pezzo (i) |
2CKA006310A0164 | 6352-825-101-500 Lower end strip, Temperature sensor | 6352-825-101-500 | 1 | pezzo (i) |
2CKA006310A0162 | 6352-860-101-500 Lower end strip, Temperature sensor | 6352-860-101-500 | 1 | pezzo (i) |
2CKA006310A0183 | 6351/08-825-500 Upper end strip, RTC | 6351/08-825-500 | 1 | pezzo (i) |
Titolo: | Dimensione: | Tipo: |
---|---|---|
6342-811-101-500 6342-811-101-500 IT_6342-811-101-500.pdf | 97 Kbytes |
