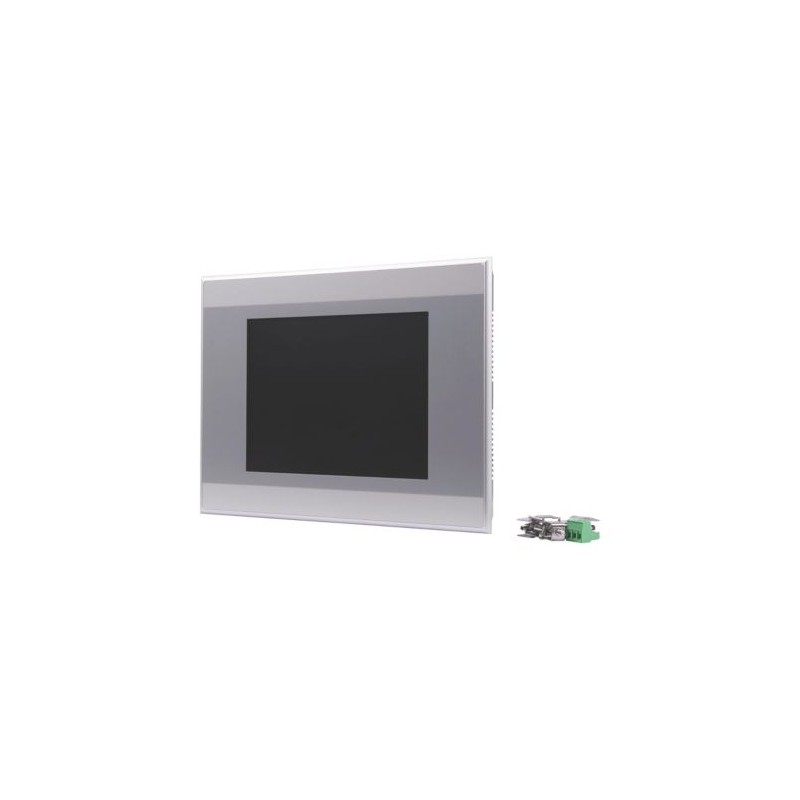

XV-152-D8-84TVR-10 150604 Y7-150604 EATON ELECTRIC Touch panel, 24VDC, 8,4z, TFTcolor, ethernet, RS232, RS48..
XV-152-D8-84TVR-10
150604
Y7-150604
EATON-MOELLER
Touch panel, 24VDC, 8,4z, TFTcolor, ethernet, RS232, RS485, Profibus, (PLC)
Terminale tattile 8.4" TFT Resistivo Colore Ethernet RS323 RS485
Eaton XV-152 Touch panel, 24 V DC, 8.4z, TFTcolor, ethernet, RS232, RS485, profibus, (PLC)
sistemi di controllo industriali (PLC) > pannello grafico
Terminali Touch HMI
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton XV-152 Touch panel
Catalog Number
150604
EAN
7640130097162
Product Length/Depth
275 mm
Product Height
52.5 mm
Product Width
208 mm
Product Weight
2.15 kg
Certifications
IEC/EN 61131-2
UL
EN 60950
Security:
UL 60950
Certified by UL for use in Canada
IEC/EN 61000-6-3
IEC/EN 61241-0 (ATEX 94/9/EG: Zone 22, Category 3D (II 3D Ex tc IIIC T70°C IP6x)
CUL508
EN 50178
IEC/EN 61000-6-4
ATEX 94/9/EG: Zone 22, Category 3D (II 3D Ex tc IIIC T70°C IP6x)
CULus
IEC/EN 61000-6-2
IEC/EN 61131-2, CE
DNV GL
IEC/EN 60950
IEC/EN 60079-0 (ATEX 94/9/EG: Zone 22, Category 3D (II 3D Ex tc IIIC T70°C IP6x)
UL File No.: E205091
CSA File No.: UL report applies to both US and Canada
IEC/EN 61241-1 (ATEX 94/9/EG: Zone 22, Category 3D (II 3D Ex tc IIIC T70°C IP6x)
UL Category Control No.: NRAQ
CSA Class No.: none
UL 508
UL508
EAC
UL
EN 60950
Security:
UL 60950
Certified by UL for use in Canada
IEC/EN 61000-6-3
IEC/EN 61241-0 (ATEX 94/9/EG: Zone 22, Category 3D (II 3D Ex tc IIIC T70°C IP6x)
CUL508
EN 50178
IEC/EN 61000-6-4
ATEX 94/9/EG: Zone 22, Category 3D (II 3D Ex tc IIIC T70°C IP6x)
CULus
IEC/EN 61000-6-2
IEC/EN 61131-2, CE
DNV GL
IEC/EN 60950
IEC/EN 60079-0 (ATEX 94/9/EG: Zone 22, Category 3D (II 3D Ex tc IIIC T70°C IP6x)
UL File No.: E205091
CSA File No.: UL report applies to both US and Canada
IEC/EN 61241-1 (ATEX 94/9/EG: Zone 22, Category 3D (II 3D Ex tc IIIC T70°C IP6x)
UL Category Control No.: NRAQ
CSA Class No.: none
UL 508
UL508
EAC
Model Code
XV-152-D8-84TVR-10
Features & Functions
Enclosure material
Metal, anodized
Features
Ethernet interface
USB Host
Fanless CPU and system cooling, natural convection-based passive cooling
USB device
Overload proof
Portrait format
UL508, cUL approvals
Slot for SD card
USB Host
Fanless CPU and system cooling, natural convection-based passive cooling
USB device
Overload proof
Portrait format
UL508, cUL approvals
Slot for SD card
Fitted with:
1 x PROFIBUS/MPI (built-in interface)
1 x RS232 (built-in interface)
Message system (incl. buffer and confirmation)
Printer output
SW interfaces
1 x Ethernet 10/100 Mbps (built-in interfaces)
1 x USB host 2.0 (built-in interface)
Recipes
1 x USB device (built-in interface)
Message indication
Alpha numeric keyboard
Color display
1 x RS485 (built-in interface)
Numeric keyboard
1 x RS232 (built-in interface)
Message system (incl. buffer and confirmation)
Printer output
SW interfaces
1 x Ethernet 10/100 Mbps (built-in interfaces)
1 x USB host 2.0 (built-in interface)
Recipes
1 x USB device (built-in interface)
Message indication
Alpha numeric keyboard
Color display
1 x RS485 (built-in interface)
Numeric keyboard
Functions
Additional software components, loadable
Process default value (input) possible
Process value representation (output) possible
Process default value (input) possible
Process value representation (output) possible
General
Battery runtime
Back-up of real-time clock: CR 2032 (190 mA/h), zero maintenance (soldered)
Current consumption
0.6 A, continuous current, Power Supply, 24 V DC
Degree of protection
IP20
IP20, rear
NEMA 4X
IP20, rear
NEMA 4X
Degree of protection (front side)
NEMA 4X
IP65
IP65
Fuse type
Built-in fuse (not accessible)
Lifespan
40,000 h (Service life of back-lighting)
Model
Metal enclosure and front plate
Mounting method
Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")
Flush mounting
Flush mounting - Inclination from vertical: ±45° (if using natural convection)
Flush mounting
Flush mounting - Inclination from vertical: ±45° (if using natural convection)
Product category
HMI-PLC (SPS function, retrofittable)
Repetition rate
1 s
Residual ripple
≤ 5 % (input voltage)
RoHs conformity
Yes
Short-circuit protection
Yes, Short-circuit rating, SmartWire-DT supply voltage
No, external fuse FAZ Z3, Supply voltage UAux
No, external fuse FAZ Z3, Supply voltage UAux
Software
XSOFT-CODESYS-3, PLC-Programming software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
GALILEO, Visualization software, Engineering
XSOFT-CODESYS-3, Visualization software, Engineering
EPAM, Visualization software, Engineering
XSOFT-CODESYS-2, Visualization software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
GALILEO, Visualization software, Engineering
XSOFT-CODESYS-3, Visualization software, Engineering
EPAM, Visualization software, Engineering
XSOFT-CODESYS-2, Visualization software, Engineering
Terminal capacity
24 - 16 AWG, solid or stranded
0.25 - 1.5 mm², flexible with ferrule
0.2 - 1.5 mm², solid
0.25 - 1.5 mm², flexible with ferrule
0.2 - 1.5 mm², solid
Voltage type
DC
Ambient conditions, mechanical
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
Vibration resistance
According to IEC/EN 60068-2-6
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-20 °C
Ambient storage temperature - max
60 °C
Operating temperature - min
0 °C
Operating temperature - max
50 °C
Relative humidity
10 - 95 % (non-condensing)
IEC/EN 50178
IEC/EN 50178
Electro magnetic compatibility
Voltage dips
≤ 10 ms from rated voltage (24 V DC)
≤ 10 ms, Bridging voltage dips
5 ms from undervoltage (19.2 V DC)
≤ 10 ms, Bridging voltage dips
5 ms from undervoltage (19.2 V DC)
Electrical rating
Inrush current
12.5 A (for 6 ms)
Permissible voltage
18.0 - 31.2 V DC, absolute with ripple
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
35 V DC (for a duration of < 100 ms)
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
35 V DC (for a duration of < 100 ms)
Power consumption
2.5 W (USB Slave to USB Host)
Max. 12 W
9.5 W total
12 W
Max. 12 W
9.5 W total
12 W
Rated control supply voltage
24 V DC (UPOW, -20 %/+25 %)
24 V DC (UAUX, -20 %/+25 %)
24 V DC (UAUX, -20 %/+25 %)
Rated operational current (Ie)
0.7 A
Rated operational voltage
14.5 V (± 3 % - SmartWire-DT)
24 V DC (power-supply - safety extra low voltage)
24 V DC (power-supply - safety extra low voltage)
Supply current
3 A, Imax, Supply voltage UAux
0.7 A, Imax, SmartWire-DT supply
0.7 A, Imax, SmartWire-DT supply
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
20.4 VDC
Supply voltage at DC - max
28.8 VDC
Communication
Addressing
Address set automatically
Connection
SmartWire-DT blade terminal SWD4-8MF2
Connection type
SWD: Plug, 8-pole
Push in terminals, Supply voltage
Push in terminals, Supply voltage
Data transfer rate
250 kBit/s, SmartWire-DT
125 kBit/s, SmartWire-DT
125 kBit/s, SmartWire-DT
Interfaces
USB 2.0 device (not galvanically isolated)
Ethernet (100Base-TX/10Base-T)
Ethernet (100Base-TX/10Base-T)
LED indicator
Status indication of SmartWire-DT network: Configurable green or red LED
Status indication of SmartWire-DT master: Green and red LEDs
Status indication of Supply voltage: LED
Status indication of SmartWire-DT master: Green and red LEDs
Status indication of Supply voltage: LED
Number of slots
1 (for SD-Card)
Number of SmartWire-DT slaves
58
Protocol
PROFIBUS
EtherNet/IP
TCP/IP
Other bus systems
MODBUS
EtherNet/IP
TCP/IP
Other bus systems
MODBUS
Station
SmartWire-DT master, SmartWire-DT network
Display
Display contrast ratio
300:1
Display lighting
Dimmable via software
LED
LED
Display size
170 x 128 mm
Display type
Color display, TFT
Standard front with standard membrane (fully enclosed)
TFT
Standard front with standard membrane (fully enclosed)
TFT
Luminance intensity
250 cd/m²
Number of colors of the display
65536
Screen size (diagonal)
8.4 in
Touch technology
Touch sensor (glass with foil), Resistive touch protective screen
Resistive touch
Glass with film touch sensor
Resistive touch
Glass with film touch sensor
Input/Output
Resolution
Safety
Explosion safety category for dust
ATEX dust-ex-protection, in relation to CE
ATEX dust-ex-protection, II 3D Ex II T70°C IP5x: Zone 22, Category 3D
ATEX dust-ex-protection, II 3D Ex II T70°C IP5x: Zone 22, Category 3D
Potential isolation
UAUX: no
Power supply: no
Between UPow and 15 V SmartWire-DT supply voltage: no
Power supply: no
Between UPow and 15 V SmartWire-DT supply voltage: no
Protection against polarity reversal
Yes
Yes, for supply voltage (Siemens MPI optional)
Yes, for supply voltage (Siemens MPI optional)
System
Backup time
10 years, typ. (time at zero voltage)
Memory
NOR-Flash: 2 MByte
64 MByte internal DRAM (OS, Program and data memory)
SD Memory Card Slot: SDA Specification 1.00 (External)
NAND-Flash (can be used for data backup): approx. 64 MByte available
NVRAM (Retain data): 125 kByte
64 MByte internal DRAM (OS, Program and data memory)
SD Memory Card Slot: SDA Specification 1.00 (External)
NAND-Flash (can be used for data backup): approx. 64 MByte available
NVRAM (Retain data): 125 kByte
Memory capacity
64,000 kByte
Operating system
Windows CE 5.0 (license included)
Processor
RISC CPU, 32 Bit, 400 MHz
Design verification
Equipment heat dissipation, current-dependent Pvid
14.5 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
14.5 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XV-152-D8-84TVR-10 Y7-150604 150604 FR_150608.pdf | 2 Mbytes |
|
Recensioni: (0) ▲
Nessun commento per il momento.
Inserisci recensione
nascondi form
| Valutazione: |
|
| Nome: | |
| Email: | |
| Titolo: | |
| Testo: | |
| Mi consiglia questo prodotto da acquistare? | |
|
|
|
| Inserisci recensione | |
Tutti i feedback che riceviamo dagli elementi che offriamo sono reali e verificati. Un piccolo gesto, ma di grande valore. Quindi grazie per quel minuto si spende in noi lasciare il vostro parere e punteggio sui prodotti, perché ci aiuta a continuare a migliorare e di offrire ancora maggiore qualità del servizio.
