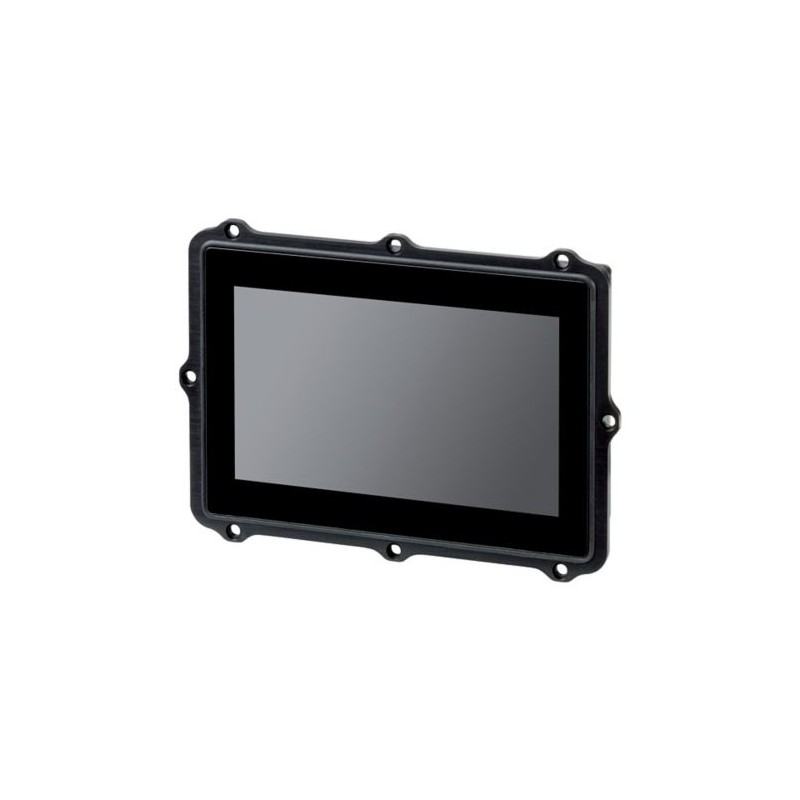

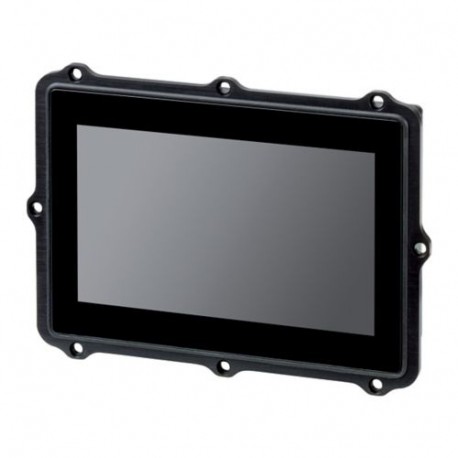

XV-313-70-B00-A00-1C 179671 EATON ELECTRIC Pannello di comando per montaggio posteriore 24VDC display PCT 7 ..
XV-313-70-B00-A00-1C
179671
EATON-MOELLER
Pannello di comando per montaggio posteriore; 24VDC; display PCT 7 pollici; 1024x600 Pixel; 2xEthernet; 1xRS232; 1xRS485; 1xCAN; 1xSD slot; funzione PLC equipaggiabile successivamente
Terminale touch capacitivo multi-touch da 7" 1024 x 600 Ethernet
Eaton XV-313 Rear mounting control panel; 24VDC;7 Inches PCT-Displ.;1024x600;2xEthernet;1xRS232;1xRS485;1xCAN;1xSD slot;PLC function can be fitted by user
sistemi di controllo industriali (PLC) > pannello grafico
Terminali Touch HMI
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton XV-313 Touch panel
Catalog Number
179671
EAN
7640130098800
Product Length/Depth
209 mm
Product Height
55.7 mm
Product Width
151 mm
Product Weight
0.8 kg
Certifications
EN 50178
CE
EMC according to 2014/30/EU
UL
UL 61010-2-201
CUL
IEC/EN 61131-2
UL File No.: E205091
Certified by UL for use in Canada
DNV GL
CE
EMC according to 2014/30/EU
UL
UL 61010-2-201
CUL
IEC/EN 61131-2
UL File No.: E205091
Certified by UL for use in Canada
DNV GL
Model Code
XV-313-70-B00-A00-1C
Features & Functions
Enclosure material
Insulated material
Features
Fanless CPU and system cooling, natural convection-based passive cooling
Ethernet interface
RS485
Target and web visualization
Portrait format
Slot for SD card
USB device
RS232
USB Host
Operating System Windows Embedded Compact 7 pro
Integrated Runtime visualization software license
CAN
Ethernet interface
RS485
Target and web visualization
Portrait format
Slot for SD card
USB device
RS232
USB Host
Operating System Windows Embedded Compact 7 pro
Integrated Runtime visualization software license
CAN
Fitted with:
Message system (incl. buffer and confirmation)
Recipes
SW interfaces
Color display
Printer output
1 x USB device (built-in interface)
1 x RS485 (built-in interface)
1 x Ethernet 10/100 Mbps (built-in interfaces)
Message indication
1 x CANopen®/easyNet (built-in interfaces)
1 x RS232 (built-in interface)
1 x USB host 2.0 (built-in interface)
Recipes
SW interfaces
Color display
Printer output
1 x USB device (built-in interface)
1 x RS485 (built-in interface)
1 x Ethernet 10/100 Mbps (built-in interfaces)
Message indication
1 x CANopen®/easyNet (built-in interfaces)
1 x RS232 (built-in interface)
1 x USB host 2.0 (built-in interface)
Functions
Process default value (input) possible
Process value representation (output) possible
Additional software components, loadable
Process value representation (output) possible
Additional software components, loadable
General
Battery runtime
Back-up of real-time clock: BR 2330, non-replaceable (soldered)
Degree of protection
NEMA 4X
NEMA 12
IP20, rear (according to EN 60529-1)
NEMA 12
IP20, rear (according to EN 60529-1)
Degree of protection (front side)
NEMA 12
IP65
IP65
Fuse type
Built-in fuse (not accessible)
Lifespan
50,000 h (Service life of back-lighting)
Model
Plastic enclosure and glass panel in aluminum mounting frame
Mounting method
Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")
Rear mounting
Flush mounting - Inclination from vertical: ±45° (if using natural convection)
Rear mounting
Flush mounting - Inclination from vertical: ±45° (if using natural convection)
Potential isolation
Power supply: no
Protection against polarity reversal
Yes, for supply voltage (Siemens MPI optional)
Product category
HMI-PLC (integrated SPS function)
RoHs conformity
Yes
Software
GALILEO, Visualization software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
XSOFT-CODESYS, Visualization software, Engineering
XSOFT-CODESYS-3, PLC-Programming software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
XSOFT-CODESYS, Visualization software, Engineering
XSOFT-CODESYS-3, PLC-Programming software, Engineering
Type
Control panel with PLC for rear mounting
Voltage type
DC
Ambient conditions, mechanical
Shock resistance
15 g, 11 ms, Mechanical
Vibration resistance
5 - 9 Hz, ± 3.5 mm
60 - 150 Hz, ± 2 g
9 - 60 Hz, ± 0.15 mm
60 - 150 Hz, ± 2 g
9 - 60 Hz, ± 0.15 mm
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-20 °C
Ambient storage temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Dry heat to IEC 60068-2-2
Cold to EN 60068-2-1
Dry heat to IEC 60068-2-2
Cold to EN 60068-2-1
Environmental conditions
Condensation: Non-condensing
Operating temperature - min
0 °C
Operating temperature - max
50 °C
Relative humidity
10 - 95 % (non-condensing)
Electro magnetic compatibility
Emitted interference
According to IEC/EN 61000-6-4
Interference immunity
According to EN 61000-6-2
Voltage dips
≤ 10 ms from rated voltage (24 V DC)
5 ms from undervoltage (19.2 V DC)
5 ms from undervoltage (19.2 V DC)
Electrical rating
Permissible voltage
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
35 V DC (for a duration of < 100 ms)
18.0 - 31.2 V DC, absolute with ripple
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
35 V DC (for a duration of < 100 ms)
18.0 - 31.2 V DC, absolute with ripple
Power consumption
Max. 14.4 W
14 W typ.
11.9 W
14 W typ.
11.9 W
Rated operational voltage
24 V DC (power-supply - safety extra low voltage)
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
19.2 VDC
Supply voltage at DC - max
30 VDC
Communication
Interfaces
USB 2.0 host (not galvanically isolated)
USB 2.0 device (not galvanically isolated)
10/100 Mbps Ethernet connection
RS485 (not galvanically isolated, 9-pin SUB-D plug, UNC)
CAN (not galvanically isolated, 9-pin SUB-D plug, UNC)
RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC)
USB 2.0 device (not galvanically isolated)
10/100 Mbps Ethernet connection
RS485 (not galvanically isolated, 9-pin SUB-D plug, UNC)
CAN (not galvanically isolated, 9-pin SUB-D plug, UNC)
RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC)
Number of slots
1 (for SD-Card)
Protocol
CAN
MODBUS
TCP/IP
EtherNet/IP
EtherCAT
MODBUS
TCP/IP
EtherNet/IP
EtherCAT
Display
Display contrast ratio
850:1
Display lighting
LED
Dimmable via software
Dimmable via software
Display size
16:9
153.6 x 90.0 mm
153.6 x 90.0 mm
Display type
TFT
Anti-glare tempered glass without bezel
Color display, TFT, anti-glare
Anti-glare tempered glass without bezel
Color display, TFT, anti-glare
Luminance intensity
400 cd/m²
Number of colors of the display
16777216
Resolution
Screen size (diagonal)
7 in
Touch technology
Multi-touch touch panel touch sensor
Projected Capacitive Touch (PCT)
Capacitive multitouch
Projected Capacitive Touch (PCT)
Capacitive multitouch
System
Backup time
10 years, typ. (time at zero voltage)
Memory
NVRAM: 128kByte Retain
DRAM: 512 MByte RAM
Flash: 1 GByte SLC
SD card, Type: SDSC, SDHC (external memory)
DRAM: 512 MByte RAM
Flash: 1 GByte SLC
SD card, Type: SDSC, SDHC (external memory)
Memory capacity
512,000 kByte
Operating system
Windows Embedded Compact 7 Pro
Processor
ARM Cortex-A9 800 MHz
Design verification
Equipment heat dissipation, current-dependent Pvid
14.4 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
14.4 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
