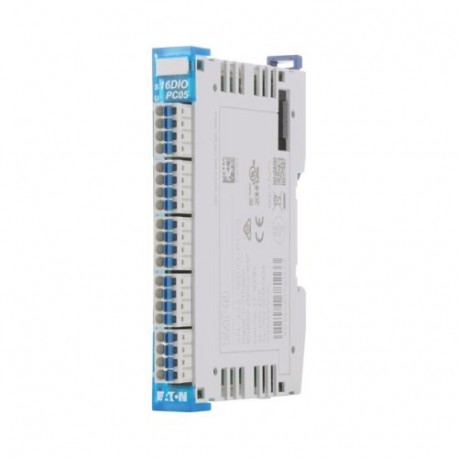

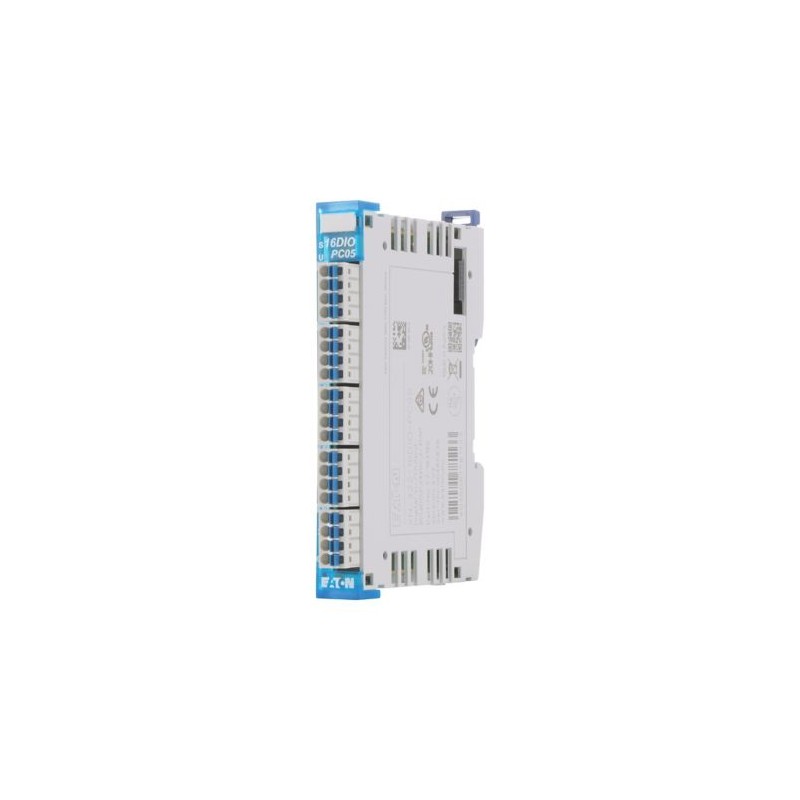

XN-322-16DIO-PC05 183180 Y7-183180 EATON ELECTRIC Digital I/O module, 8 digital inputs and 8 digital outputs..
XN-322-16DIO-PC05
183180
Y7-183180
EATON-MOELLER
Digital I/O module, 8 digital inputs and 8 digital outputs 24 V DC each, pulse-switching, Meter
Modulo XN300; 8 ingressi digitali + 8 uscite digitali da 0,5A; Con
Modulo I/O digitale con quattro ingressi da 24 VDC / 3,7 mA (EN 61131-2 tipo 1) con filtro di ingresso da 0,5 ms. Quattro ingressi aggiuntivi da 24 VDC/3,7 mA (EN61131-2 Tipo 1) con un filtro di ingresso da 0,001 ms possono essere utilizzati come quattro contatori a 8 bit o due a 16 bit con una frequenza di ingresso fino a 25 kHz. Modulo I/O digitale con otto uscite a prova di cortocircuito da 24 V CC / 0,5 A, con diagnostica di sottotensione per le linee di alimentazione.
sistemi di controllo industriali (PLC) > bus di campo, periferica remota – modulo I/O digitale
Moduli I / O remoti XN300
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton XN-322 I/O module
Catalog Number
183180
EAN
4015081781133
Product Length/Depth
104.2 mm
Product Height
16.8 mm
Product Width
80.3 mm
Product Weight
0.061 kg
Certifications
IEC/EN 61131-2
CE
CULus
UL File No.: E135462
IEC/EN 61000-6-4
IEC/EN 61000-6-2
CE
CULus
UL File No.: E135462
IEC/EN 61000-6-4
IEC/EN 61000-6-2
Model Code
XN-322-16DIO-PC05
Features & Functions
Electric connection type
Plug-in connection
Features
Digital inputs configurable
Fieldbus connection over separate bus coupler possible
Fieldbus connection over separate bus coupler possible
Functions
X1 signal analysis
4X signal analysis
Short-circuit protection, outputs available
4X signal analysis
Short-circuit protection, outputs available
Operating mode
Incremental encoder (A, B)
Counter mode
Counter mode
General
Counter frequency
25 kHz
100 kHz
100 kHz
Current consumption
None mA (typ.), for +24 V, Power supply - Input
50 mA (typ.), for +5 V power supply (internal), Power supply - Input
50 mA (typ.), for +5 V power supply (internal), Power supply - Input
Degree of protection
IP20
Input frequency
25 kHz
Mounting method
Rail mounting possible
Number of channels
8, Digital Outputs
Overvoltage category
III
Pollution degree
3
Product category
XN-322 digital input and output module
Resolution
Type
- Digital I/O module with four 24 V DC / 3.7 mA (EN61131-2 type 1) inputs with a 0.5 ms input filter. Additional four 24 V DC / 3.7 mA (EN61131-2 type 1) inputs with a 0.001 ms input filter can be used as four 8-bit or two 16-bit counters with an input frequency of up to 25 kHz. Digital I/O module with eight 24 V DC / 0.5 A short-circuit proof outputs, featuring undervoltage diagnostics for the power supply rails.
- XN300 I/O slice module
Used with
XN300
XN-312-…
XN-312-…
Voltage type
DC
Ambient conditions, mechanical
Height of fall (IEC/EN 60068-2-32) - max
1 m
Mounting method
Rail mounting possible
Shock resistance
15 g, Mechanical, Half-sinusoidal shock 11 ms, 18 Impacts
Vibration resistance
5 - 8.4 / 8.4 -150 Hz, 3,5 mm / 1 g
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
60 °C
Ambient storage temperature - min
-20 °C
Ambient storage temperature - max
85 °C
Climatic proofing
Dry heat to IEC 60068-2-2
Damp heat, constant, to IEC 60068-2-3
Damp heat, constant, to IEC 60068-2-3
Environmental conditions
Condensation: prevent with appropriate measures
Relative humidity
0 - 95 % (non-condensing)
Electro magnetic compatibility
Air discharge
8 kV
Burst impulse
2 kV, Supply cable
1 kV, Signal cable
1 kV, Signal cable
Contact discharge
4 kV
Electromagnetic fields
1 V/m at 2 - 2.7 GHz (according to IEC EN 61000-4-3)
10 V/m at 0.08 - 1.0 GHz (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
10 V/m at 0.08 - 1.0 GHz (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
Emitted interference
40 dB (at 30 - 230 MHz, Class A, radiated, high frequency)
47 dB (at 230 - 1000 MHz, Class A, radiated, high frequency)
47 dB (at 230 - 1000 MHz, Class A, radiated, high frequency)
Radiated RFI
10 V
Surge rating
1 kV, Signal cable, unbalanced, EMC
0.5/0.5 kV, Supply cable, balanced/unbalanced), EMC
0.5/0.5 kV, Supply cable, balanced/unbalanced), EMC
Voltage dips
Voltage dips: 10 ms/Voltage fluctuations: Yes
Terminal capacities
Terminal capacity
0.25 - 1.5 mm², with ferrules without plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
0.2 - 1.5 mm², solid, H07V-U
0.2 - 1.5 mm², flexible without ferrule, H07V-K
24 - 16 AWG
0.25 - 0.75 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
0.2 - 1.5 mm², solid, H07V-U
0.2 - 1.5 mm², flexible without ferrule, H07V-K
24 - 16 AWG
0.25 - 0.75 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
Gauge pin
A1 (according to IEC/EN 60947-1)
Stripping length (main cable)
10 mm
Insulating material group
I
Electrical rating
Rated operational voltage
160 V (terminations)
24 V (terminal +1)
24 V (terminal +1)
Short-circuit protection
Yes, Short-circuit rating, Digital outputs
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
18 VDC
Supply voltage at DC - max
30 VDC
Communication
Protocol
Other bus systems
Input/Output
Delay time
< 150 µs, Digital outputs, Delay on signal change and resistive load, from Low to High signal
< 150 µs, Digital outputs, Delay on signal change and resistive load, from High to Low signal
< 150 µs, Digital outputs, Delay on signal change and resistive load, from High to Low signal
Input
Digital inputs (according to EN61131-2 Type 1)
Input current
≤ 1.1 mA (Digital inputs, low level)
3.7 mA (Digital inputs)
≥ 2.3 mA (Digital inputs, high level)
3.7 mA (Digital inputs)
≥ 2.3 mA (Digital inputs, high level)
Input current at signal 1
3.7 mA
Input delay
5000 µs (falling edge)
1 µs (falling edge)
5000 µs (rising edge)
1 µs (rising edge)
1 µs (falling edge)
5000 µs (rising edge)
1 µs (rising edge)
Input voltage
0 - 8 V (Digital inputs, low level)
24 V DC (Digital inputs)
14 - 30 V (Digital inputs, high level)
0 - 8 V (low level)
24 V DC (Digital inputs)
14 - 30 V (Digital inputs, high level)
0 - 8 V (low level)
Load current
Not specified by plug manufacturer
Load resistance
> 48 Ω
Number of inputs (digital)
8
Number of outputs (digital)
8
Output
Protective devices must be installed directly at the inductive load in order to prevent interference.
Output current
< 0.5 mA (low level)
0.5 A
≤ 500 mA (high level, Digital outputs)
0.5 A
≤ 500 mA (high level, Digital outputs)
Output voltage
24 V DC (digital outputs)
< 1 V DC (Low level, digital outputs)
< 24 V DC (High level, digital outputs)
< 1 V DC (Low level, digital outputs)
< 24 V DC (High level, digital outputs)
Utilization factor
100 % (Ʃ IAmax = 4A)
Safety
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Power supply, Input: no
Between Digital inputs: no
Digital inputs, Input delay: no
Between Digital outputs: no
Between Digital inputs: no
Digital inputs, Input delay: no
Between Digital outputs: no
Design verification
Equipment heat dissipation, current-dependent Pvid
0.25 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
2.615 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| tensione di alimentazione AC 50 Hz (EF007532) | 0 V |
| tensione di alimentazione AC 60 Hz (EF007533) | 0 V |
| tensione di alimentazione DC (EF007534) | 18 V |
| tipo di tensione di alimentazione (EF002991) | DC |
| numero di ingressi digitali (EF001992) | 8 |
| numero di uscite digitali (EF001993) | 8 |
| ingressi digitali configurabili (EF008516) | Sì |
| uscite digitali configurabili (EF008520) | No |
| corrente d'entrata per segnale 1 (EF001428) | 3.7 mA |
| tensione ammessa nell'ingresso (EF007554) | 0 V |
| tipo di tensione d'ingresso (EF003033) | DC |
| tipo di uscita digitale (EF003601) | transistor |
| corrente d'uscita (EF003202) | 0.5 A |
| tensione ammessa nell'uscita (EF007553) | 0 V |
| tipo di tensione d'uscita (EF008222) | DC |
| protezione da corto circuito, uscite presenti (EF003203) | Sì |
| numero di interfacce HW Industrial Ethernet (EF003020) | 0 |
| numero di interfacce PROFINET (EF006932) | 0 |
| numero di interfacce HW seriali RS232 (EF003021) | 0 |
| numero di interfacce HW seriali RS422 (EF003022) | 0 |
| numero di interfacce HW seriali RS485 (EF003023) | 0 |
| numero di interfacce HW seriali TTY (EF003024) | 0 |
| numero di interfacce HW parallele (EF003026) | 0 |
| numero di interfacce HW wireless (EF006933) | 0 |
| numero di interfacce HW USB (EF003025) | 0 |
| numero di interfacce HW altre (EF003027) | 1 |
| con interfaccia ottica (EF003028) | No |
| supporta il protocollo per EtherCAT (EF017564) | No |
| supporta il protocollo per TCP/IP (EF003050) | No |
| supporta il protocollo per PROFIBUS (EF003052) | No |
| supporta il protocollo per CAN (EF003053) | No |
| supporta il protocollo per INTERBUS (EF003054) | No |
| supporta il protocollo per ASI (EF003051) | No |
| supporta il protocollo per EIB (EF003055) | No |
| supporta il protocollo pour Modbus (EF003057) | No |
| supporta il protocollo per Data-Highway (EF003058) | No |
| supporta il protocollo per DeviceNet (EF003059) | No |
| supporta il protocollo per SUCONET (EF003060) | No |
| supporta il protocollo per LON (EF003017) | No |
| supporta il protocollo per PROFINET IO (EF007525) | No |
| supporta il protocollo per PROFINET CBA (EF007524) | No |
| supporta il protocollo per SERCOS (EF006657) | No |
| supporta il protocollo per Foundation Fieldbus (EF007522) | No |
| supporta il protocollo per EtherNet/IP (EF007521) | No |
| supporta il protocollo per AS-Interface Safety at Work (EF007519) | No |
| supporta il protocollo per DeviceNet Safety (EF007520) | No |
| supporta il protocollo per INTERBUS-Safety (EF006662) | No |
| supporta il protocollo per PROFIsafe (EF007526) | No |
| supporta il protocollo per SafetyBUS p (EF007527) | No |
| supporta il protocollo per altri sistemi bus (EF003062) | Sì |
| standard radio Bluetooth (EF007178) | No |
| standard radio WLAN 802.11 (EF007179) | No |
| standard radio GPRS (EF008523) | No |
| standard radio GSM (EF008524) | No |
| standard radio UMTS (EF008525) | No |
| link IO master (EF007298) | No |
| componenti del sistema (EF004118) | Sì |
| grado di protezione (IP) (EF005474) | IP20 |
| tipo di collegamento elettrico (EF003961) | raccordo a innesto |
| tempo di ritardo al cambio di segnale (EF002382) | 0 ms |
| collegamento bus di campo tramite accoppiatore separato possibile (EF004002) | Sì |
| montaggio su guida portante possibile (EF003972) | Sì |
| montaggio a parete/diretto possibile (EF007020) | No |
| montaggio frontale possibile (EF007016) | No |
| montaggio su rack possibile (EF007018) | No |
| adatto per funzioni di sicurezza (EF001597) | No |
| SIL secondo IEC 61508 (EF009889) | senza |
| livello di performance secondo EN ISO 13849-1 (EF007399) | senza |
| risorsa corrispondente (Ex ia) (EF004141) | No |
| risorsa corrispondente (Ex ib) (EF004142) | No |
| categoria di protezione antideflagrante per gas (EF003997) | senza |
| categoria di protezione antideflagrante per polvere (EF003998) | senza |
| certificato per area pericolosa UL classe I (EF017622) | No |
| certificato per area pericolosa UL classe II (EF017625) | No |
| certificato per area pericolosa UL classe III (EF017627) | No |
| certificato per area pericolosa UL divisione 1 (EF017628) | No |
| certificato per area pericolosa UL divisione 2 (EF017629) | No |
| certificato per area pericolosa UL gruppo A (acetilene) (EF017632) | No |
| certificato per area pericolosa UL gruppo B (idrogeno) (EF017633) | No |
| certificato per area pericolosa UL gruppo C (etilene) (EF017635) | No |
| certificato per area pericolosa UL gruppo D (propano) (EF017636) | No |
| certificato per area pericolosa UL gruppo E (polvere metallica) (EF017637) | No |
| certificato per area pericolosa UL gruppo F (polvere carboniosa) (EF017638) | No |
| certificato per area pericolosa UL gruppo G (polvere non conduttiva) (EF017639) | No |
| larghezza (EF000008) | 80.3 mm |
| altezza (EF000040) | 16.8 mm |
| profondità (EF000049) | 104.2 mm |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XN-322-16DIO-PC05 Y7-183180 183180 ES_178779.pdf | 3 Mbytes |
|
Recensioni: (0) ▲
Nessun commento per il momento.
Inserisci recensione
nascondi form
| Valutazione: |
|
| Nome: | |
| Email: | |
| Titolo: | |
| Testo: | |
| Mi consiglia questo prodotto da acquistare? | |
|
|
|
| Inserisci recensione | |
Tutti i feedback che riceviamo dagli elementi che offriamo sono reali e verificati. Un piccolo gesto, ma di grande valore. Quindi grazie per quel minuto si spende in noi lasciare il vostro parere e punteggio sui prodotti, perché ci aiuta a continuare a migliorare e di offrire ancora maggiore qualità del servizio.
