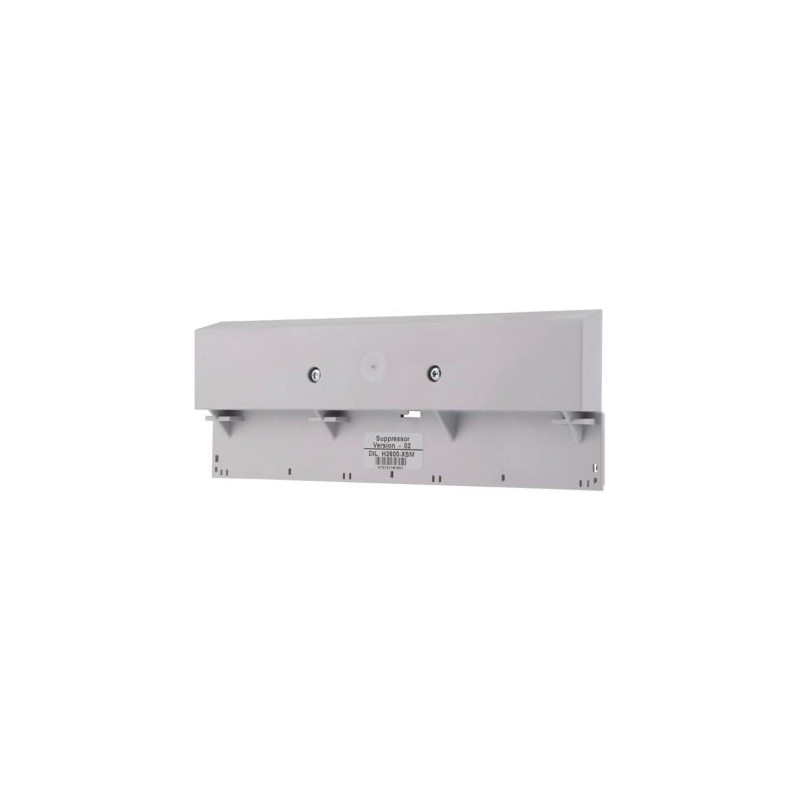

DILH2600-XSM 125946 Y7-125946 EATON ELECTRIC Circuito varistore, per DIL M1600, H2000-H2600 Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

DILH2600-XSM 125946 Y7-125946 EATON ELECTRIC Circuito varistore, per DIL M1600, H2000-H2600

DILH2600-XSM

125946

Y7-125946

EATON-MOELLER

Circuito varistore, per DIL M1600, H2000-H2600

Modulo soppressore varistore per DILM1600 DILH2000... 2600

Eaton Moeller® series DILH Varistor suppressor, for DILM1600, DILH2000-DILH2600

Circuito soppressore a varistore, Accessori: Circuiti soppressori per contattori a vuoto (lato carico), Descrizione: Per smorzare la sovratensione di interruzione durante la disconnessione di carichi induttivi., Utilizzabile con: DILM1600, DILH2000, DILH2200, DILH2600

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Modulo di protezione contro le sovratensioni

Contattori più di 170 A

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $377.73
Prezzo unitario: $377.73
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series DILH varistor suppressor circuit
Catalog Number
125946
EAN
4015081235568
Product Length/Depth
24 mm
Product Height
85 mm
Product Width
230 mm
Product Weight
0.393 kg
Certifications
UL
UL 508
CSA File No.: 165628
UL Category Control No.: NLDX
IEC/EN 60947-4-1
CSA Class No.: C321104
CSA-C22.2 No. 14-05
UL File No.: E29096
CE
CSA
Model Code
DILH2600-XSM

General

Functions
Varistor (voltage-sensitive resistor)
For damping the cutout overvoltage when switching off inductive loads.
Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-40 °C
Ambient operating temperature - max
60 °C

Magnet system

Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
1000 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
1000 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 125946 Apparecchi elettrici a bassa tensione (EC000683)
Caratteristica Valore
funzione (EF000030) varistore
tipo di tensione d'esercizio (EF005294) AC
tensione d'esercizio AC 50 Hz (EF008206) 1177 V
tensione d'esercizio AC 60 Hz (EF008207) 1177 V
con indicatore a LED (EF005950) No

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILH2600-XSM Y7-125946 125946 ES_125946.pdf 815 Kbytes DILH2600-XSM Y7-125946 125946 ES_125946.pdf
