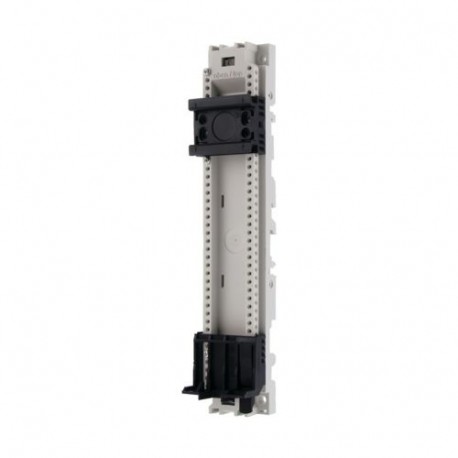

PKZM0-XC45 283132 Y7-283132 EATON ELECTRIC Adattatore per guida DIN, L 45mm Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

PKZM0-XC45 283132 Y7-283132 EATON ELECTRIC Adattatore per guida DIN, L 45mm

PKZM0-XC45

283132

Y7-283132

EATON-MOELLER

Adattatore per guida DIN, L=45mm

Eaton Moeller® series PKZM0 Top-hat rail adapter, B=45mm

Piastra adattatore Top Hat Rail composta da una piastra adattatore larga 45 mm, camma di collegamento per piastre aggiuntive, può essere utilizzata per l'avviamento DOL

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Adattatore per guida DIN

Motor Protective Switches

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $8.87
Prezzo unitario: $8.87
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series PKZM0 Accessory top hat rail adapter plate
Catalog Number
283132
EAN
4015082831325
Product Length/Depth
40 mm
Product Height
230 mm
Product Width
45 mm
Product Weight
0.114 kg
Compliances
CE
Model Code
PKZM0-XC45

Features & Functions

Material
Plastic

General

Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 283132 Apparecchi elettrici a bassa tensione (EC001024)
Caratteristica Valore
tipo di fissaggio (EF002442) guida DIN 35 mm
forma dell'adattatore guide (EF008236) diritto
materiale (EF002169) materiale sintetico

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
PKZM0-XC45 Y7-283132 283132 IT_283132.pdf 110 Kbytes PKZM0-XC45 Y7-283132 283132 IT_283132.pdf
