Visualizza ingrandito

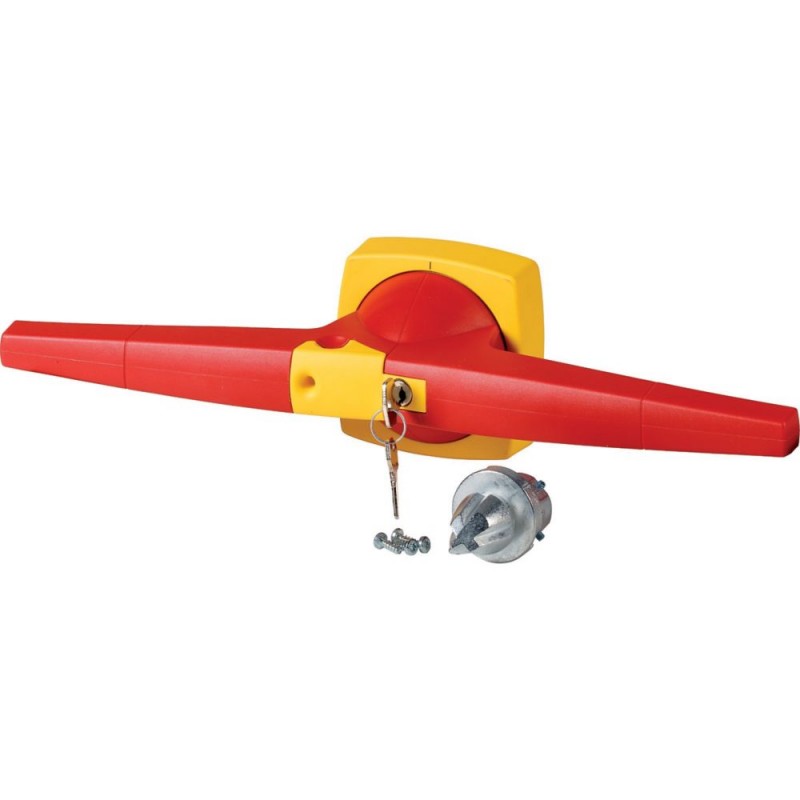

K6DR/C 1818066 EATON ELECTRIC Leva 14 mm K6 montaggio porta rossa/gialla serratura a cilindro
K6DR/C
1818066
EATON-MOELLER
Leva; 14 mm; K6; montaggio porta; rossa/gialla; serratura a cilindro
Telecomando, 14mm, installazione porta, rosso/giallo, serratura a chiave
Eaton K6 Toggle, 14mm, door installation, red/yellow, cylinder lock
apparecchi elettrici a bassa tensione > Maniglia per interruttore di potenza
Disconnettori per interruttori DUMECO
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton K6 Accessory Toggle
Catalog Number
1818066
EAN
8711426955585
Product Length/Depth
50 mm
Product Height
190 mm
Product Width
500 mm
Product Weight
0.795 kg
Compliances
CE
Model Code
K6DR/C
Specifiche del prodotto
Type
Complete rotary handle with door coupling
Features
Lockable
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Key lock
Color
Red
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Switching angle
90 °
Degree of protection
NEMA Other
Suitable for
Switch disconnector
Power circuit breaker
Power circuit breaker
Locking mechanism
Cylinder lock
Shaft diameter
14 x 14 mm
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON INDUSTRIAL SWITCH DISCONNECTORS EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| K6DR/C 1818066 ES_1818097.pdf | 1 Mbytes |
|
