Visualizza ingrandito

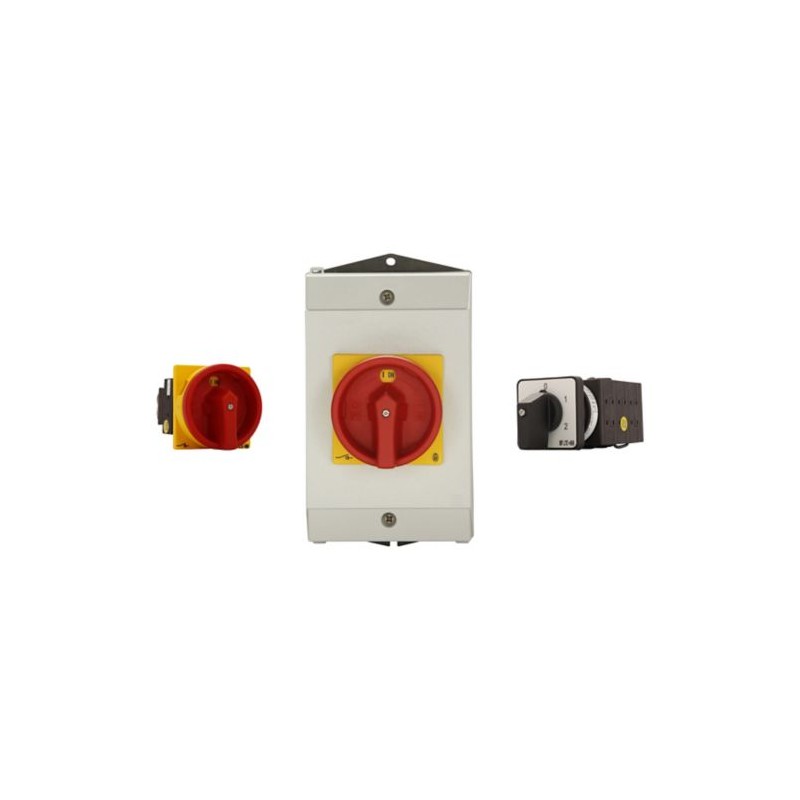

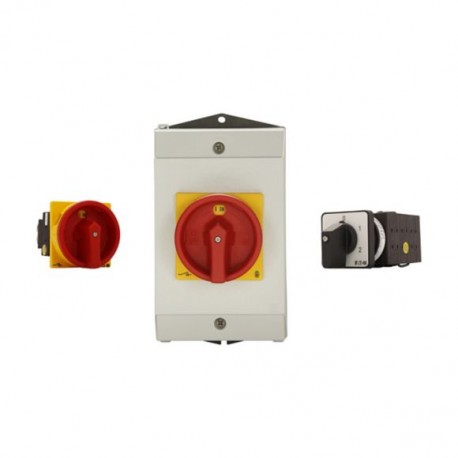

226318 T3-7-64673-SCM/EZ-P1/OFS+9MM+BZ2,9 EATON ELECTRIC interruttore a camme, ovvero: 32A a 440V AC-21
226318
T3-7-64673-SCM/EZ-P1/OFS+9MM+BZ2,9
EATON-MOELLER
interruttore a camme, ovvero: 32A a 440V AC-21
Interruttore speciali di montaggio
Non-standard switch
Sezionatori e interruttori a camme
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Dettagli
▲Non-standard switch
General specifications
Product name
Eaton Moeller® series T3 Non-standard switch
Part no.
T3-7-64673-SCM/EZ-P1/OFS+9MM+BZ2,9
EAN
4015082263188
Product Length/Depth
170 millimetre
Product height
54 millimetre
Product width
61 millimetre
Product weight
0.426 kilogram
Certifications
CSA Certified
UL Listed
UL Listed
Product Tradename
T3
Product Type
Non-standard switch
Product Sub Type
None
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Electrical rating
Rated operational current (Ie) at AC-21, 440 V
32 A
Rated operational voltage (Ue) at AC - min
690 V
Design verification
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
UV resistance only in connection with protective shield.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON SAFE SWITCHING EN.pdf | 928 Kbytes |
|
| 226318 T3-7-64673-SCM/EZ-P1/OFS+9MM+BZ2,9 226318 IT_226318.pdf | 104 Kbytes |
|
